Speed Control Switch C203, C2330a & C2330b

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

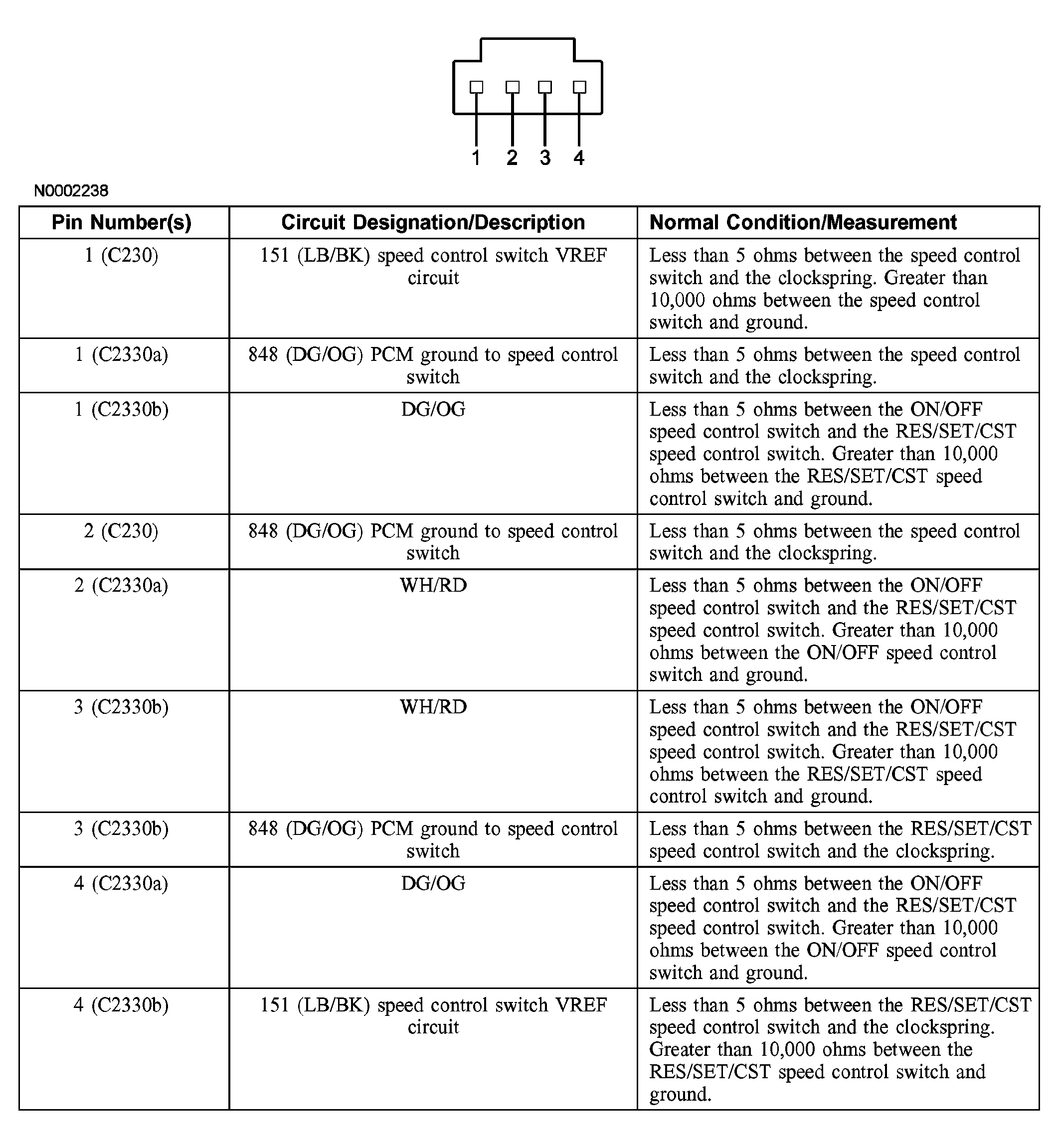

Fig 1: Identifying Speed Control Switch C203 (With Remote Audio Control), Speed Control Switch C2330a (Without Remote Audio Control), Speed Control Switch C2330b (Without Remote Audio Control)
G03965089Courtesy of FORD MOTOR CO.
