Disassembly and Assembly

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Match-mark parts for assembly.

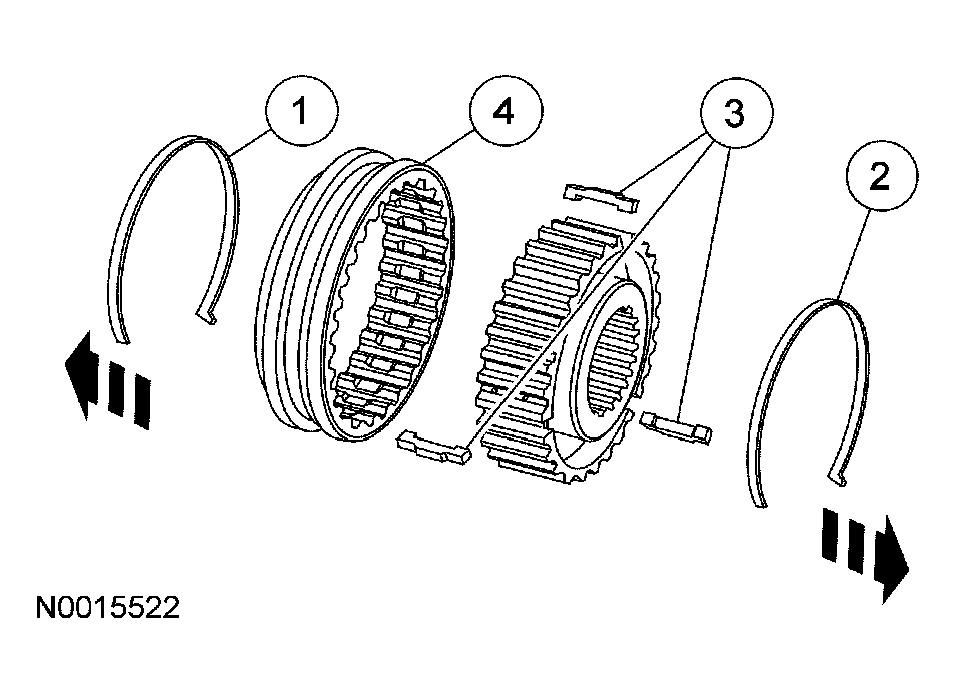

Fig 1: Disassembled View Of Synchronizers

Courtesy of FORD MOTOR CO.

Disassemble the synchronizer.
1. Remove one retaining spring.
2. Flip the synchronizer over and remove the opposite retaining spring.
3. Remove the 3 insert keys.
4. Remove the sleeve.
Inspect all synchronizer components for wear and damage.
To assemble, reverse the disassembly procedure.
