Reverse Idler Gear: Disassembly

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

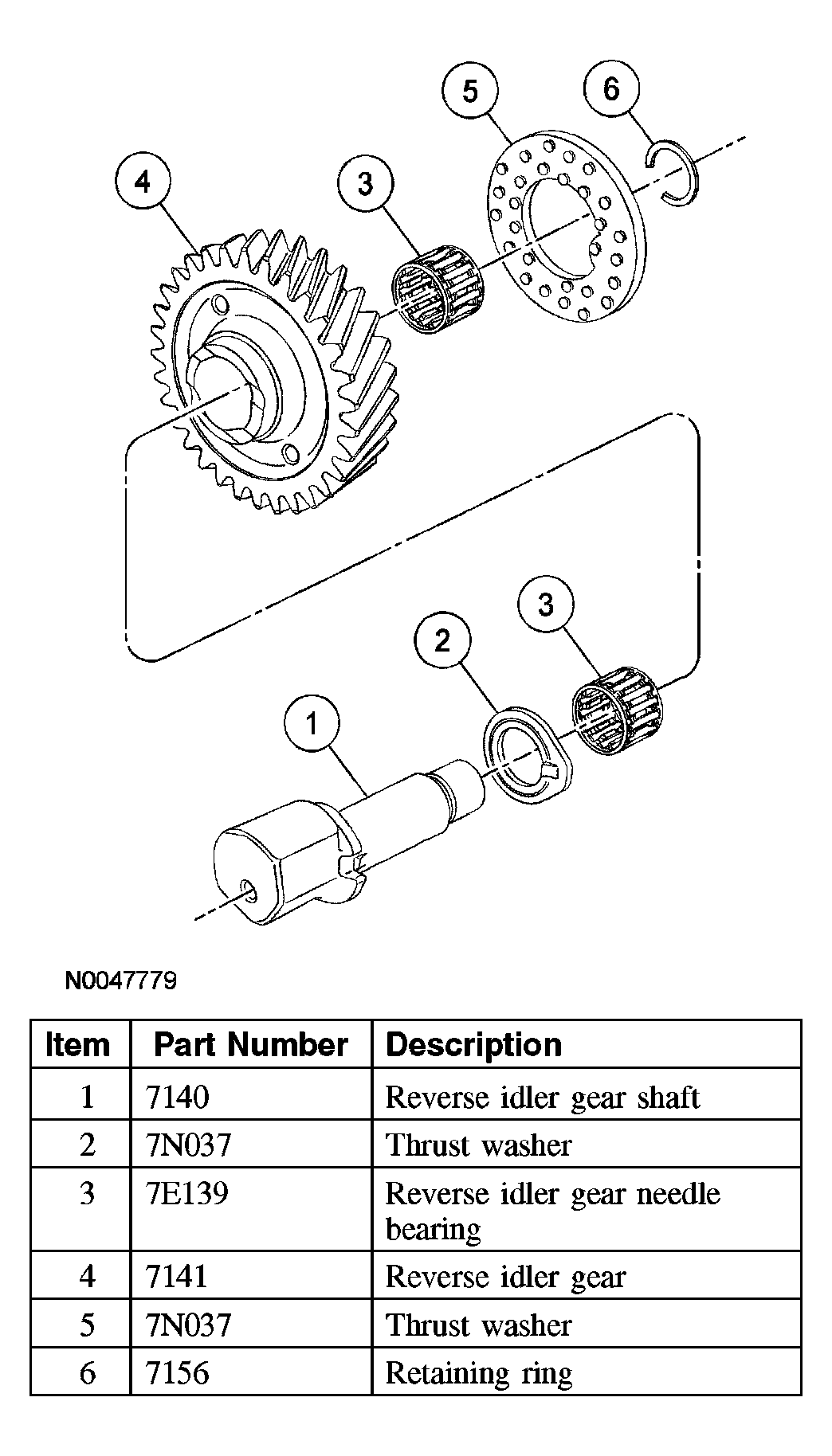

Fig 1: Disassembled View Of Reverse Idler Gear

Courtesy of FORD MOTOR CO.

Disassemble the reverse idler gear as follows:
- Retaining ring
- Thrust washer
- Reverse idler gear
- Two reverse idler gear needle bearings
- Thrust washer
Inspect all reverse idler gear components for wear or damage. Install new components as necessary.
