Input Shaft Bearing: Disassembly

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and discard the fluid scoop ring.
    Fig 1: Removing Fluid Scoop Ring
    G03964671Courtesy of FORD MOTOR CO.
    2. CAUTION: Use of essential tools may cause damage to the bearings being removed.
    CAUTION: Hold the input shaft so it does not fall.

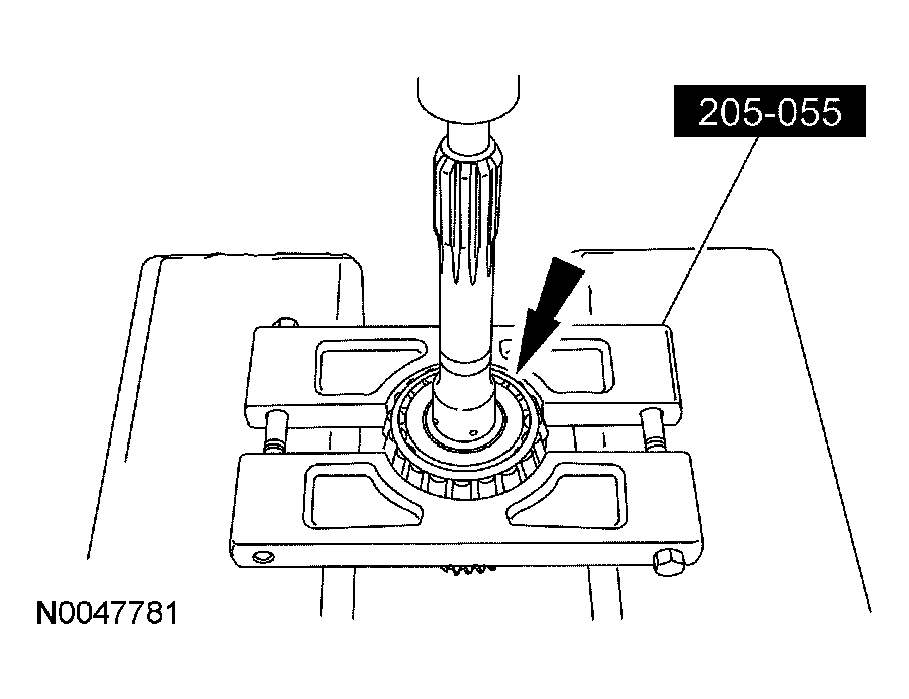

    Fig 2: Using Special Tool To Press Input Shaft Bearing Off Input Shaft
    G03964672Courtesy of FORD MOTOR CO.
  2. Using the special tool, press the input shaft bearing off the input shaft. Discard the bearing.
    • Install a new bearing and cup. Install as a set only. Do not install one without the other.
    • Inspect the input shaft for wear or damage. Install a new gear as necessary.
