Transmission Internal Components - Countershaft and Reverse Idler Gear

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

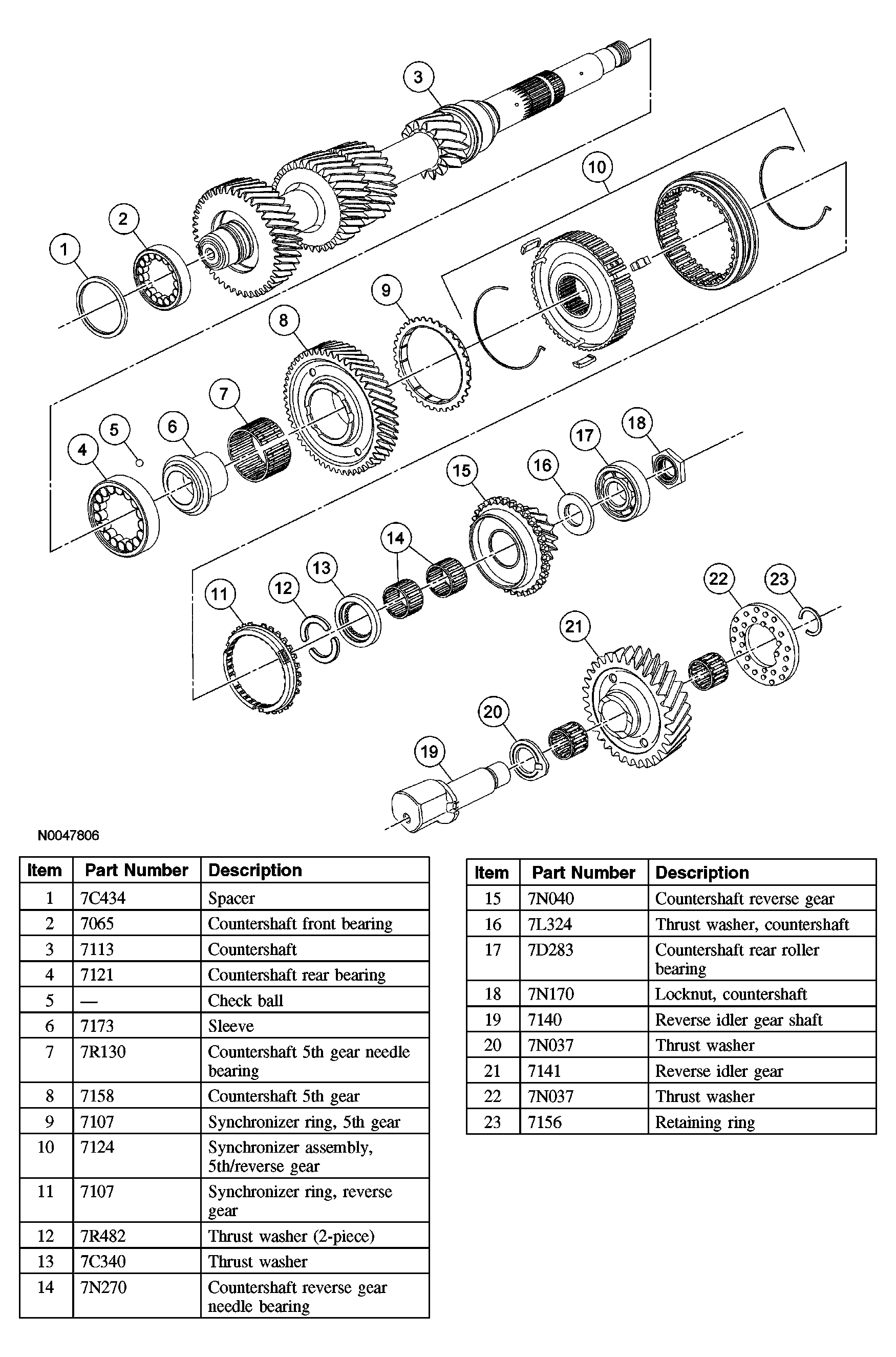

Fig 1: Exploded View Of Transmission Internal Components - Countershaft And Reverse Idler Gear
G03964565Courtesy of FORD MOTOR CO.
