Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pry upward on consulate to release it from the floor clips.

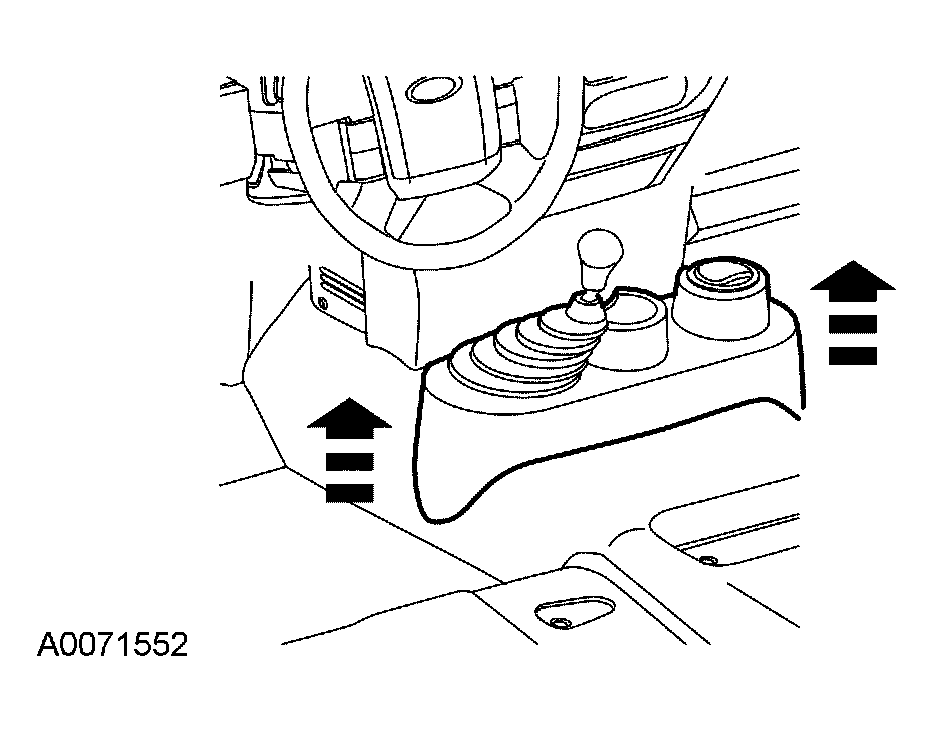

    Fig 1: Prying Upward On Consulate
    G03964828Courtesy of FORD MOTOR CO.
  2. Remove the transfer case shift lever.
    1. Remove the shift lever boot screws.
      • To install, tighten to 12 Nm (9 lb-ft).
    2. Remove the shift lever cover.
    3. Remove the bolt.
      • To install, tighten to 24 Nm (18 lb-ft).
    4. Remove the shift lever.

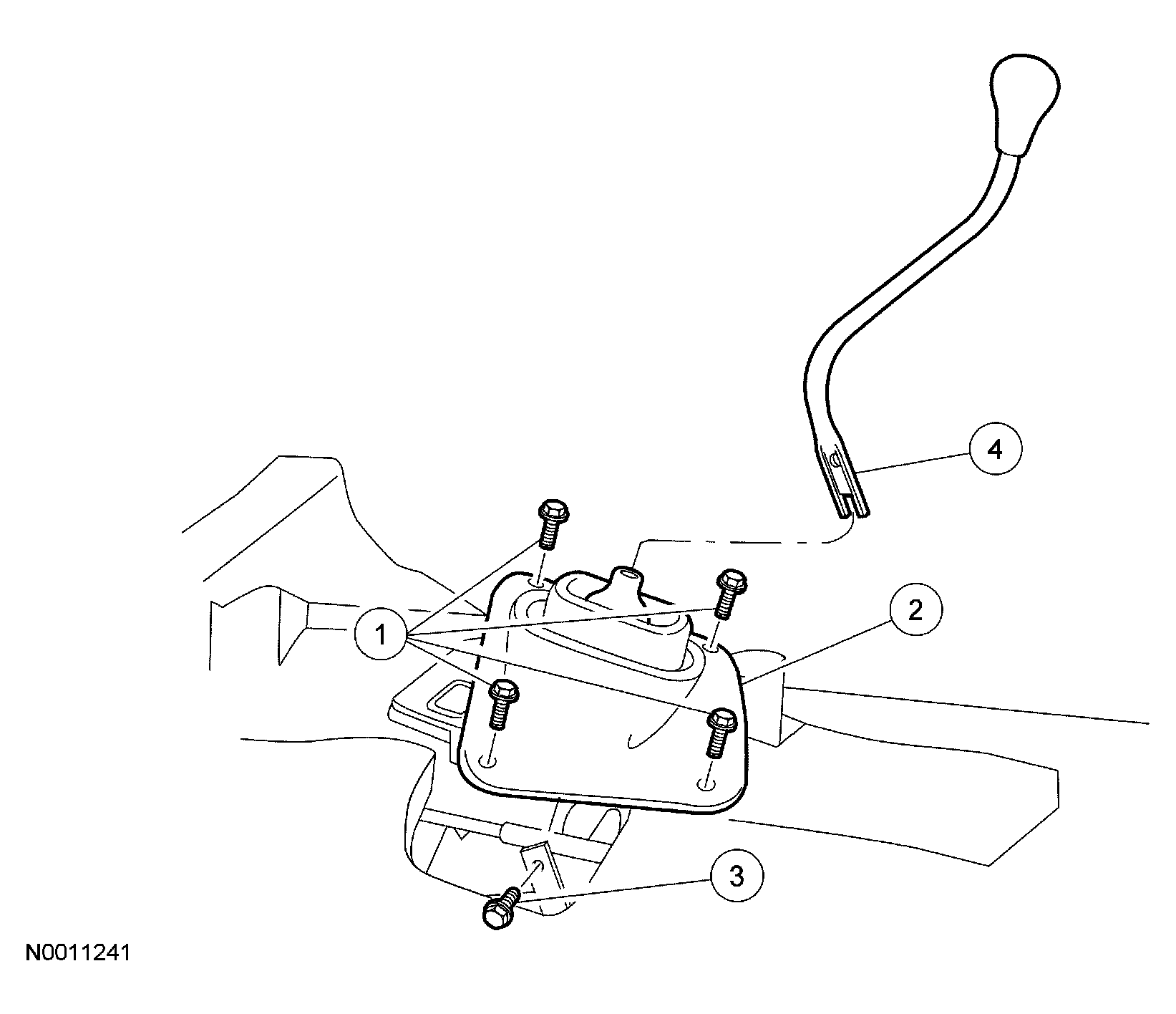

    Fig 2: Removing Transfer Case Shift Lever
    G03964829Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
