Transfer Case - Electronic Shift: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS

G03960920
 Remover, Bearing Cup 308-047 (T77F-1102-A)
G03964834
 Installer, Bearing Cup 308-017 (T73T-4222-B)
G03913043
 Remover, S tat or Bearing 307-318 (T94P-77001-KH)
G03964836
 Adapter for 303-224 (Handle) 205-153 (T80T-4000-W)
G03964837
 Holding Fixture, Transmission 307-003 (T57L-500-B)
G03964838
 Slide Hammer 100-001 (T50T-100-A)
G03964921
 Installer, Input Shaft Oil Seal 308-186 (T90T-7127-B)
G03995165
 Universal Blind Hole Puller Set 303 DS005 (D80L-100-A)
G03964924
 Installer, Mainshaft Bearing 308-060 (T77J-7025-K)
G03964842
 Installer, Input Shaft Bearing 308-085 (T83T-7025-C)
G03964843
 Installer, Input Shaft Oil Seal 308-249 (T96T-7127-A)
G03964844
 Protector, Shaft Oil Seal 308-251 (T96T-7127-C)
G03964844
 Remover, Oil Seal 303-409 (T92C-6700-CH)
G03934073
 Installer, Valve Stem Oil Seal 303-367 (T90P-6510-AH)
MATERIAL REFERENCE

Item Specification
Black Non-Acid Cure Silicone Rubber E7TZ-19562-A ESL-M4G273-A
MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX MERCON®

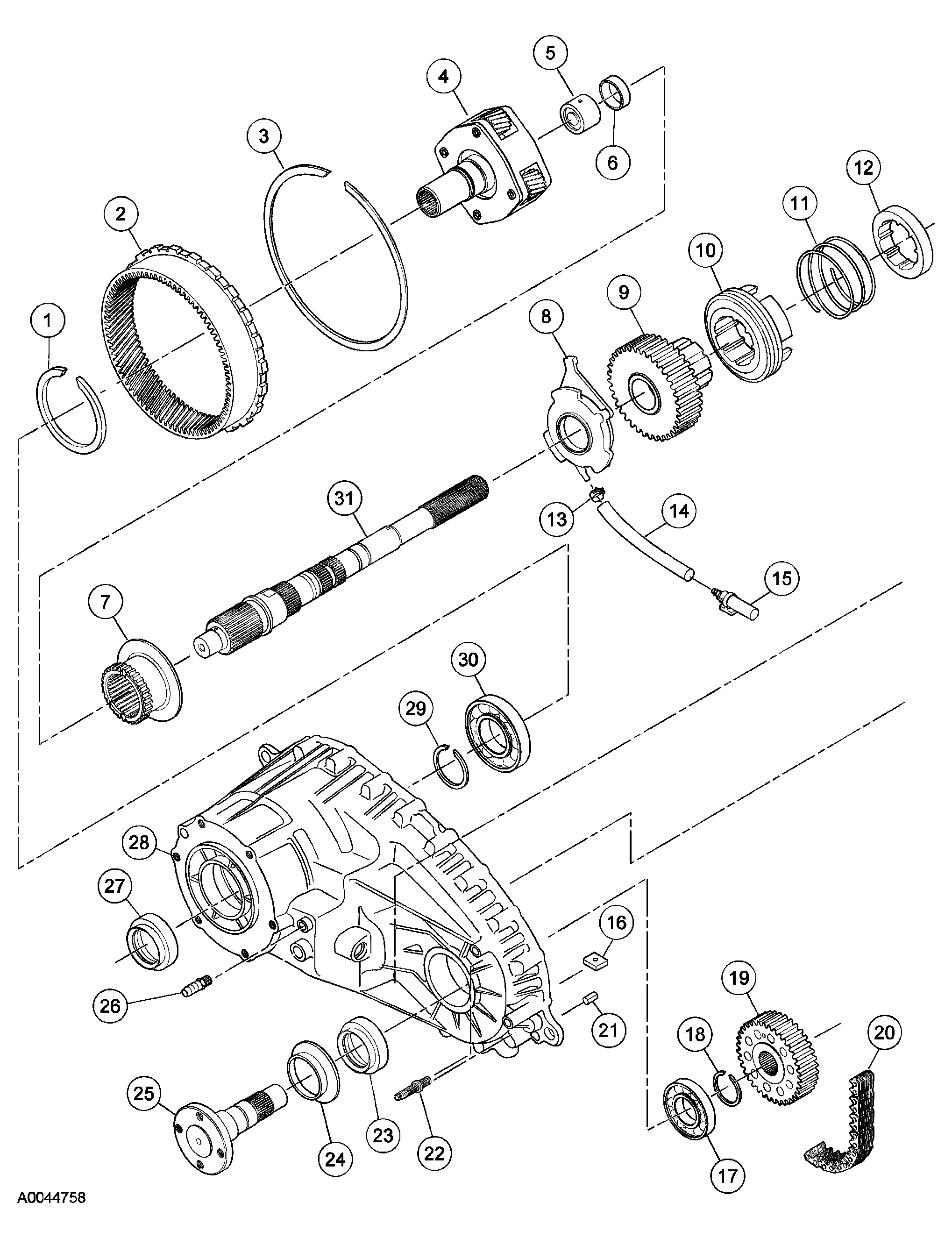

Fig 1: Exploded View Of Transfer Case Electronic Shift (1 Of 3)
G03964847Courtesy of FORD MOTOR CO.

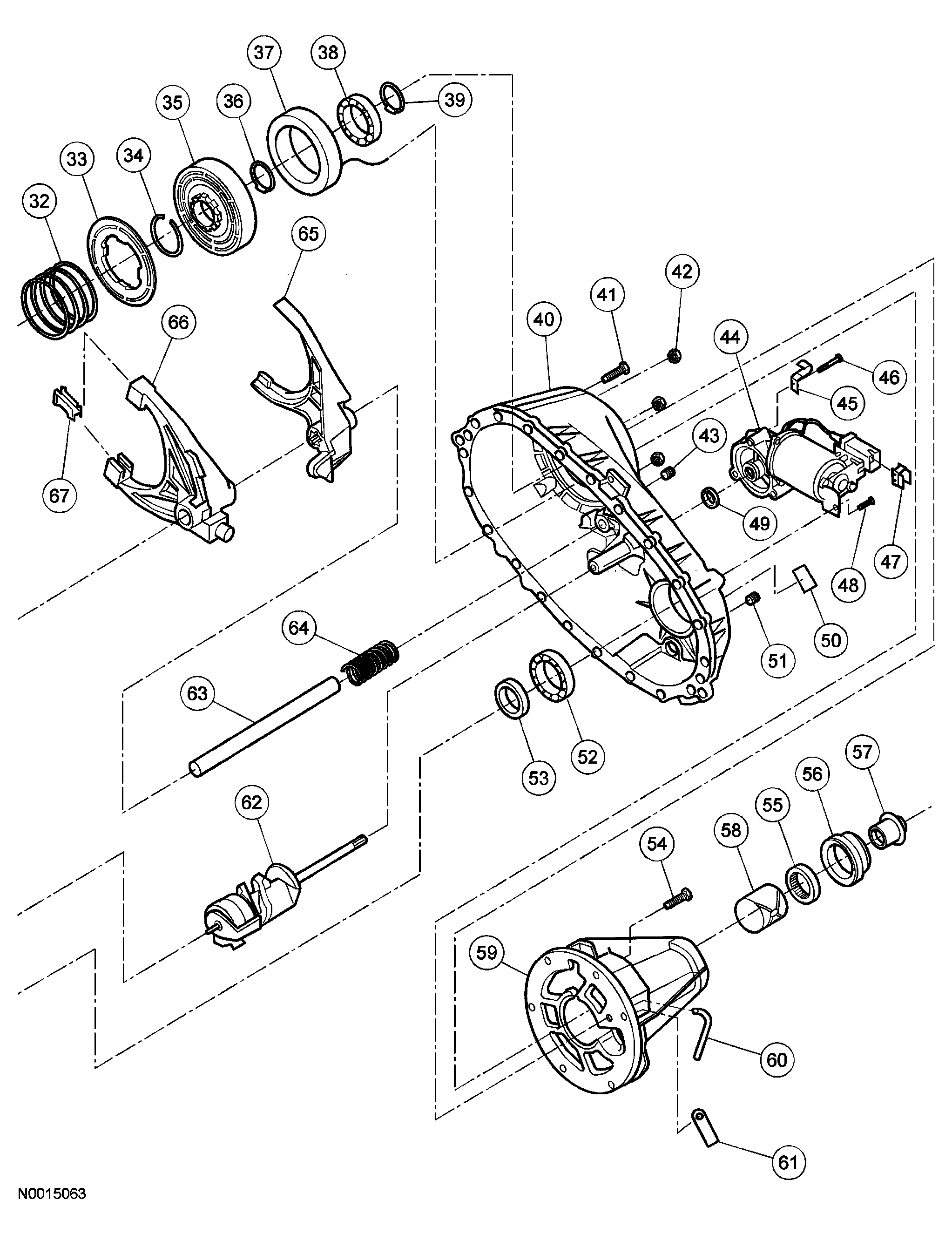

Fig 2: Exploded View Of Transfer Case Electronic Shift (2 Of 3)
G03964848Courtesy of FORD MOTOR CO.

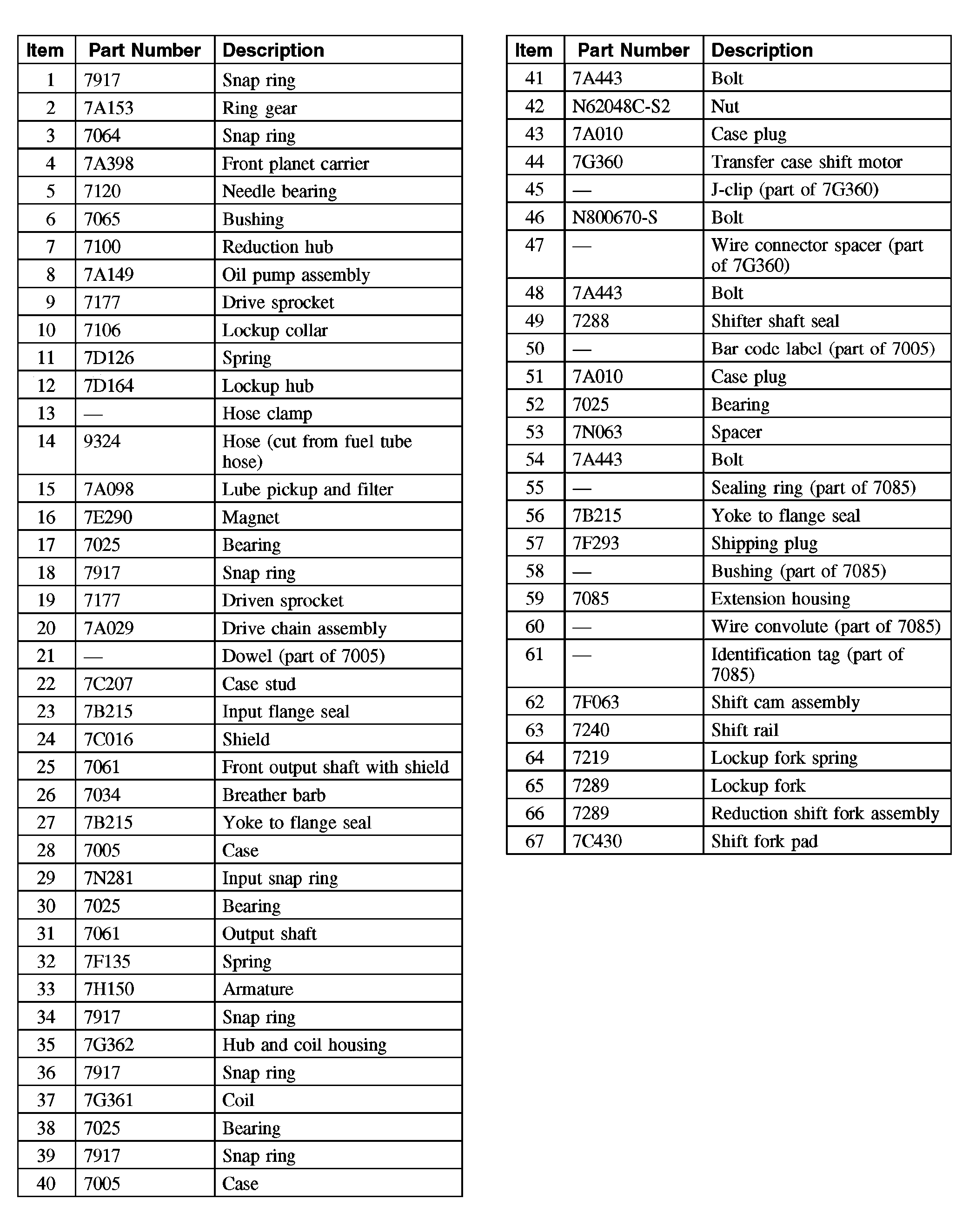

Fig 3: Exploded View Of Transfer Case Electronic Shift (3 Of 3)
G03964849Courtesy of FORD MOTOR CO.
