Transmission Fluid Cooler Tubes: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Without auxiliary fluid cooler

Install the fluid cooler tube(s).
- Tighten to 27 Nm (20 lb-ft).

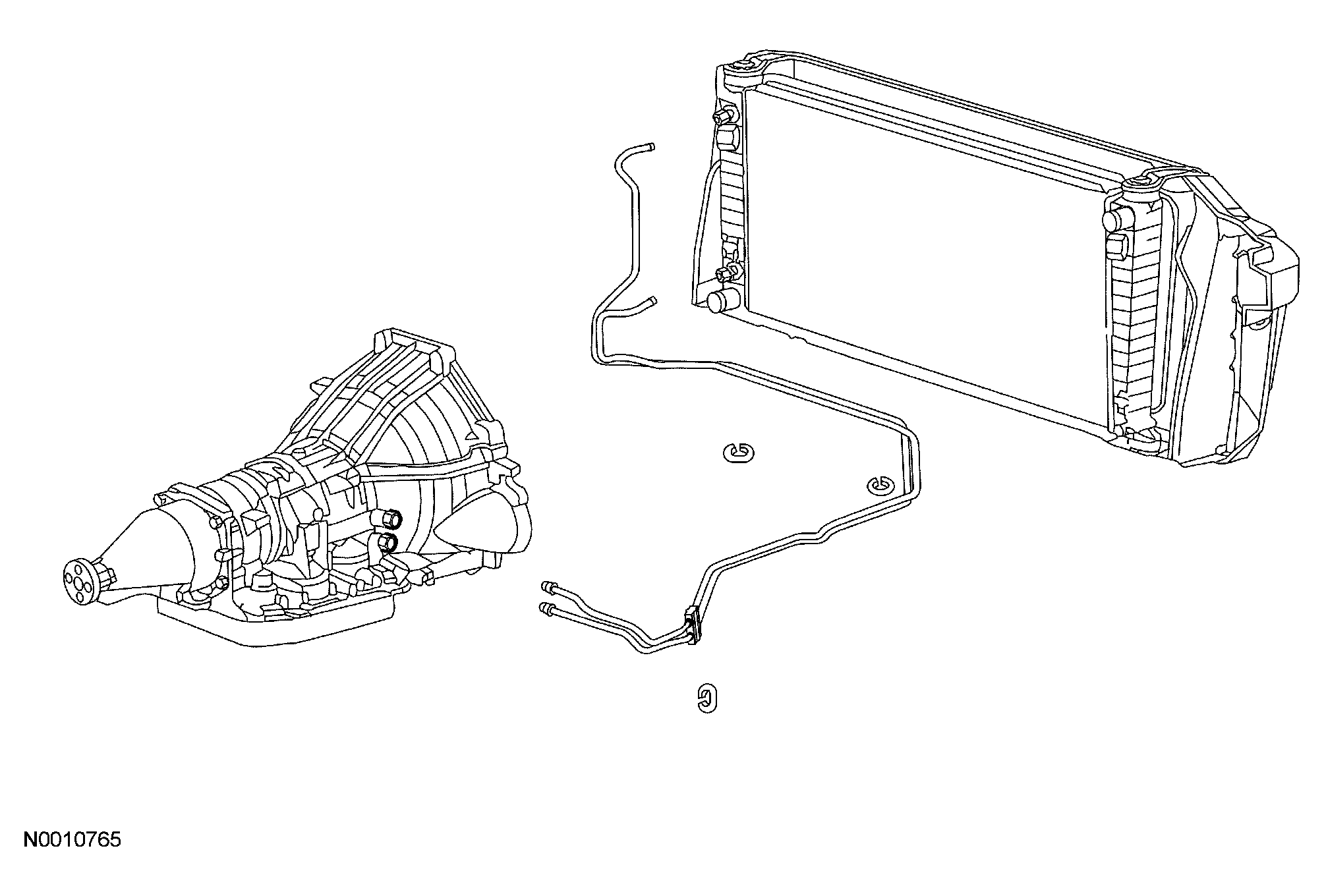

Fig 1: Installing Fluid Cooler Tube(s) - Without Auxiliary Fluid Cooler
Courtesy of FORD MOTOR CO.

With auxiliary fluid cooler

Install the fluid cooler tube(s).
- Tighten to 27 Nm (20 lb-ft).

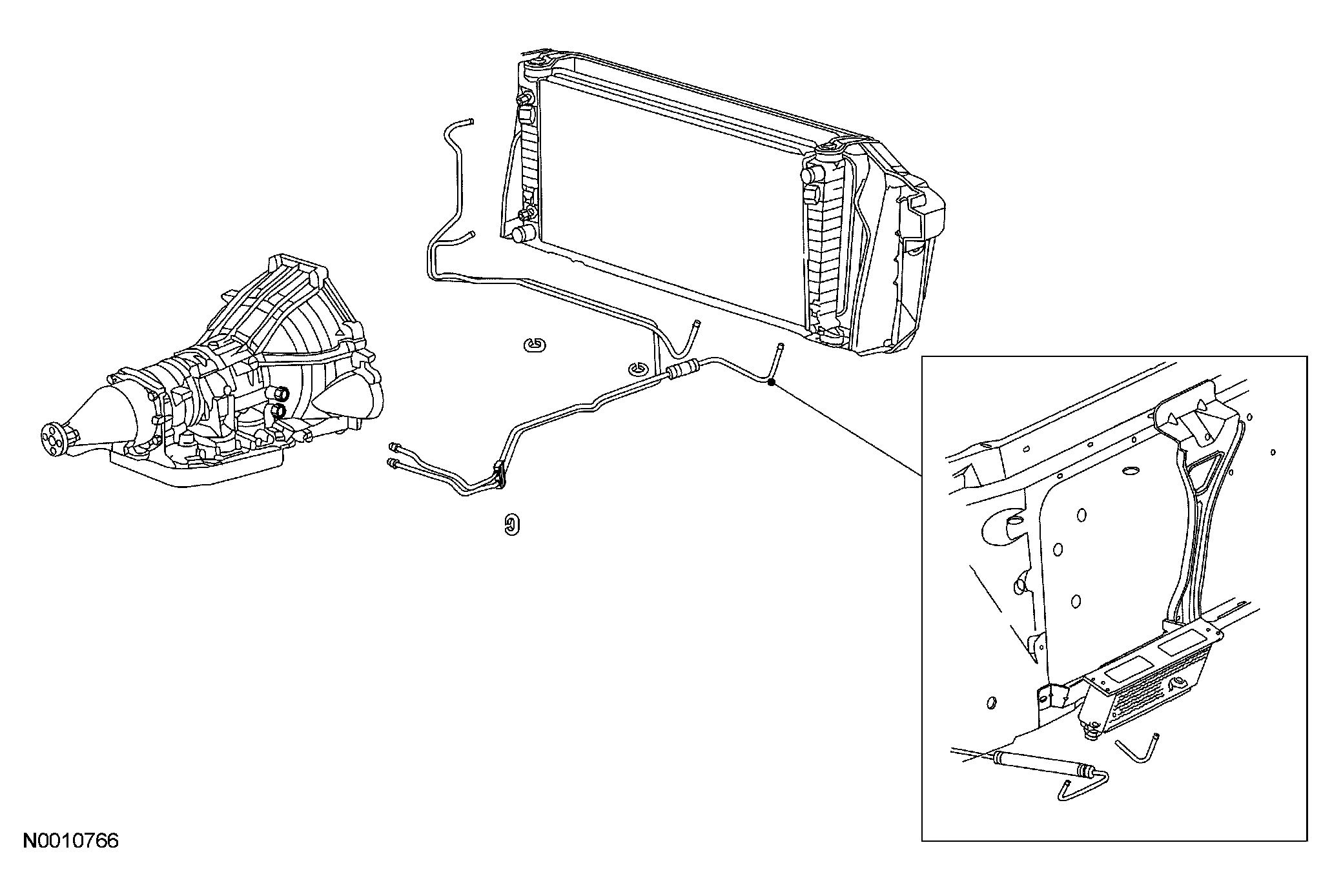

Fig 2: Installing Fluid Cooler Tube - With Auxiliary Fluid Cooler
Courtesy of FORD MOTOR CO.
Position the air deflector and install the fasteners.

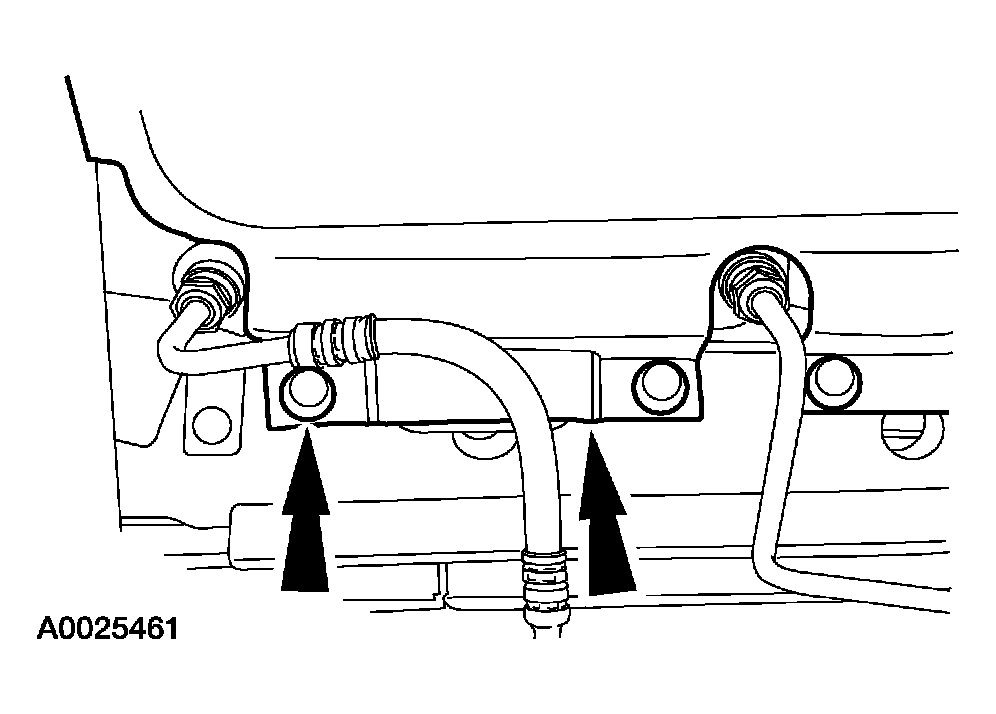

Fig 3: Installing Air Deflector Fasteners
Courtesy of FORD MOTOR CO.
Position the skid plate and install the bolts (4x4 vehicles).
- Tighten to 15 Nm (11 lb-ft).

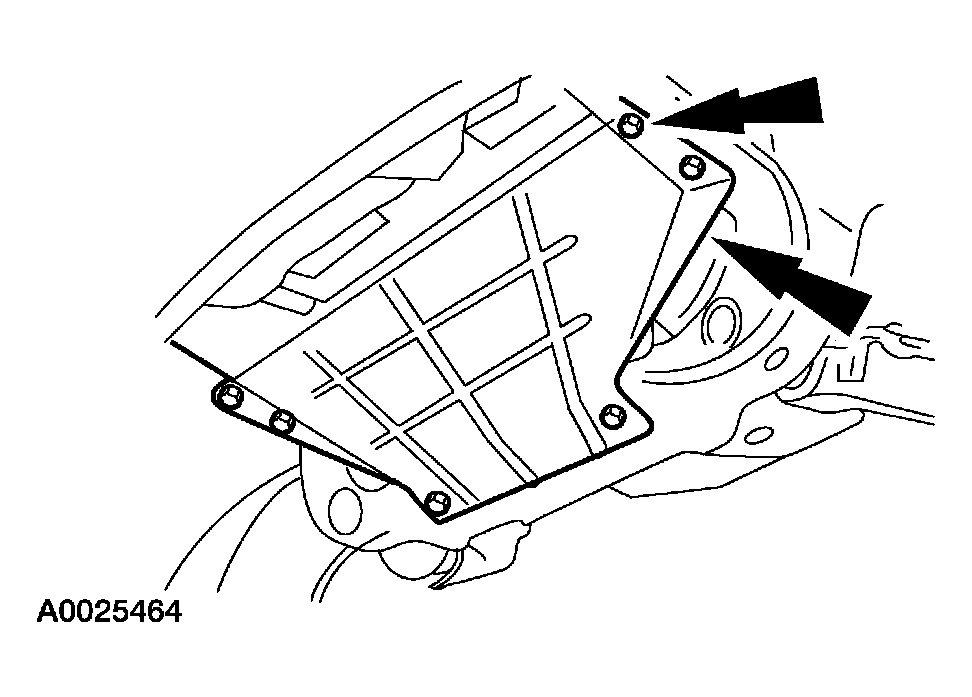

Fig 4: Installing Skid Plate And Bolts
Courtesy of FORD MOTOR CO.

All vehicles

Fill the transmission with clean automatic transmission fluid specified for this transmission.
Check for leaks.
