Transmission Cooling
WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

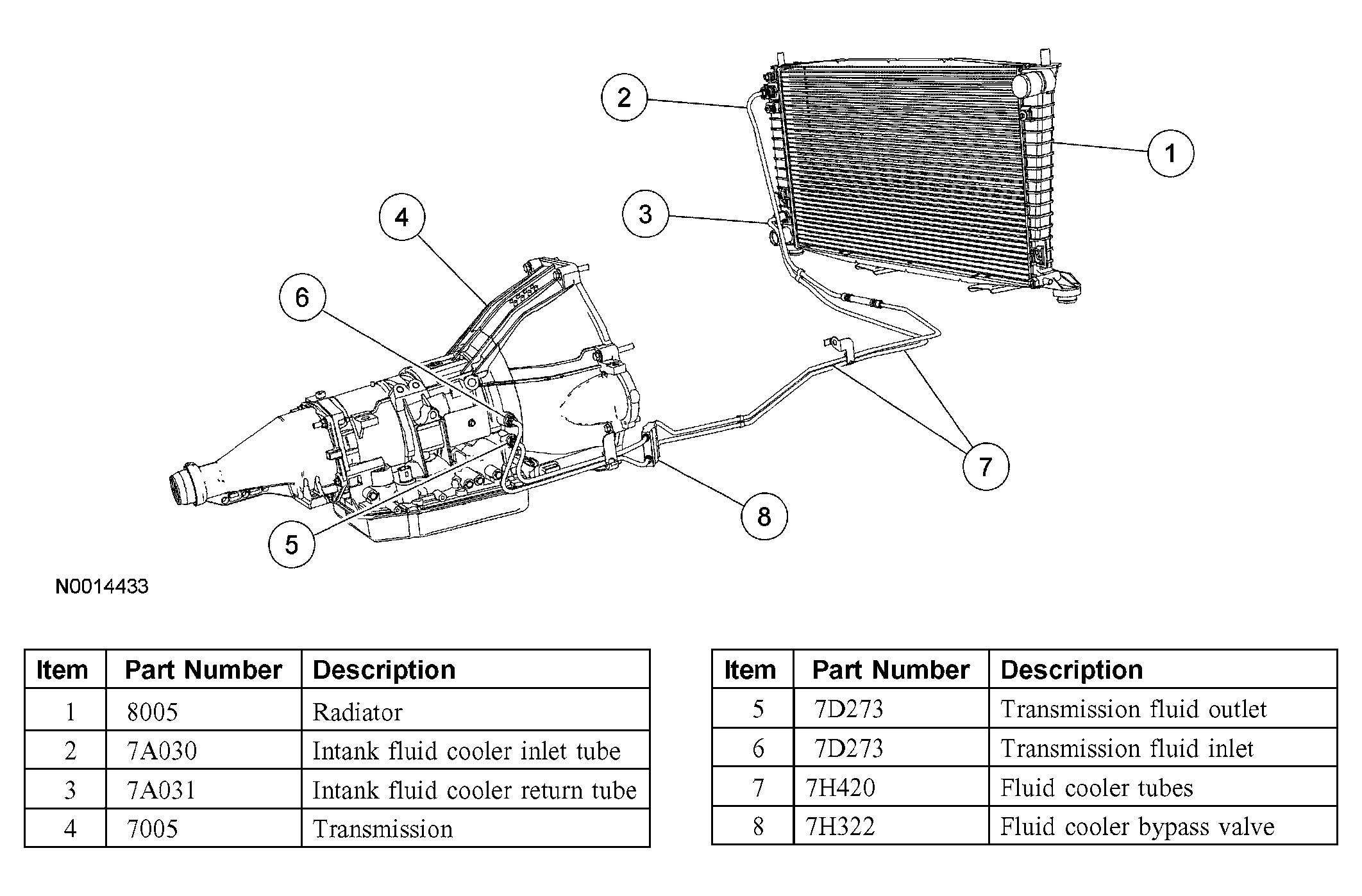

The transmission fluid cooling system, without an auxiliary transmission fluid cooler, consists of the following:
- An intake fluid cooler inlet tube
- A non-repairable intake transmission fluid cooler
- An intake fluid cooler return tube

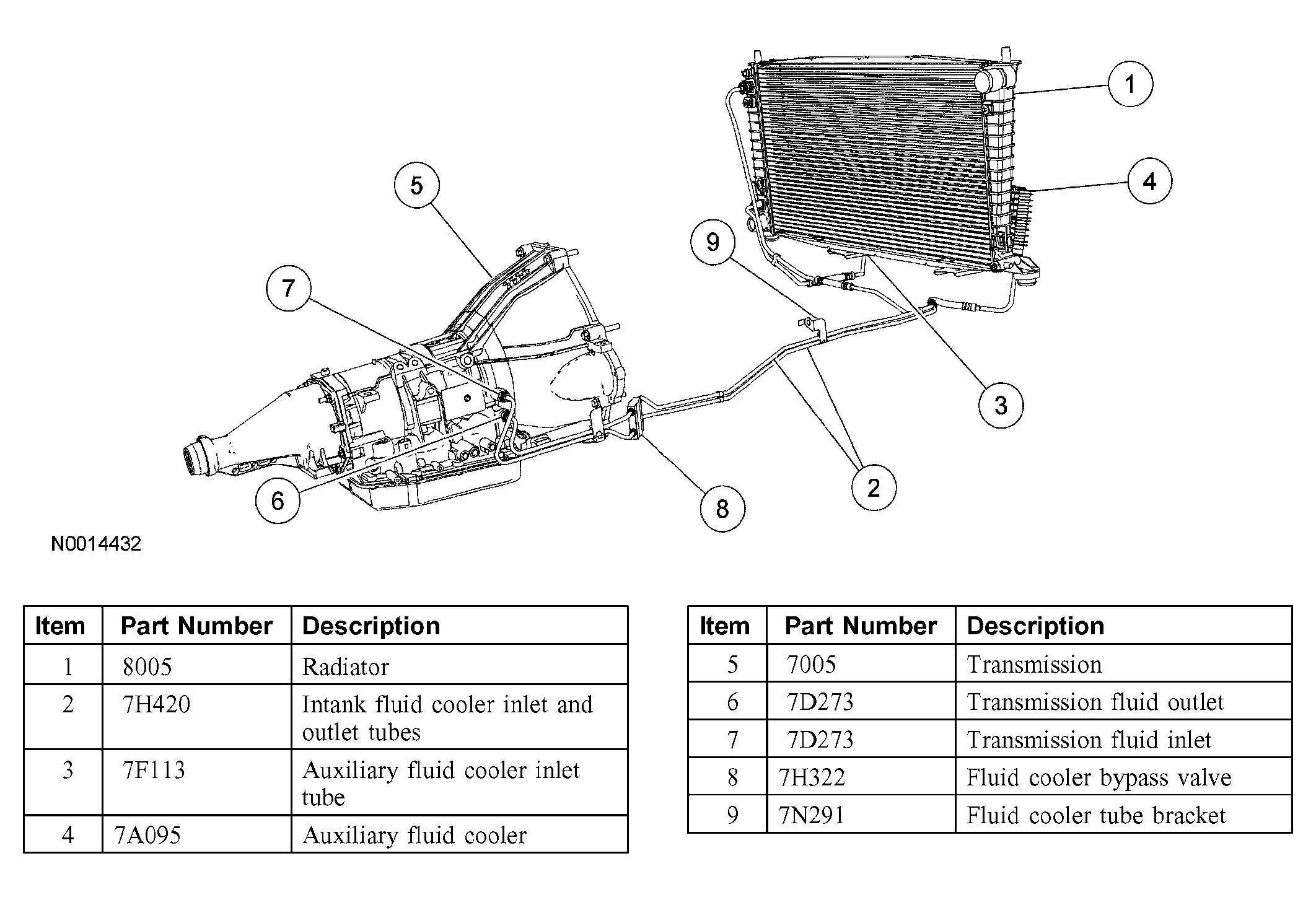

The transmission fluid cooling system, with an auxiliary transmission fluid cooler, consists of the following:
- An intake fluid cooler inlet tube
- A non-repairable intake transmission fluid cooler
- An auxiliary fluid cooler inlet tube
- An auxiliary transmission fluid cooler
- An auxiliary fluid cooler return tube
The transmission fluid flows from the transmission bottom fitting for the intake transmission fluid cooler, to the auxiliary transmission fluid cooler, if so equipped, and returns to the transmission top fitting.
For fluid cooler flow testing, and backflushing and cleaning procedures, refer to TRANSMISSION FLUID COOLER - BACKFLUSHING AND CLEANING .
