Transmission Selector Lever - Column Shift: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Position the shift lever in the steering column and install the screw.
- Tighten to 20 Nm (15 lb-ft).

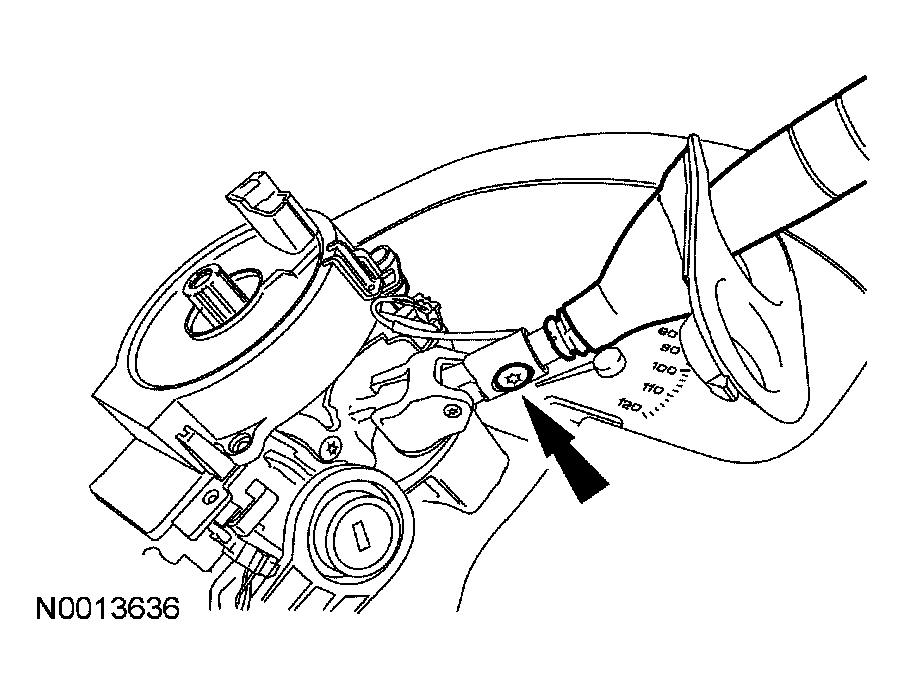

Fig 1: Positioning Shift Lever In Steering Column And Installing Screw
Courtesy of FORD MOTOR CO.

CAUTION: Route the overdrive cancel switch wire harness carefully to prevent damage to the wire harness.

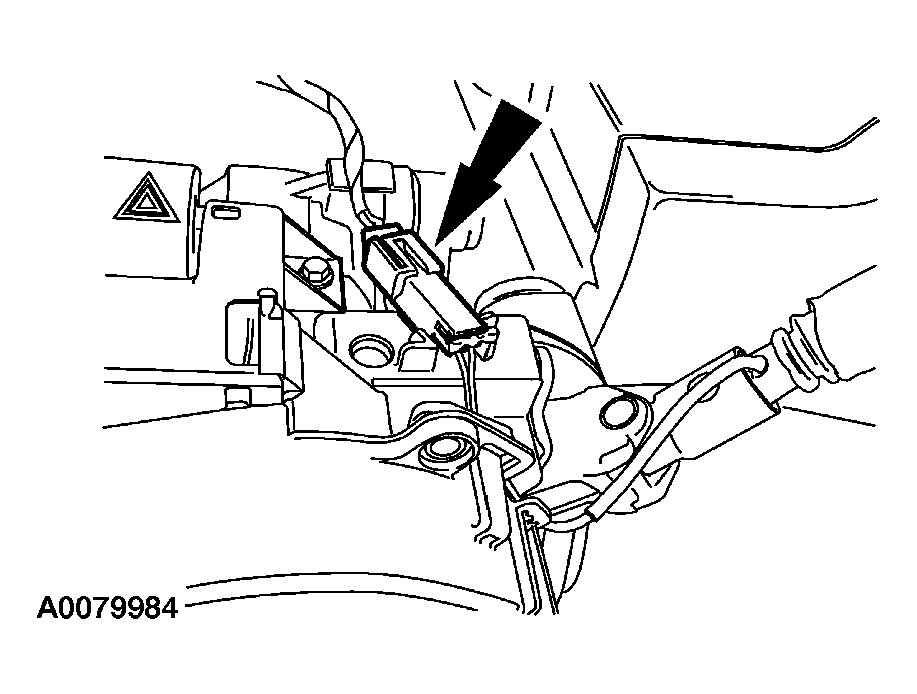

Fig 2: Connecting Overdrive Cancel Switch Electrical Connector

Courtesy of FORD MOTOR CO.

Connect the overdrive cancel switch electrical connector.
Position the upper steering column shroud and install the 2 screws.

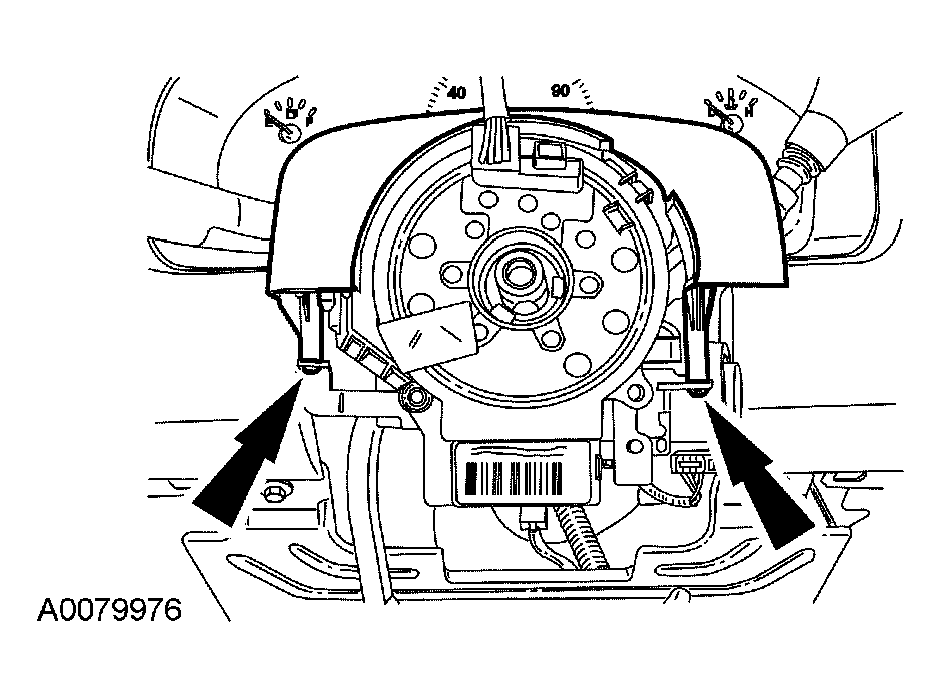

Fig 3: Positioning Upper Steering Column Shroud And Installing Screws
Courtesy of FORD MOTOR CO.
Position the lower steering column shroud and install the screw.

Fig 4: Positioning Lower Steering Column Shroud And Installing Screw
Courtesy of FORD MOTOR CO.
Install the steering wheel. For additional information, refer to STEERING COLUMN .
