Selector Lever Cable - Column Shift: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

NOTE: 4.6/5.4L shown, 4.2L similar.

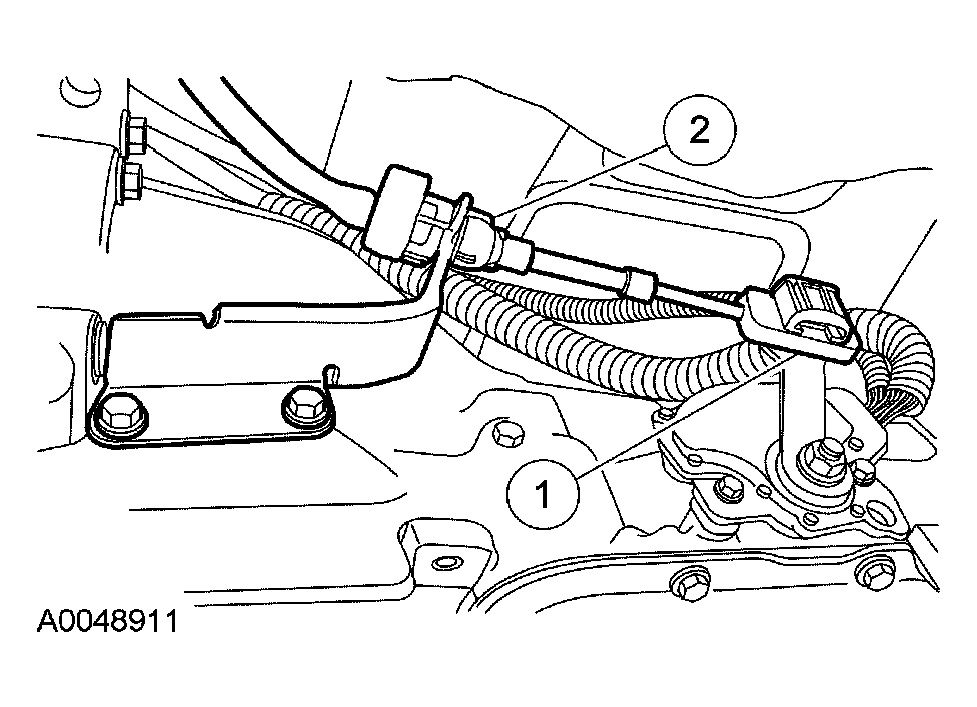

Fig 1: Disconnecting Shift Cable From Transmission

Courtesy of FORD MOTOR CO.

Disconnect the shift cable from the transmission.
1. Disconnect the cable from the manual lever.
2. Disconnect the cable from the cable bracket.
Remove the selector lever cable from the routing clip.

Fig 2: Removing Selector Lever Cable From Routing Clip
Courtesy of FORD MOTOR CO.
Remove the 2 screws and the lower dash panel.

Fig 3: Removing Screws And Lower Dash Panel
Courtesy of FORD MOTOR CO.
Disconnect the shift cable from the steering column.
1. Disconnect the shift cable from the transmission selector lever arm and support.
2. Disconnect the shift cable from the steering column bracket.
3. Remove and discard the shift cable retainer.

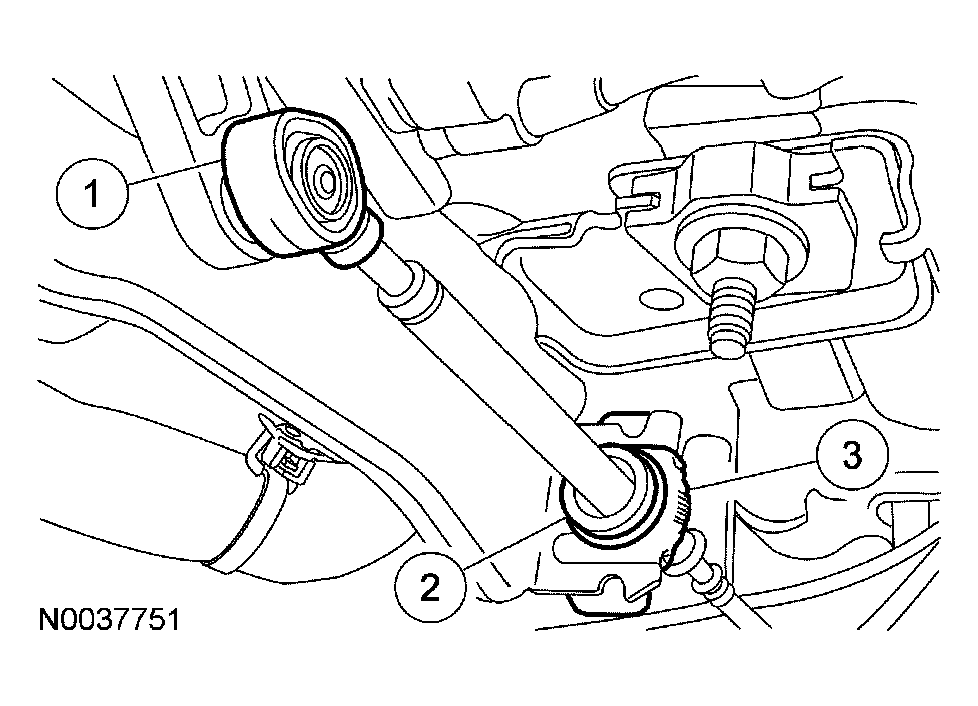

Fig 4: Disconnecting Shift Cable From Steering Column
Courtesy of FORD MOTOR CO.
Use a suitable tool to push the rubber grommet through the bulkhead.
From the passenger compartment, remove the shift cable from the vehicle.
