Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the steering wheel. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
  3. Remove the 2 screws and the lower dash panel.
    Fig 1: Removing Screws And Lower Dash Panel
    G03964450Courtesy of FORD MOTOR CO.
  4. Remove the screw and the lower steering column shroud.
    Fig 2: Removing Screw And Lower Steering Column Shroud
    G03964451Courtesy of FORD MOTOR CO.
  5. Remove the 2 screws and the upper steering column shroud.
    Fig 3: Removing Screws And Upper Steering Column Shroud
    G03964452Courtesy of FORD MOTOR CO.

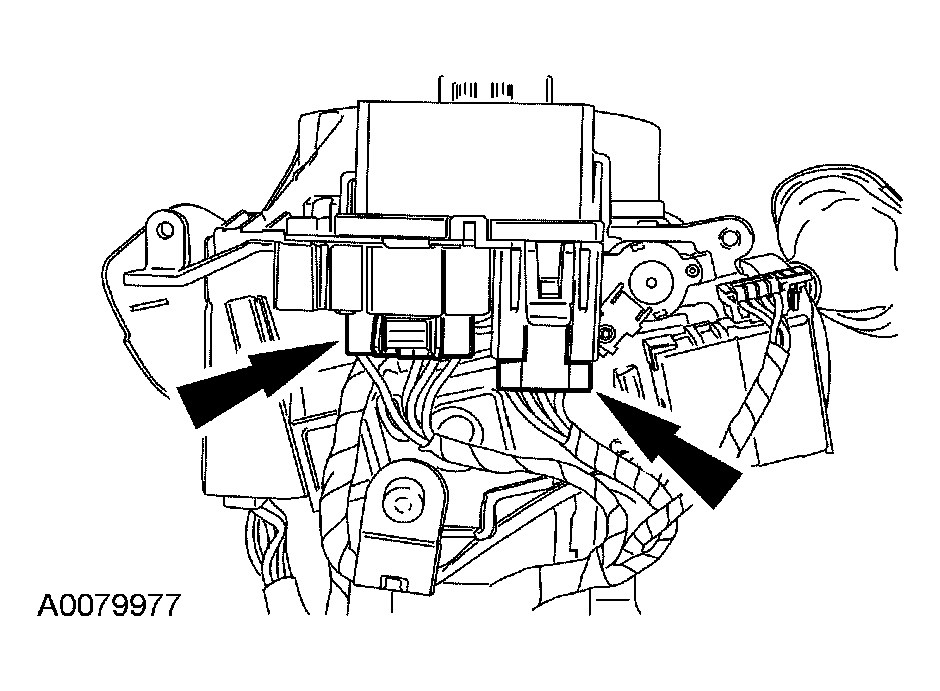

  6. Disconnect the clockspring electrical connectors.
    Fig 4: Disconnecting Clockspring Electrical Connectors
    G03964453Courtesy of FORD MOTOR CO.

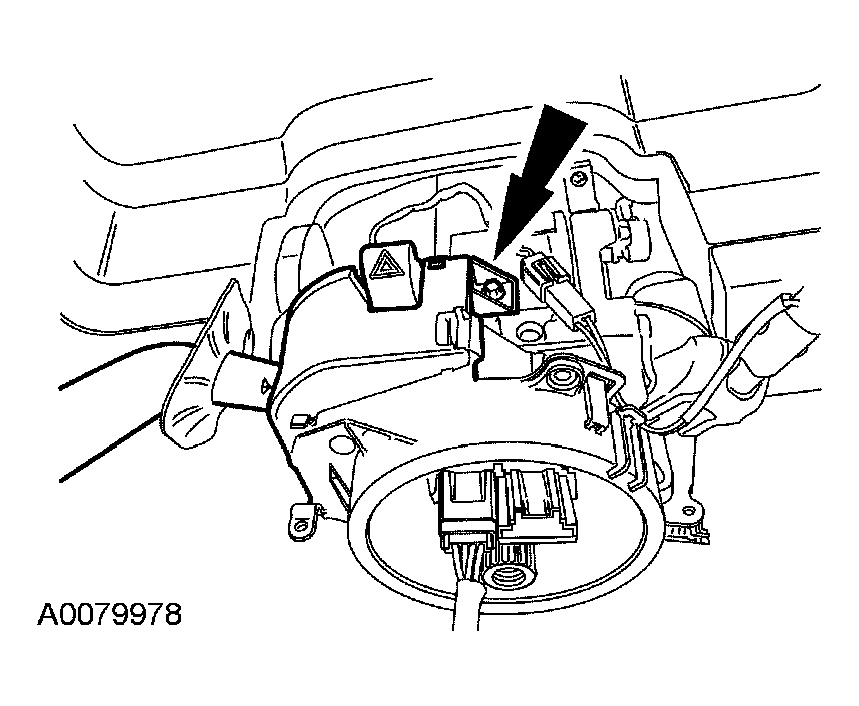

  7. Remove the screw and slide the multi-function switch up and position it aside.
    Fig 5: Removing Screw And Sliding Multi-Function Switch Up
    G03964454Courtesy of FORD MOTOR CO.

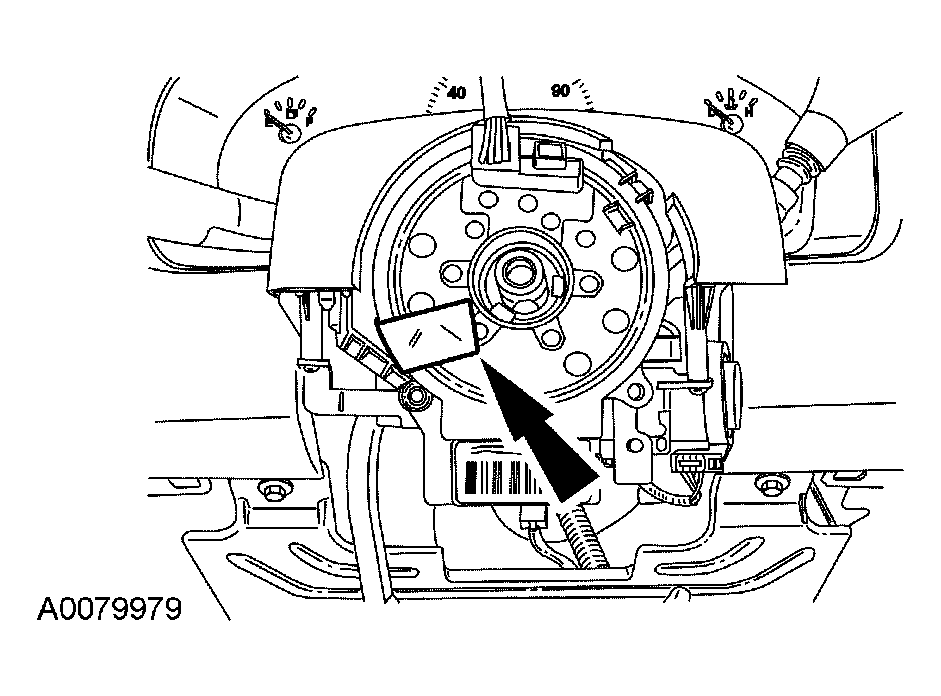

  8. Place a piece of tape on the clockspring to prevent it from rotating.
    Fig 6: Placing Piece Of Tape On Clockspring
    G03964455Courtesy of FORD MOTOR CO.

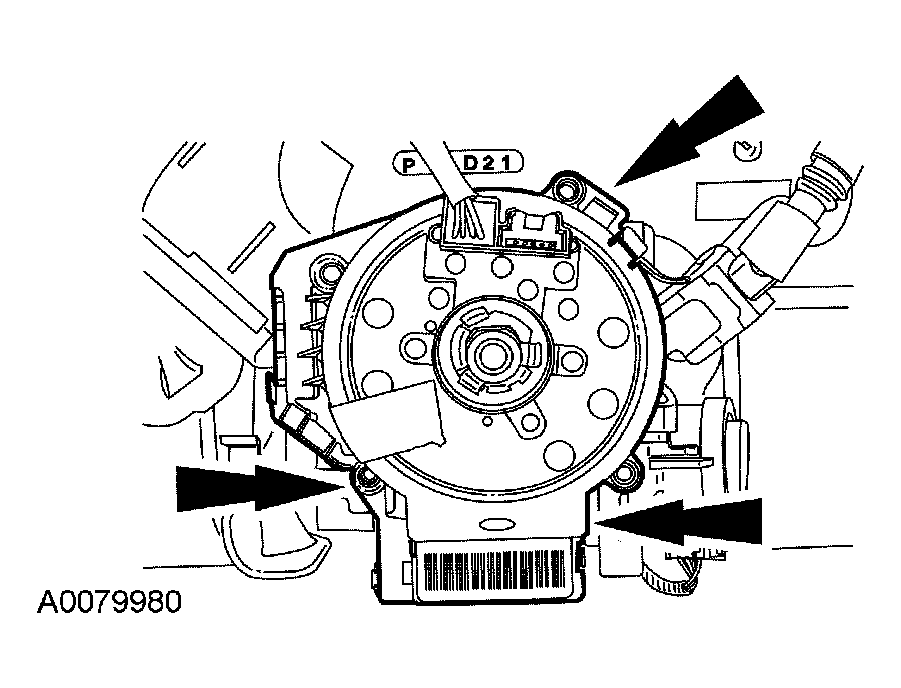

  9. Press the 3 tabs on the clockspring and slide the clockspring off.
    Fig 7: Pressing Tabs On Clockspring And Sliding Clockspring Off
    G03964456Courtesy of FORD MOTOR CO.

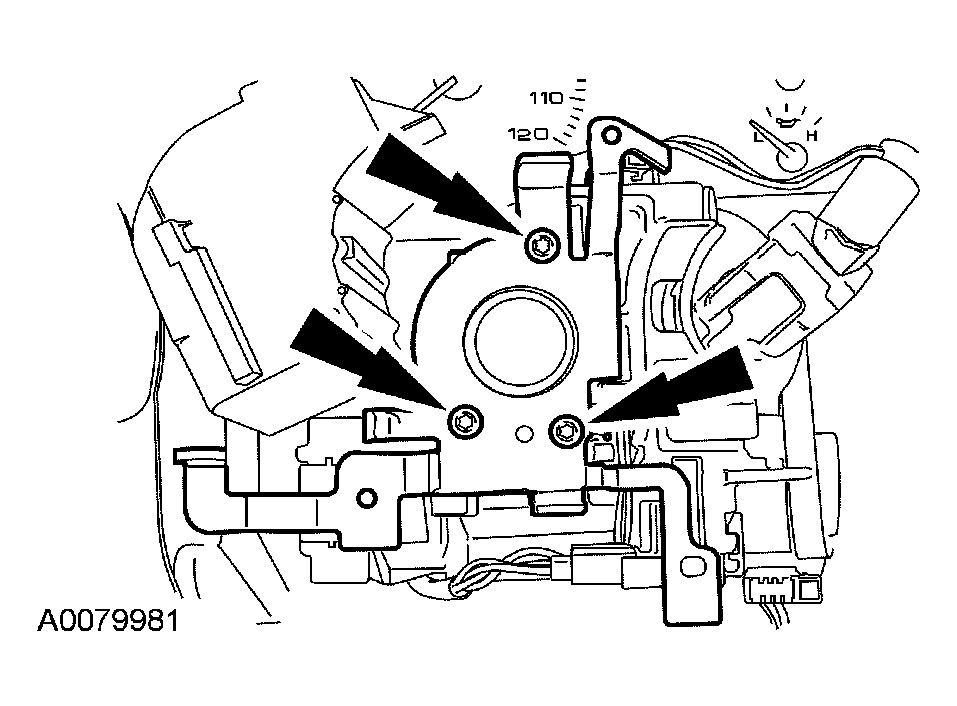

  10. Remove the 3 screws and remove the clockspring and shroud mounting bracket.
    Fig 8: Removing Screws, Clockspring And Shroud Mounting Bracket
    G03964457Courtesy of FORD MOTOR CO.

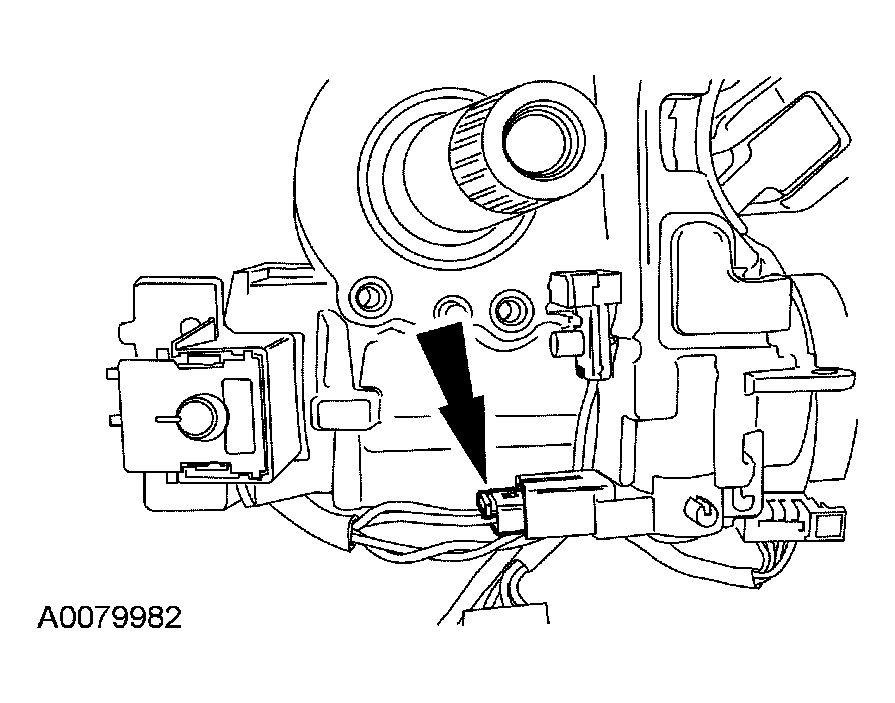

  11. Disconnect the brake shift interlock switch electrical connector.
    Fig 9: Disconnecting Brake Shift Interlock Switch Electrical Connector
    G03964458Courtesy of FORD MOTOR CO.

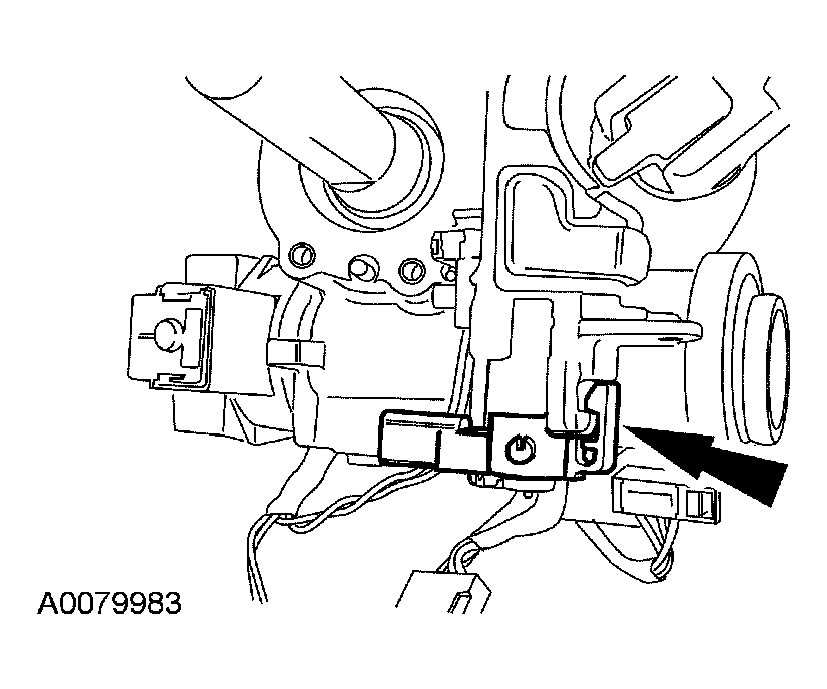

  12. Release the tab and slide the brake shift interlock down to remove.
    Fig 10: Releasing Tab And Sliding Brake Shift Interlock Down
    G03964459Courtesy of FORD MOTOR CO.
  13. To install, reverse the removal procedure.
