Overdrive Cancel Switch Electrical Connector Harness Side

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

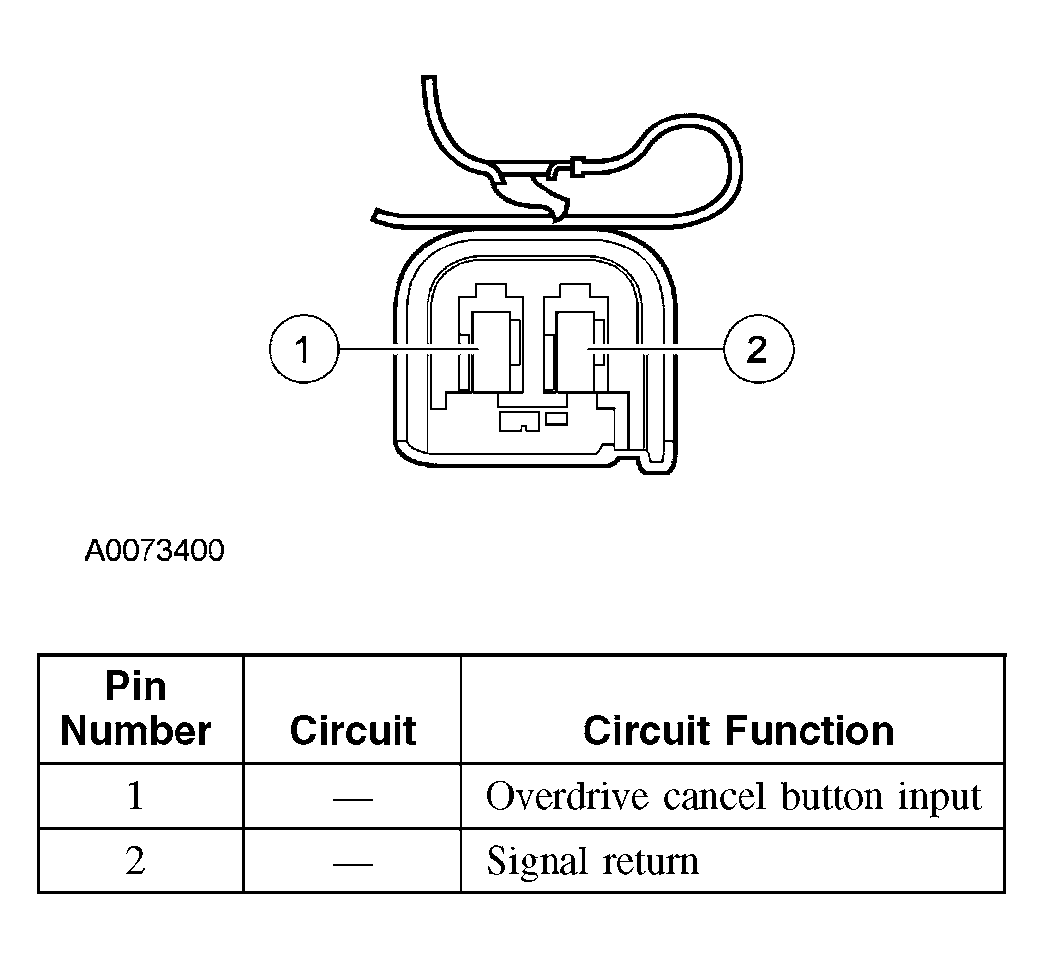

Fig 1: Identifying Overdrive Cancel Switch Electrical Connector Pins Harness Side
G03964415Courtesy of FORD MOTOR CO.
