Fuel Pump Module: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS

G03965079
Wrench, Fuel Tank Sending Unit 310-123
MATERIAL REFERENCE

Item Specification
SAE 5W-20 Super Premium Synthetic Blend Motor Oil XO-5W20-QSP WSS-M2C930-A

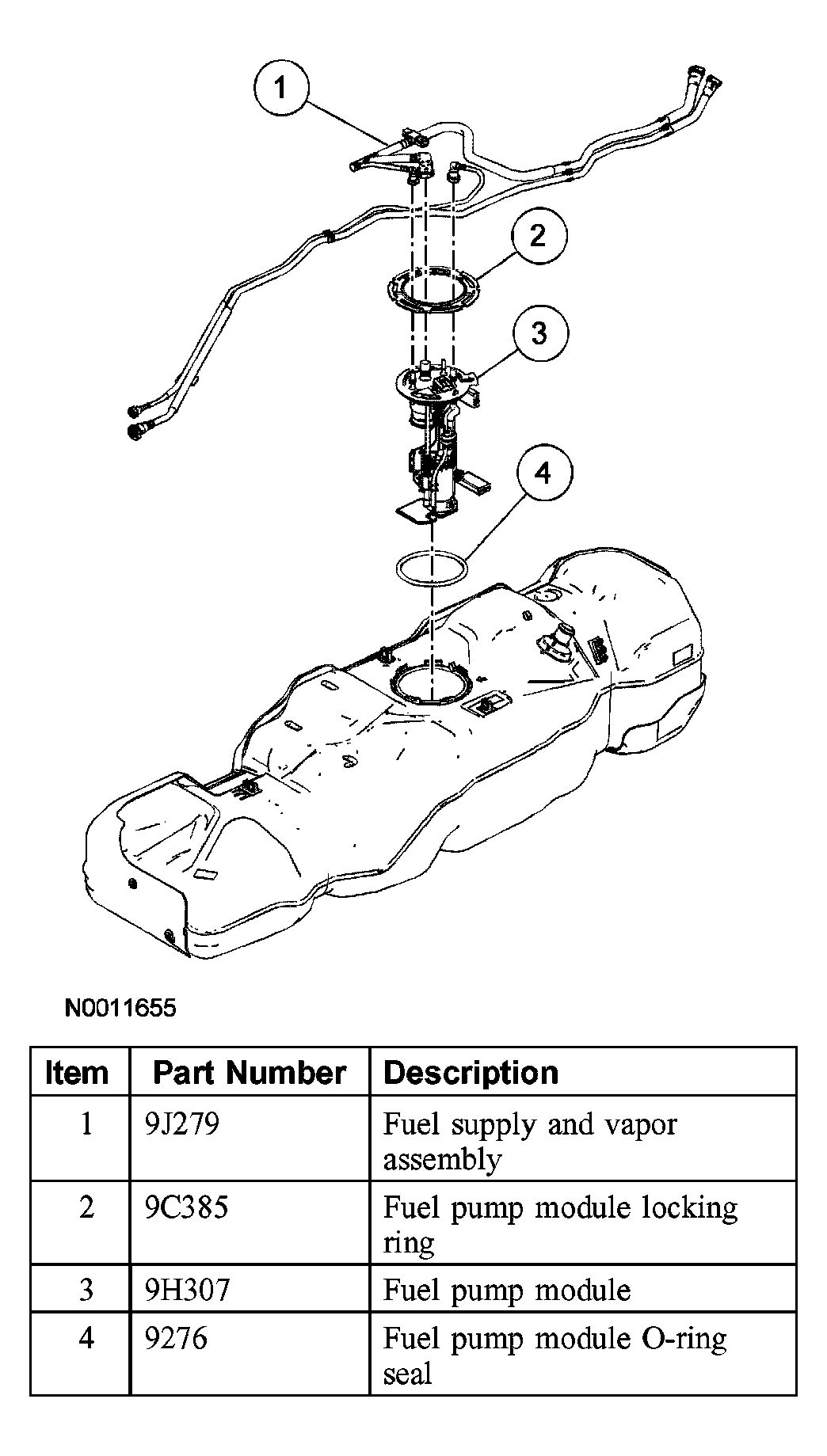

Fig 1: Exploded View Of Fuel Pump
G03965080Courtesy of FORD MOTOR CO.
