Engine Ignition Components - Exploded View

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

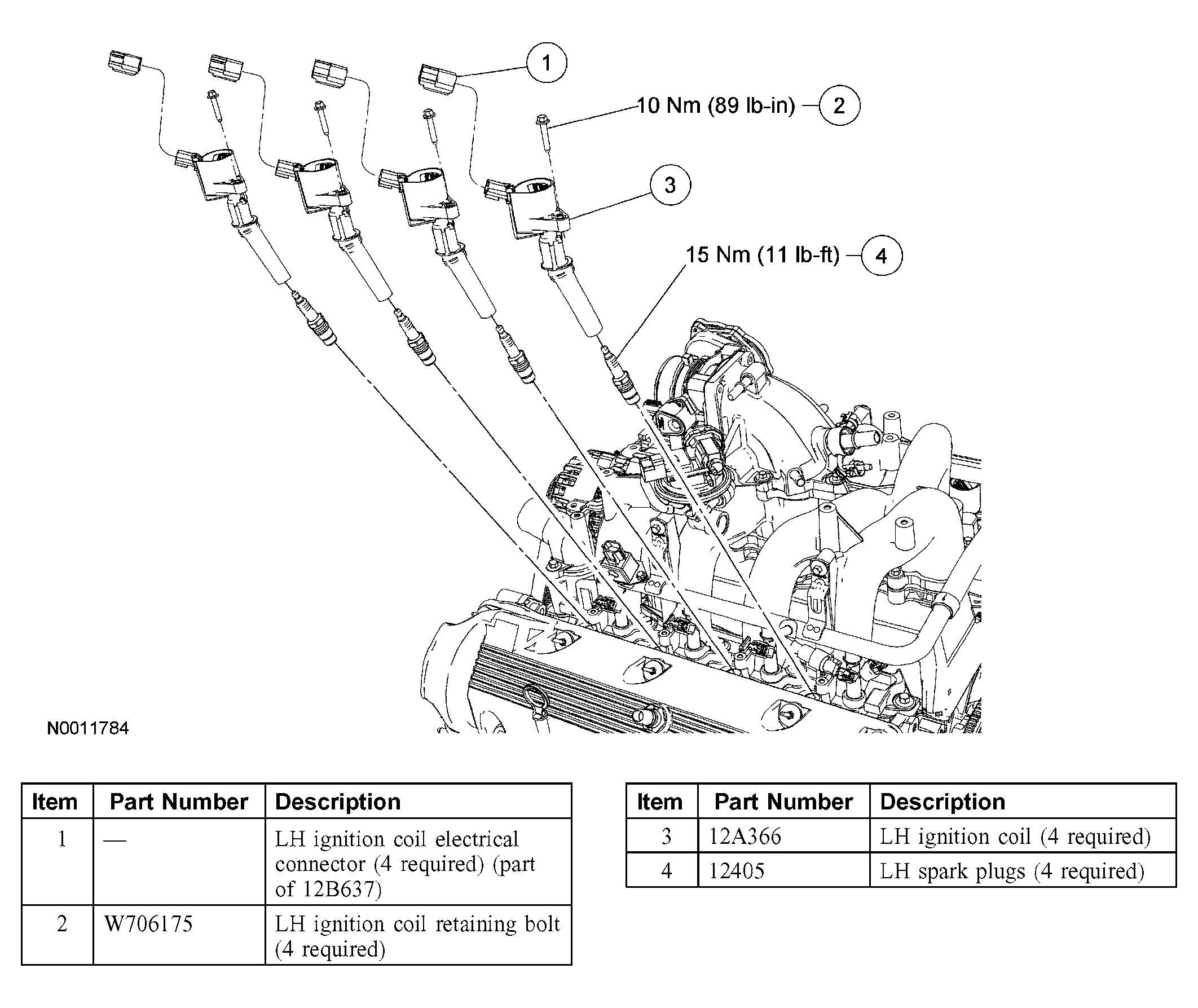

Fig 1: Identifying Engine Ignition Components - LH

Courtesy of FORD MOTOR CO.

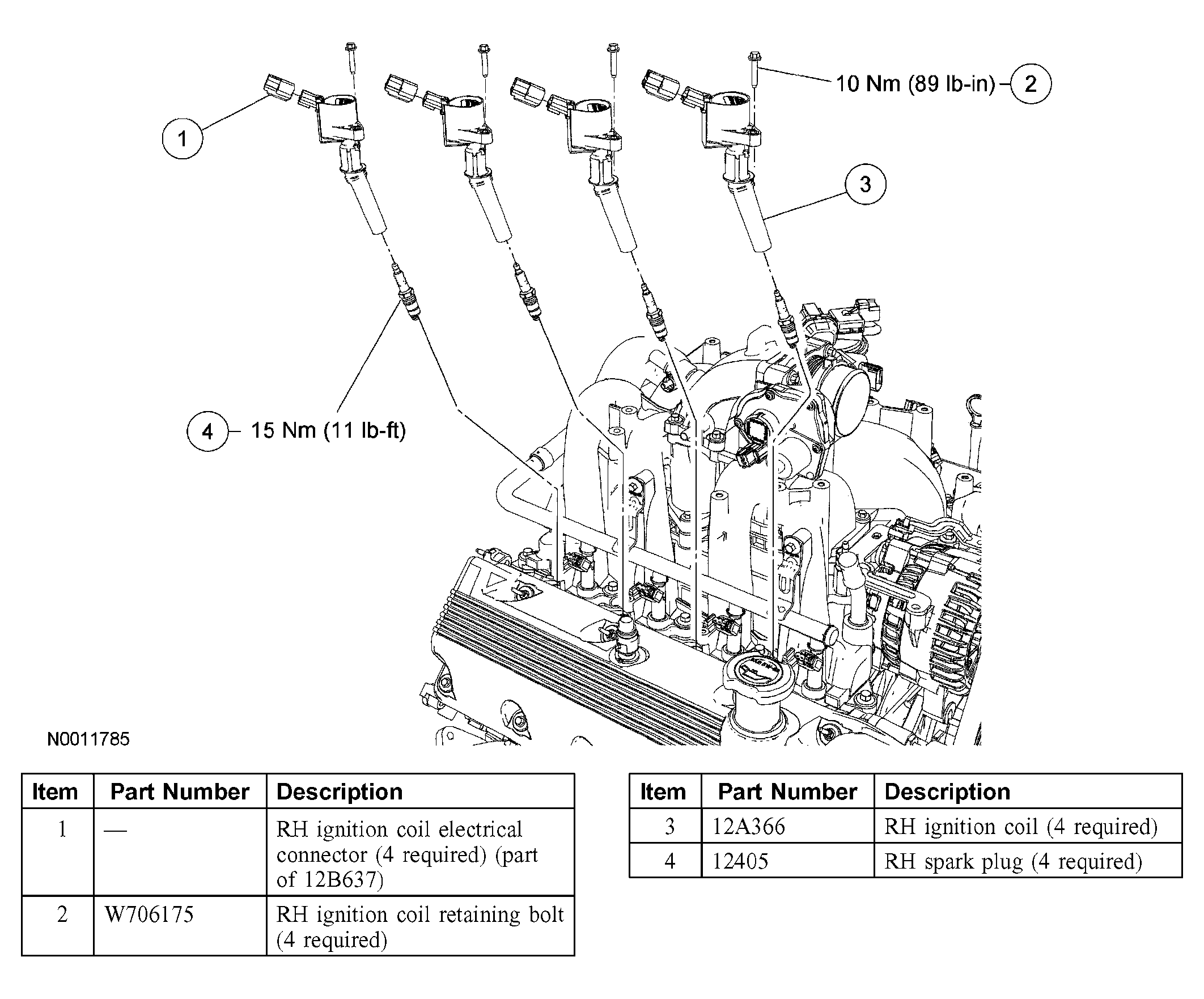

Fig 2: Identifying Engine Ignition Components - RH

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate component procedures.
