Home >> Ford >> 2000 >> Contour SE, 2.5 L, Standard >> Repair and Diagnosis >> External Pages >> Different car >> Section 1026 (Anti-Theft System -- F150 Pickup) >> Removal And Installation >> Passive Anti-Theft System (PATS) Transceiver >> Notes

Passive Anti-Theft System (PATS) Transceiver: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

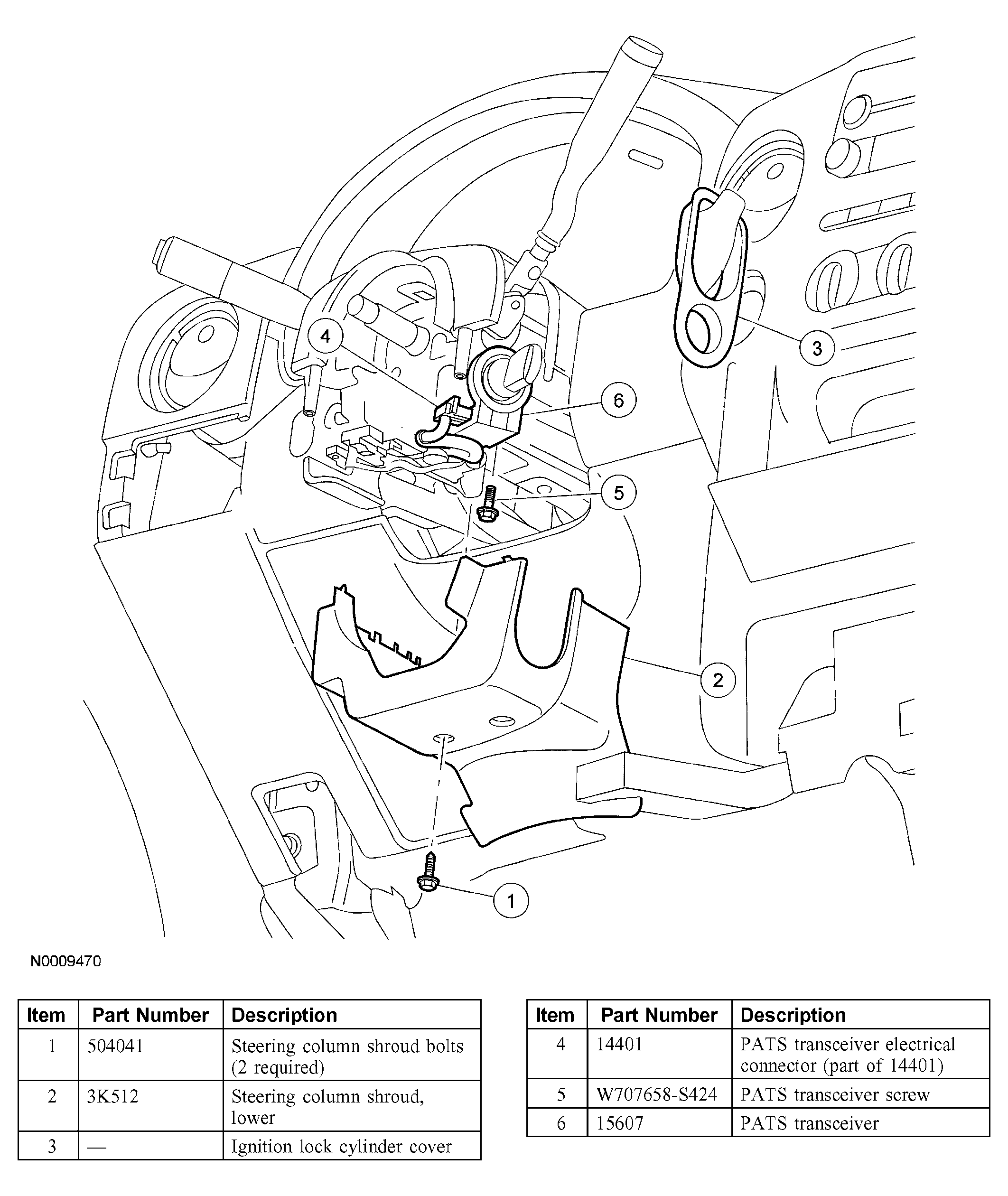

Fig 1: Identifying Passive Anti-Theft System Transceiver
G03965907Courtesy of FORD MOTOR CO.
