Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

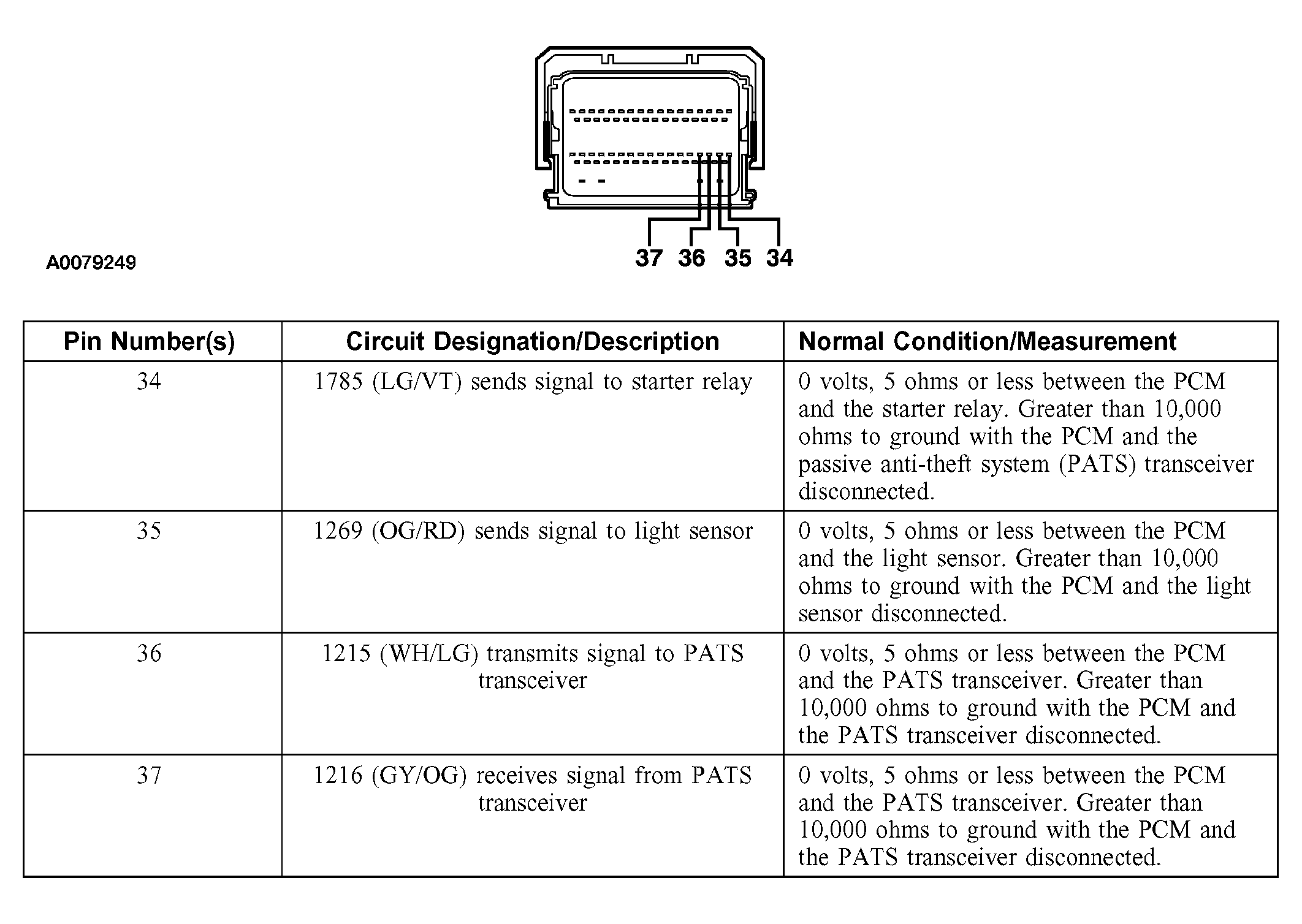

Fig 1: Identifying Powertrain Control Module C175b Connector Pins
G03965885Courtesy of FORD MOTOR CO.

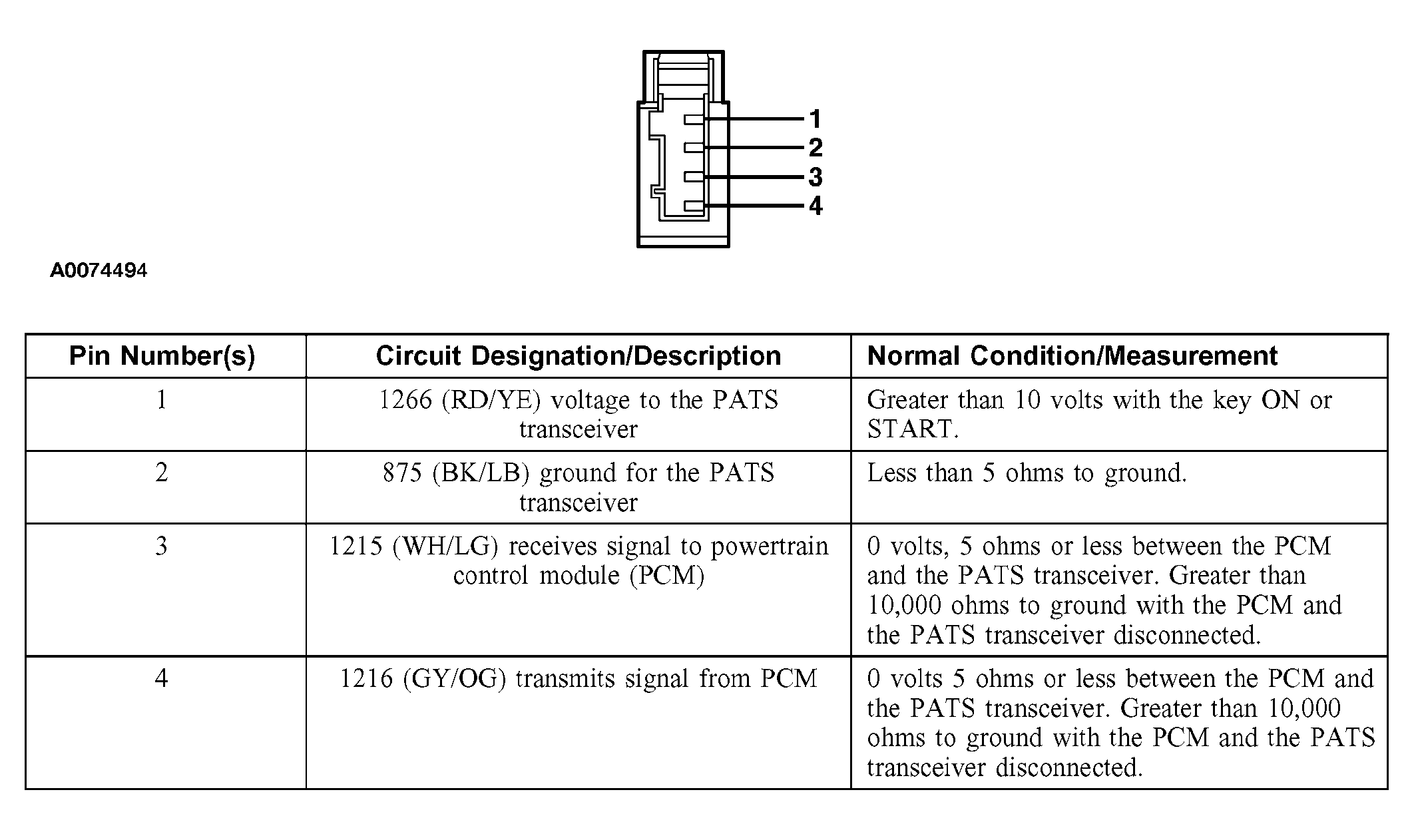

Fig 2: Identifying Passive Anti-Theft Transceiver C252 Connector Pins
G03965886Courtesy of FORD MOTOR CO.

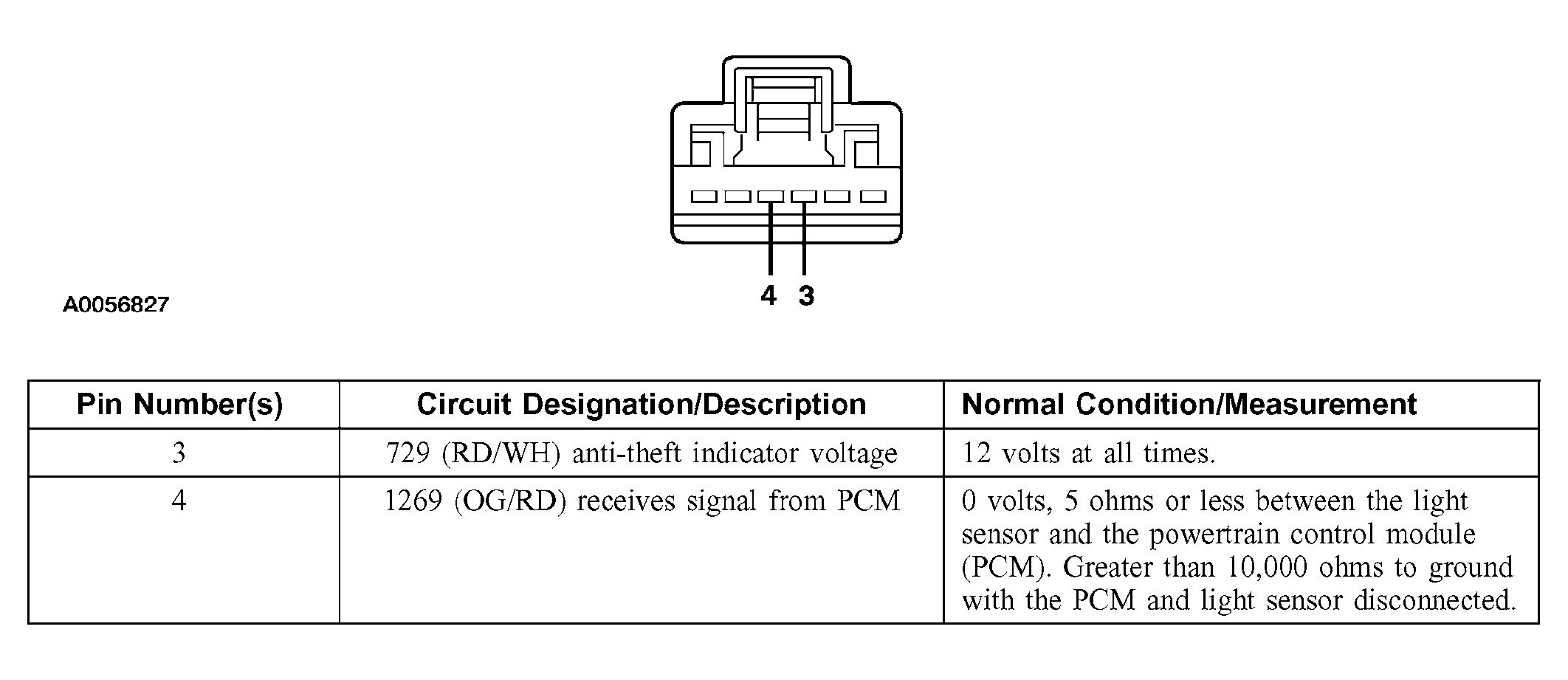

Fig 3: Identifying Light Sensor C286 Connector Pins
G03965887Courtesy of FORD MOTOR CO.
