WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

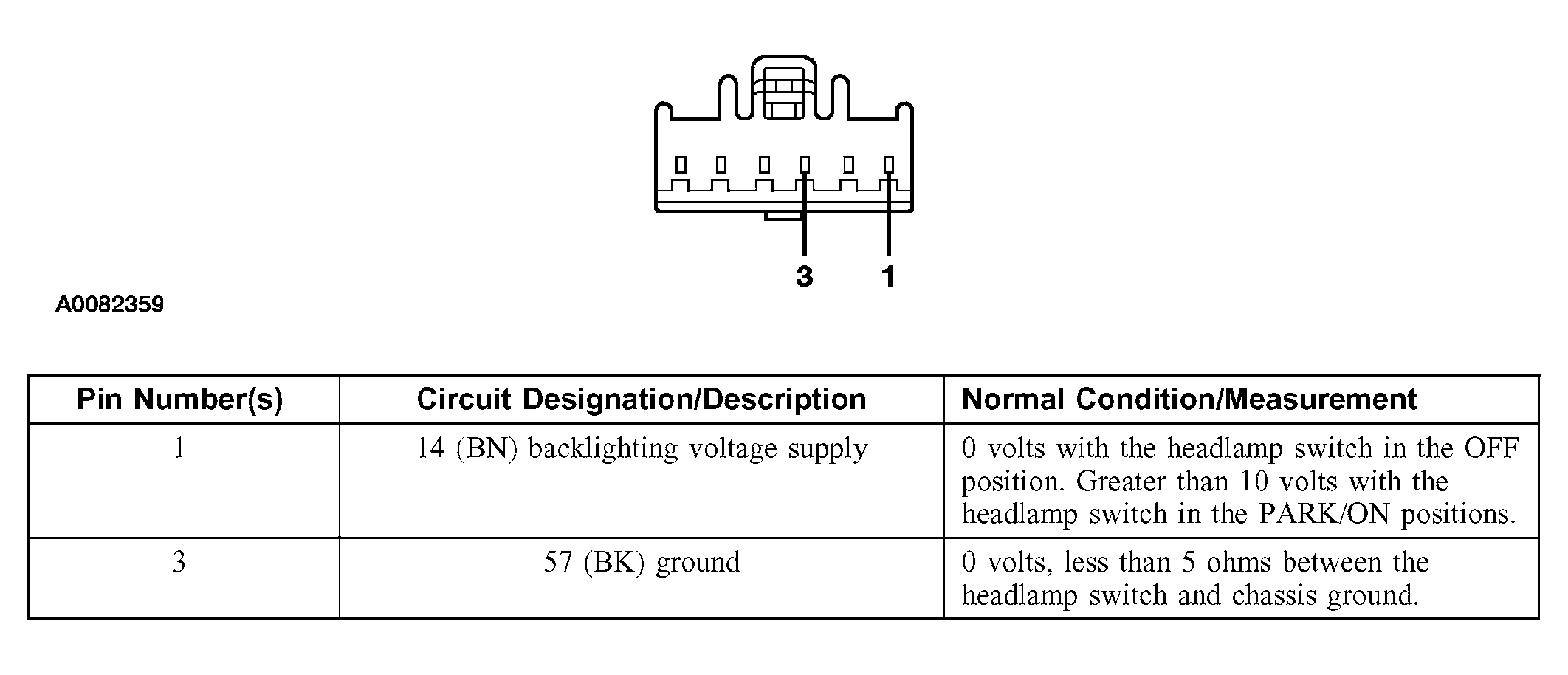

Fig 1: Identifying Headlamp Switch C205b Pins (Vehicles Built Before 11/04, C2150b (Vehicles Built After 11/04)
Courtesy of FORD MOTOR CO.

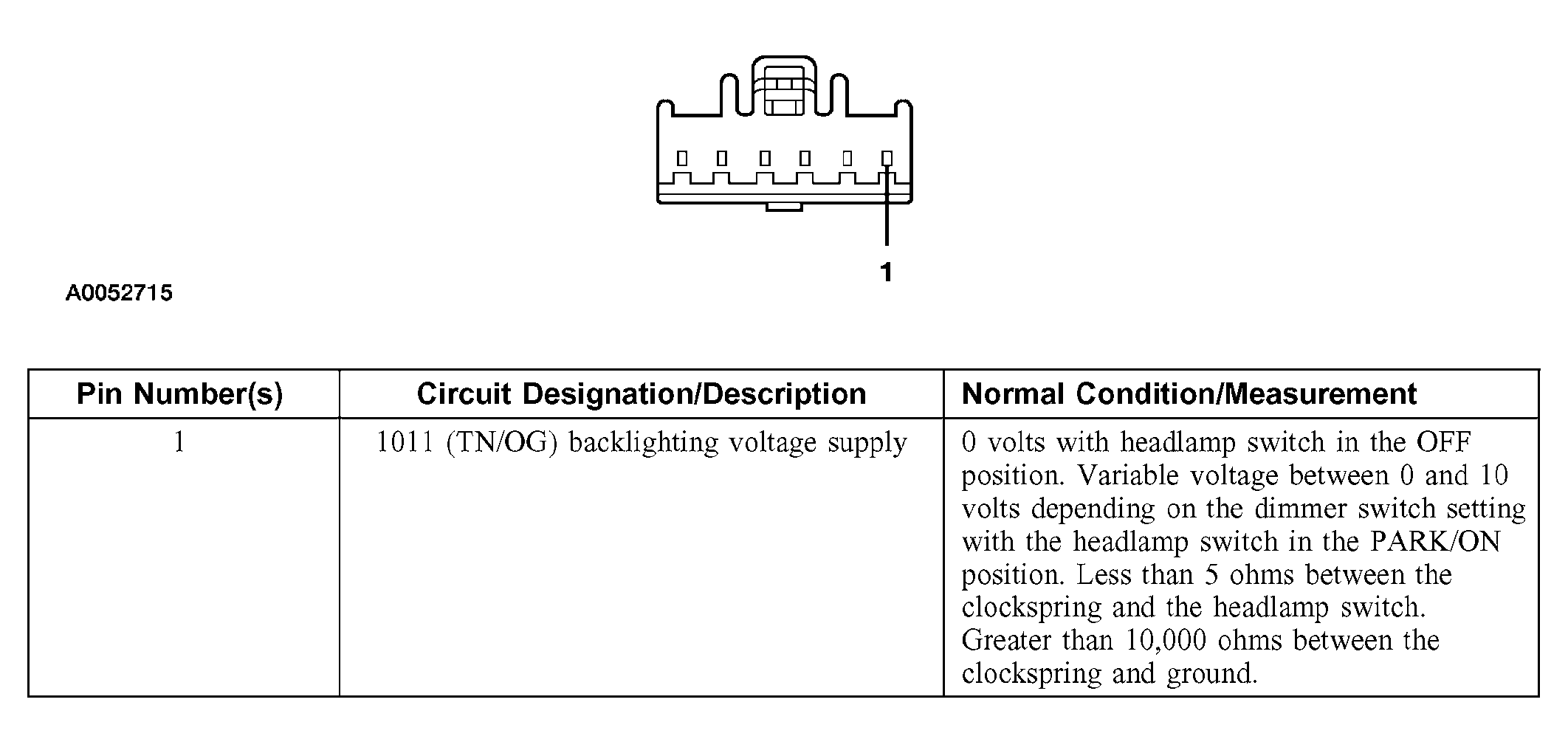

Fig 2: Identifying Clockspring C218b Pins
Courtesy of FORD MOTOR CO.

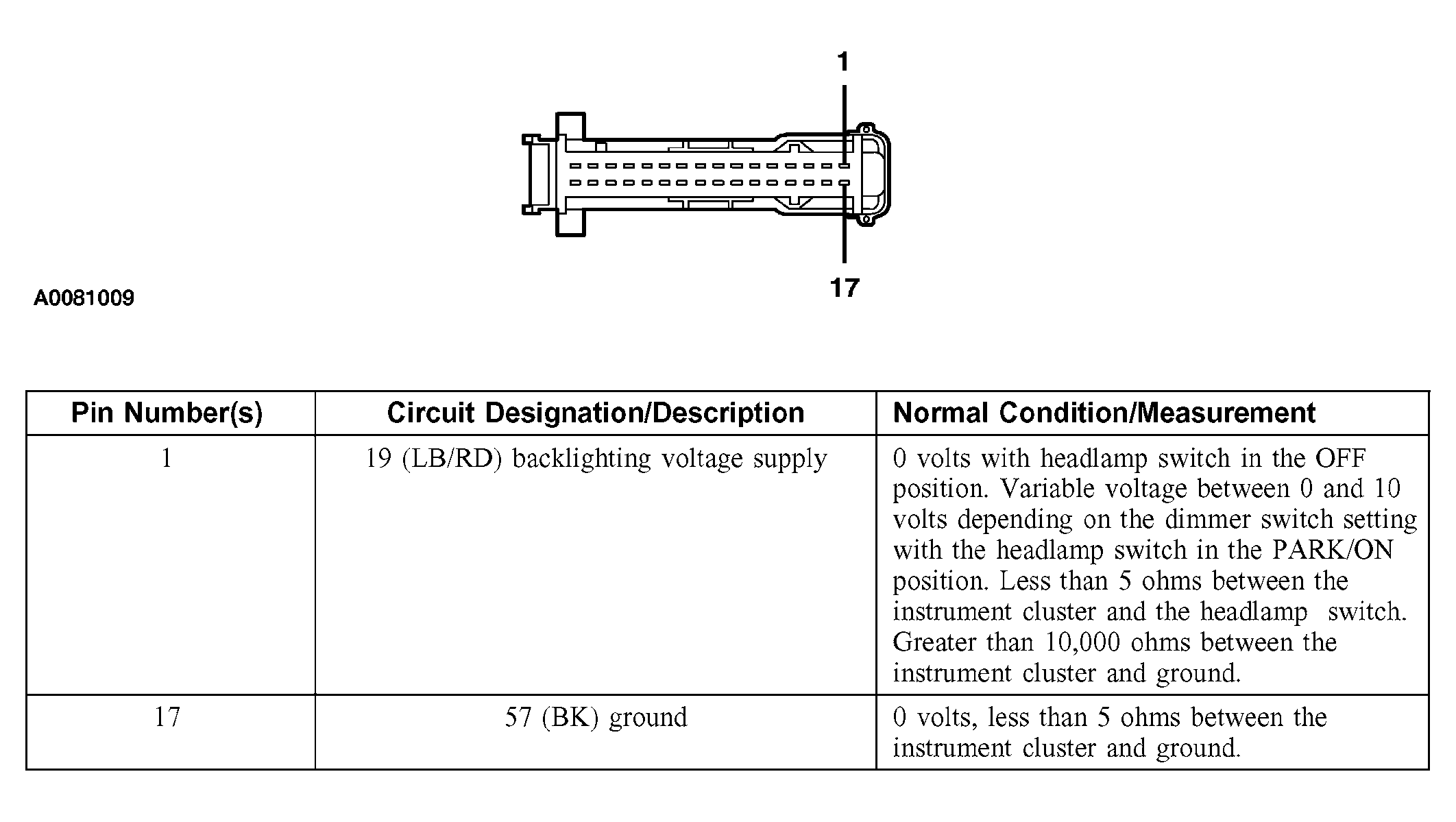

Fig 3: Identifying Instrument Cluster C220a Pins
Courtesy of FORD MOTOR CO.
Fig 4: Identifying Instrument Cluster C220b Pins
Courtesy of FORD MOTOR CO.

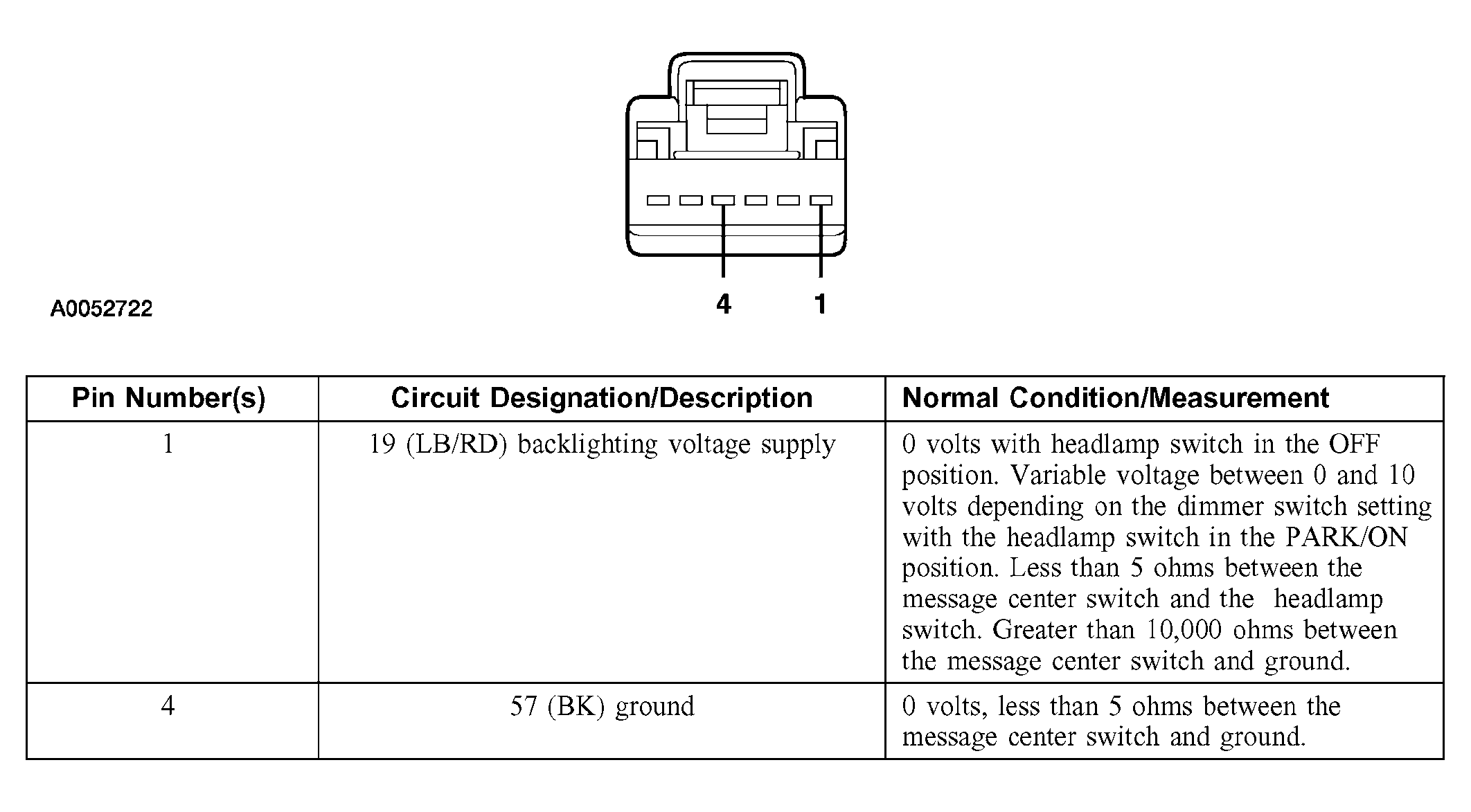

Fig 5: Identifying Message Center Switch C253 Pins
Courtesy of FORD MOTOR CO.
Fig 6: Identifying Audio Unit C290a Pins
Courtesy of FORD MOTOR CO.

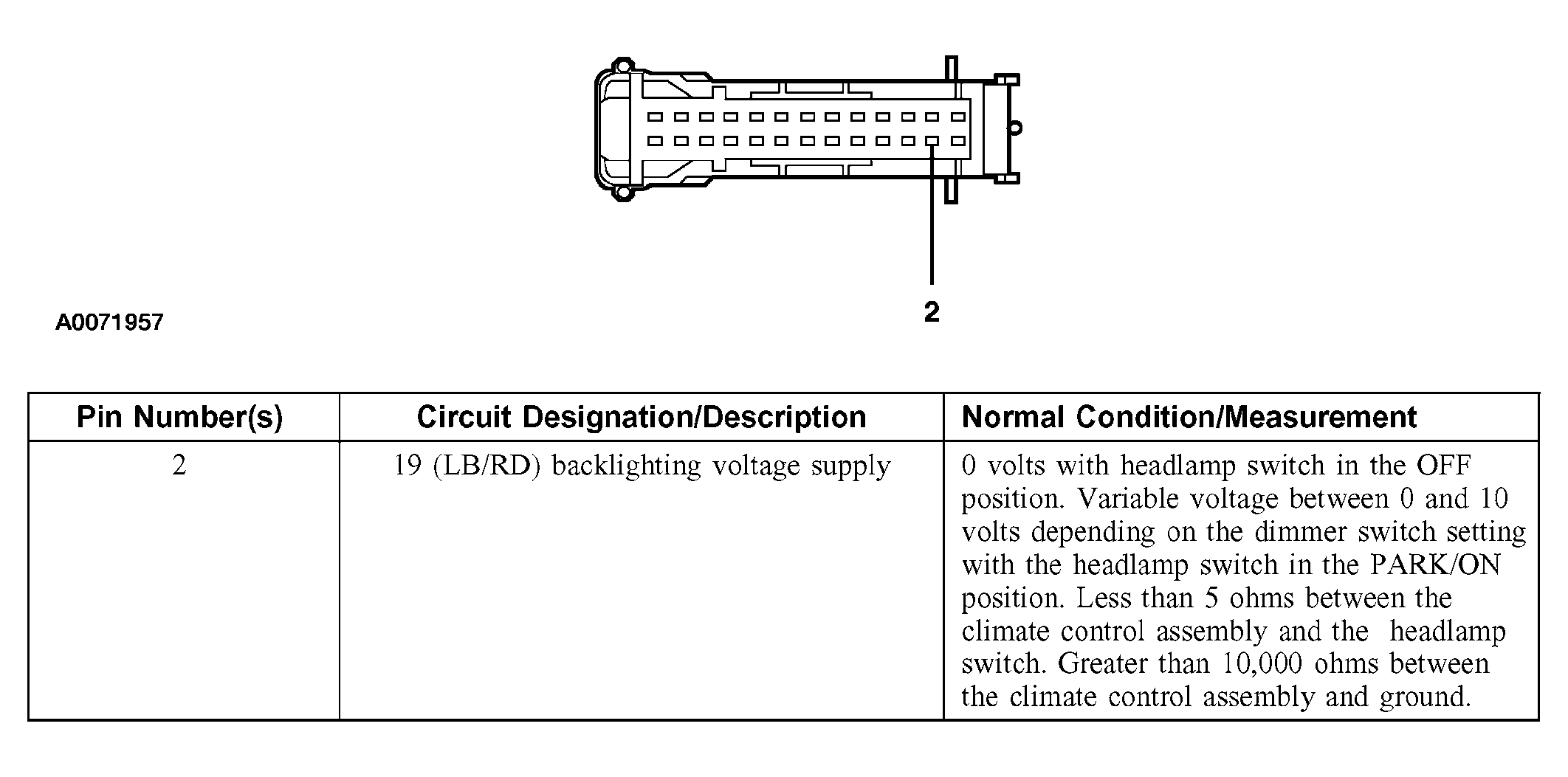

Fig 7: Identifying Manual Climate Control C294a And Automatic Climate Control C228a Pins
Courtesy of FORD MOTOR CO.

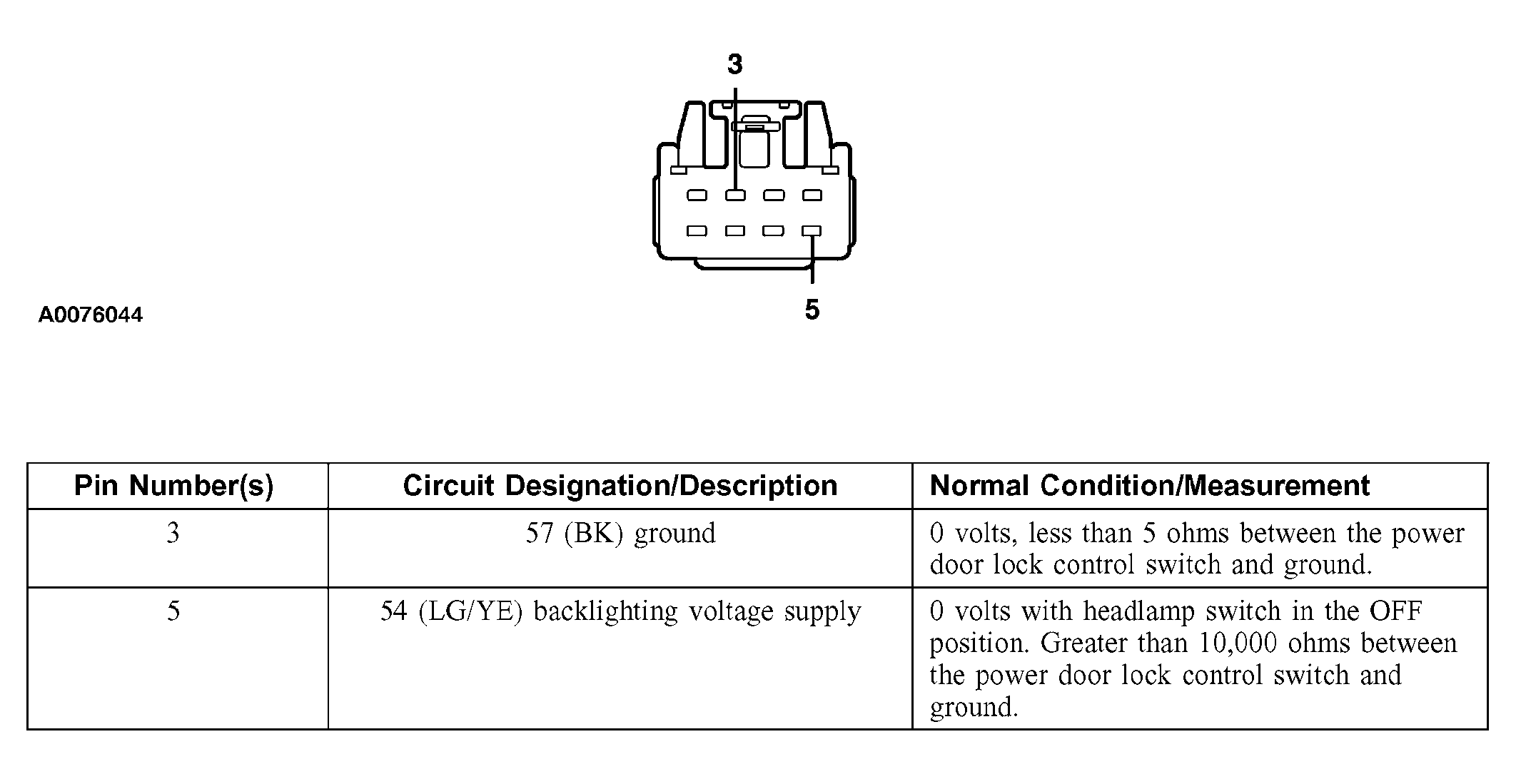

Fig 8: Identifying LH Power Door Lock Control Switch C505 And RH Power Door Lock Switch C605 Pins
Courtesy of FORD MOTOR CO.

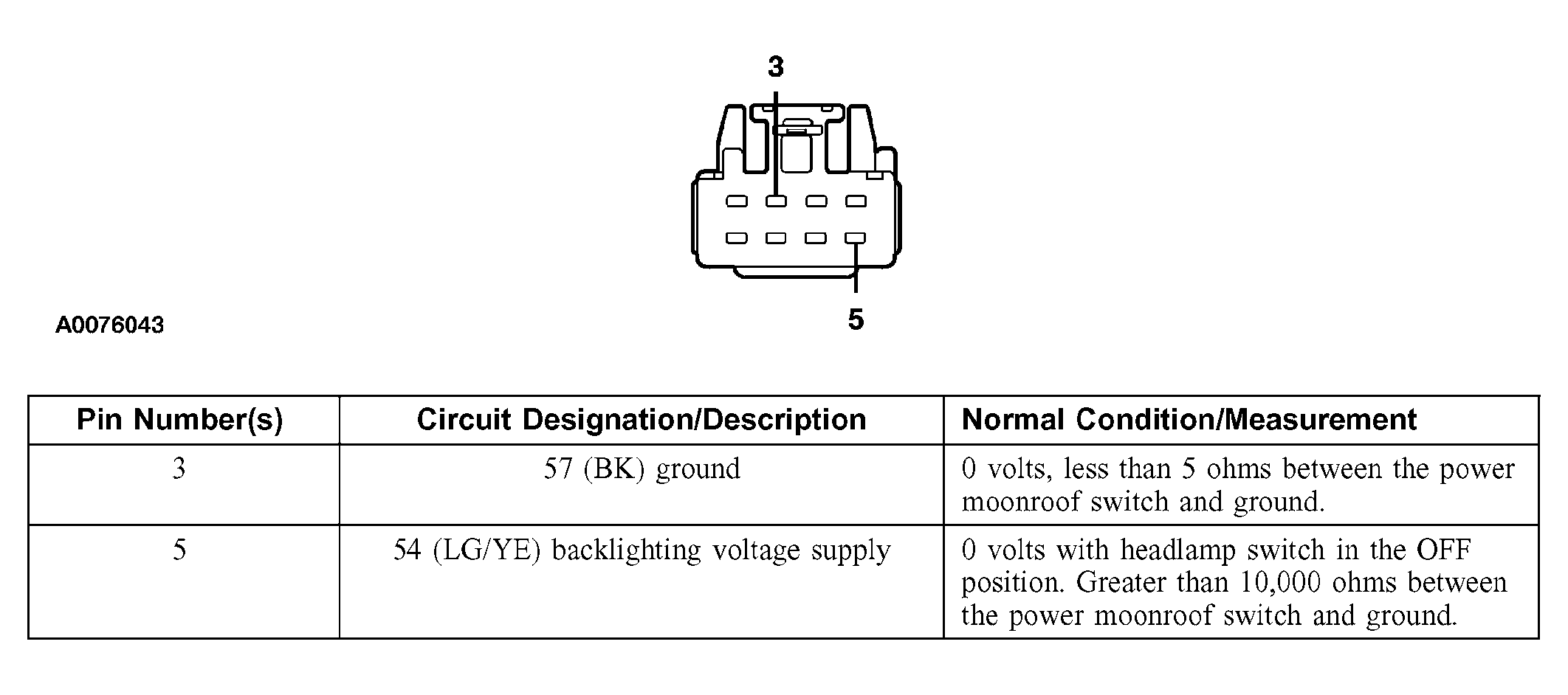

Fig 9: Identifying Power Moon Roof Switch C912 Pins
Courtesy of FORD MOTOR CO.

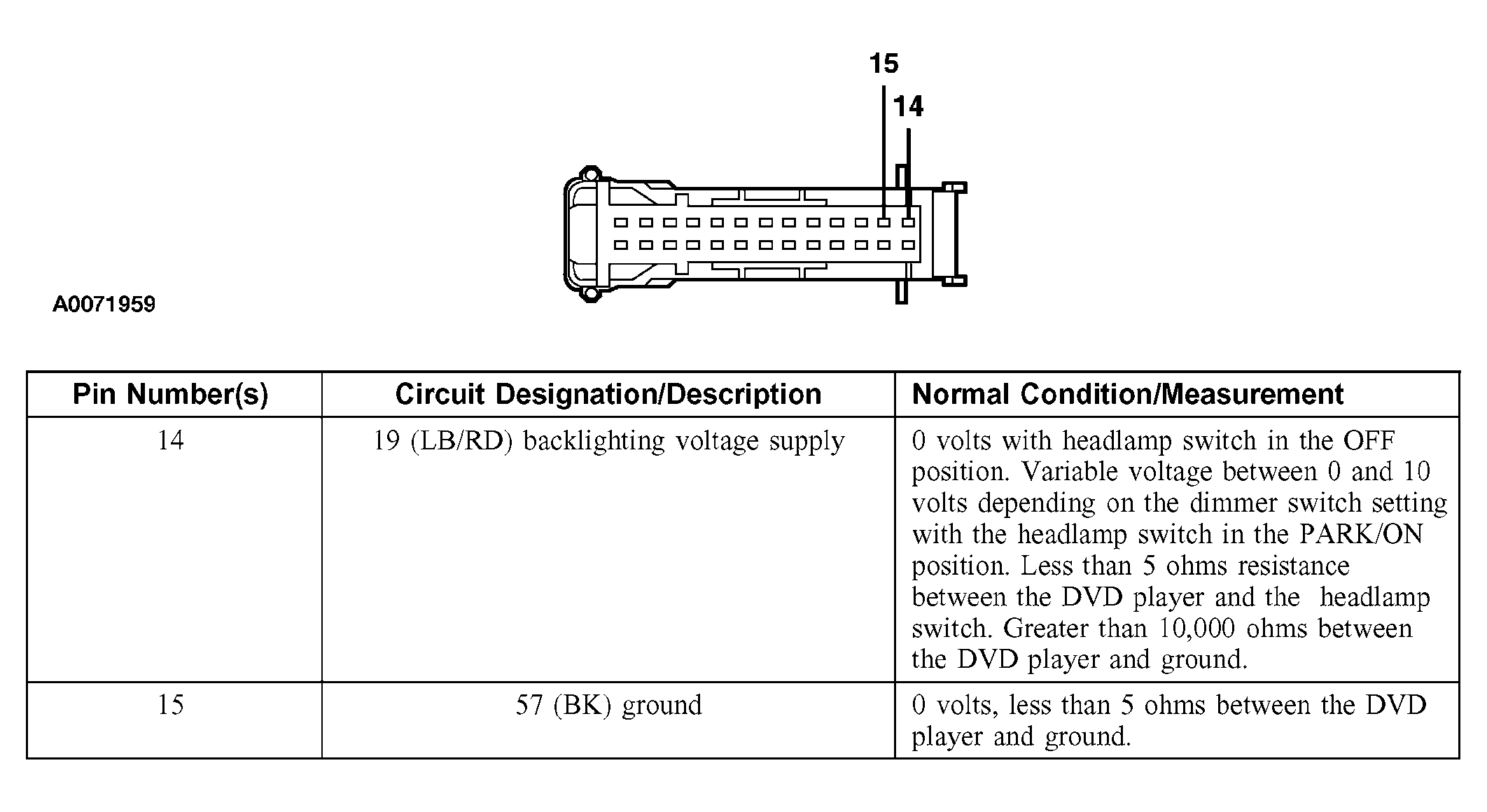

Fig 10: Identifying Digital Versatile Disc (DVD) Player C949 Pins
Courtesy of FORD MOTOR CO.

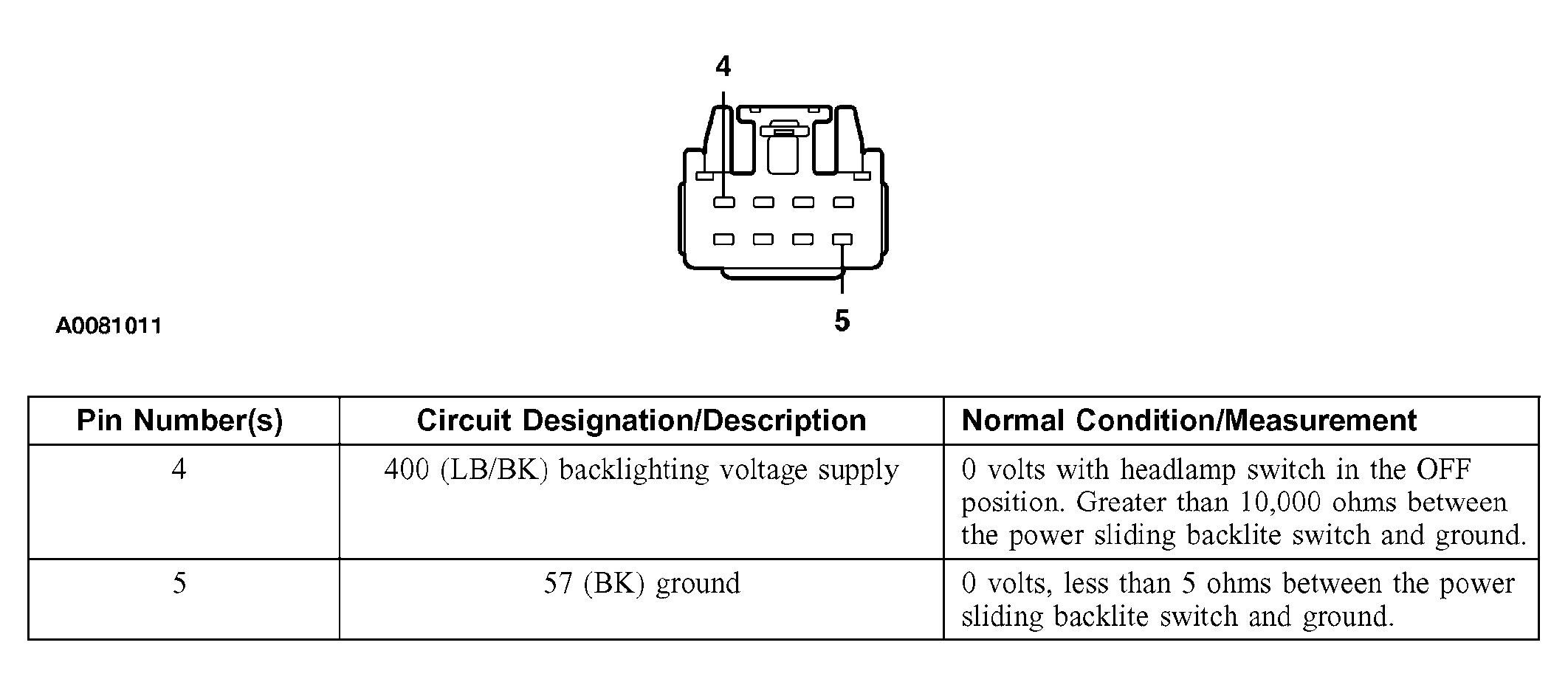

Fig 11: Identifying Power Sliding Backlite Switch C980 Pins
