Disc and Pressure Plate: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. For additional information, refer to MANUAL TRANSAXLE/TRANSMISSION .
  2. If the original components are to be installed, index-mark the clutch pressure plate and the flywheel.

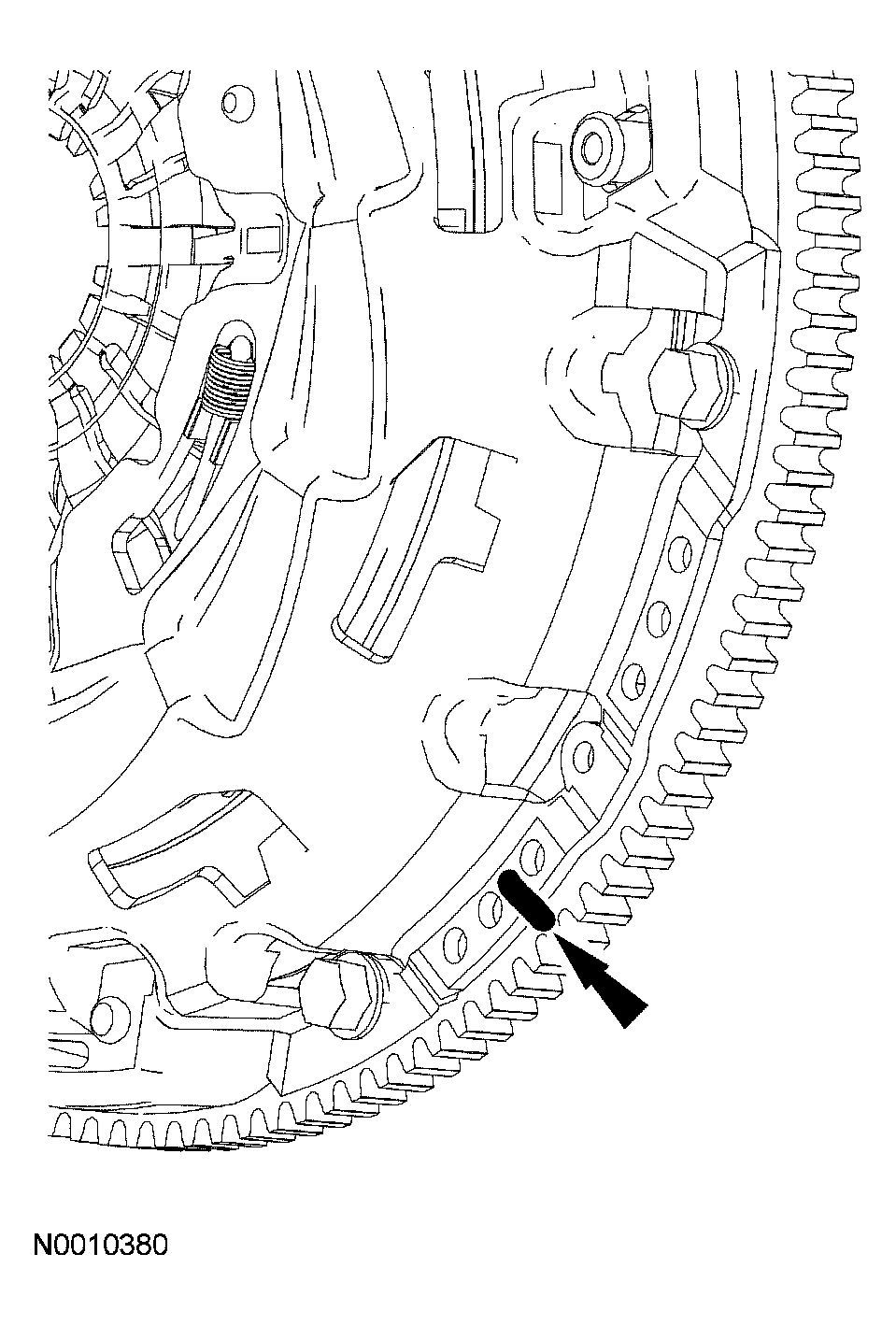

    Fig 1: Index-Marking Clutch Pressure Plate And Flywheel
    G03964542Courtesy of FORD MOTOR CO.
  3. Remove the clutch pressure plate bolts, clutch pressure plate and the clutch disc.
