Disc and Pressure Plate: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL CHART

G03901703
 Clutch Aligner 308-090 (T83T-7137-A)

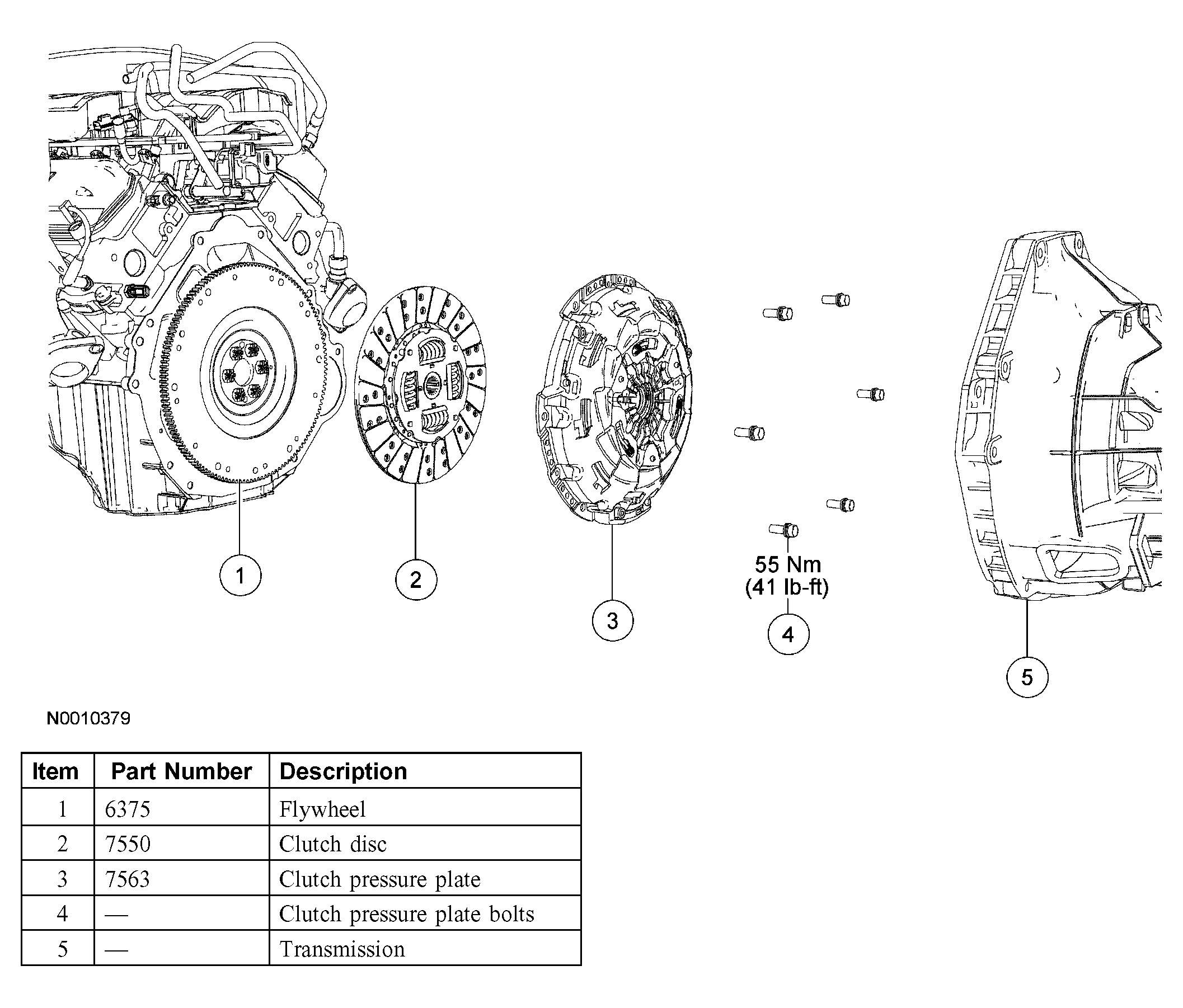

Fig 1: Identifying Disc And Pressure Plate
G03964541Courtesy of FORD MOTOR CO.
