Removal And Installation: Bearing: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The input shaft pilot bearing can only be installed with the seal facing the transmission. The input shaft pilot bearing is pregreased and does not require additional lubrication.

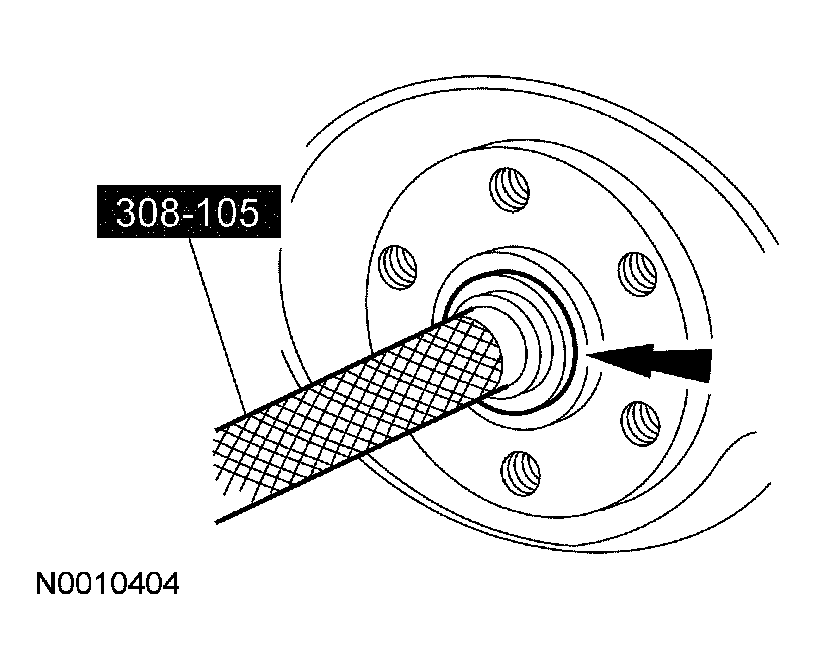

    Fig 1: Installing New Input Shaft Pilot Bearing Using Special Tool
    G03964549Courtesy of FORD MOTOR CO.
  1. Using the special tool, install a new input shaft pilot bearing.
