Evaporative Emissions System (EVAP) Components - Exploded View

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

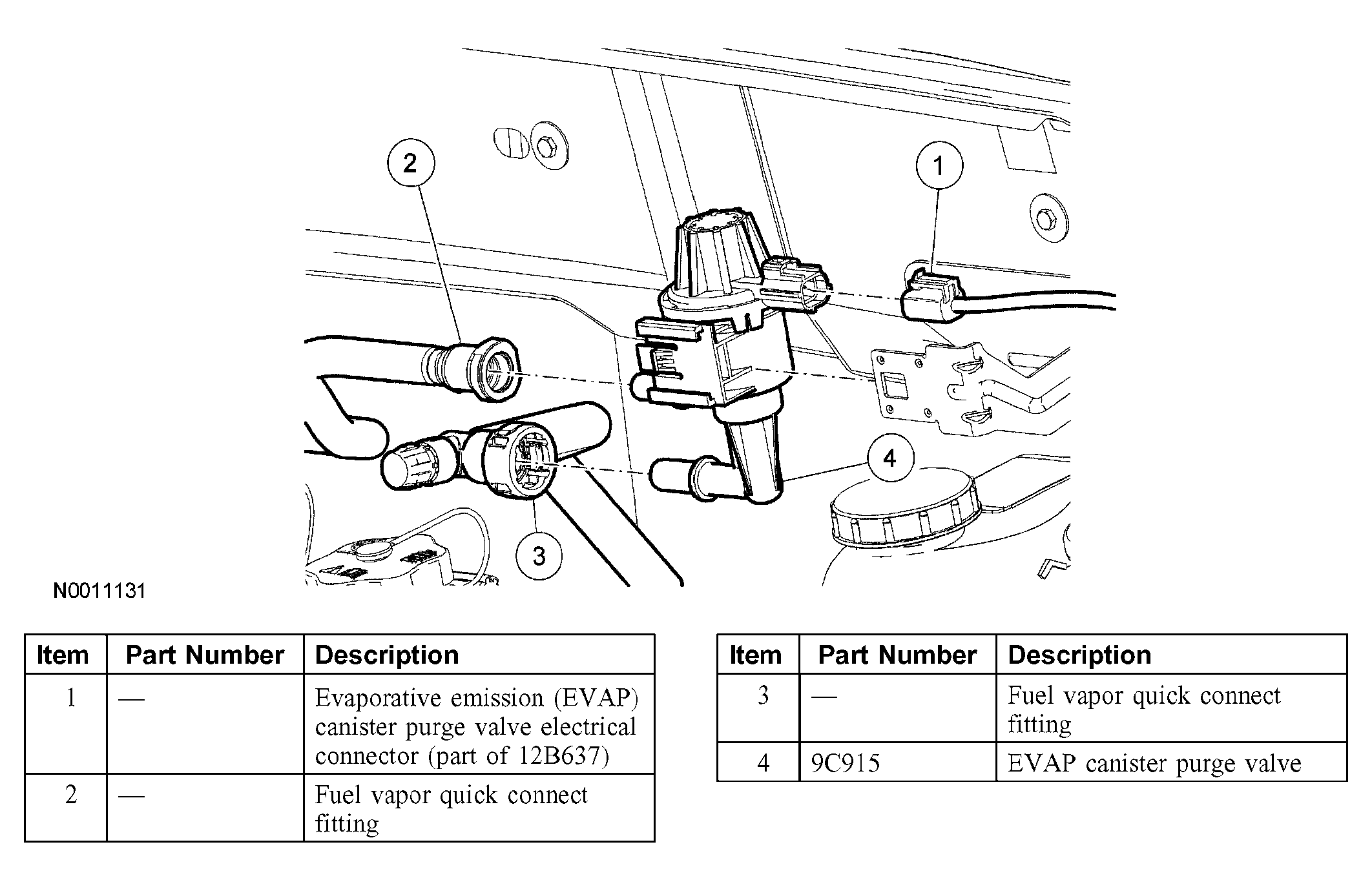

Fig 1: Exploded View Of Evaporative Emissions System (Items 1-4)

Courtesy of FORD MOTOR CO.

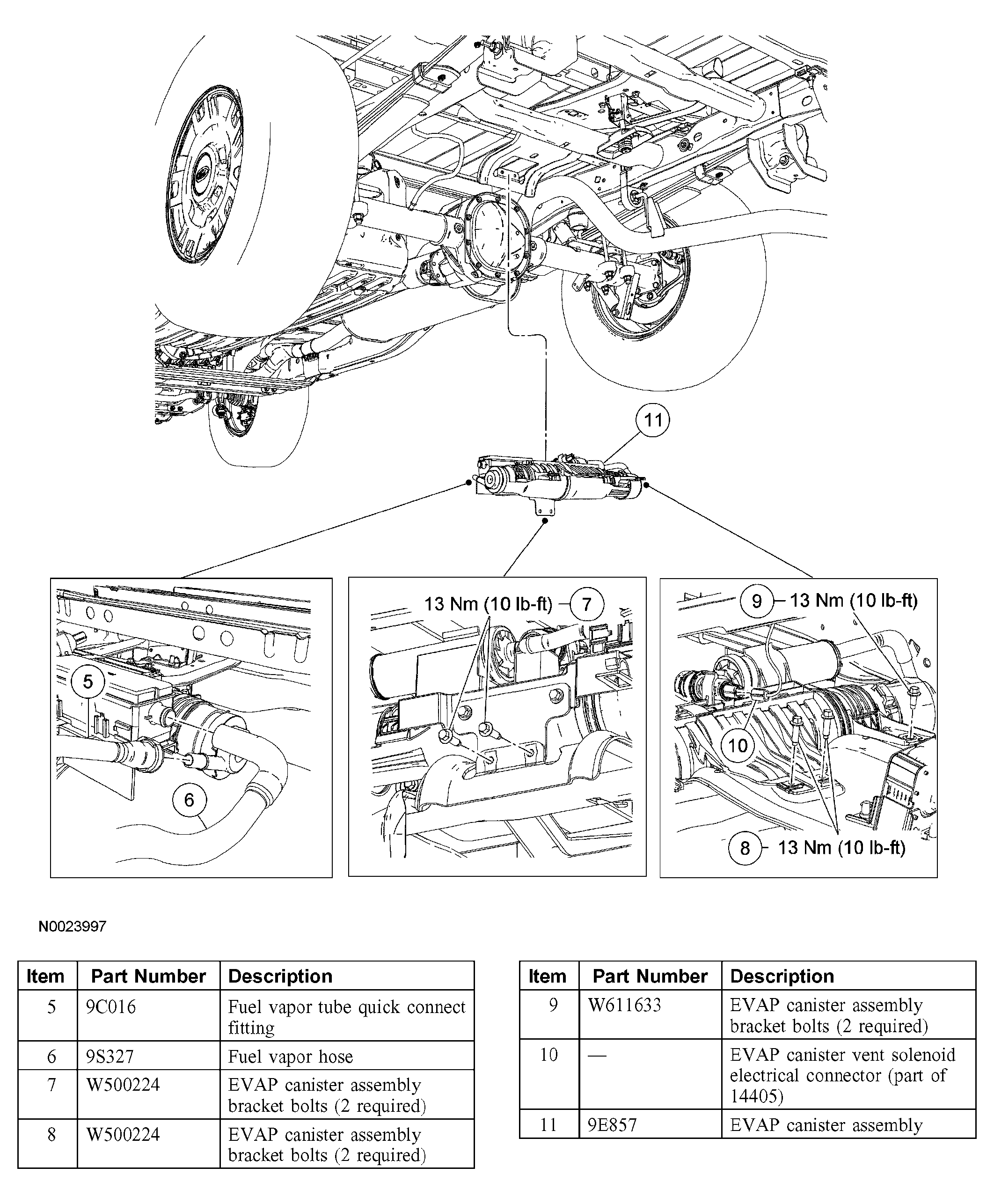

Fig 2: Exploded View Of Evaporative Emissions System (Items 5-11)

Courtesy of FORD MOTOR CO.

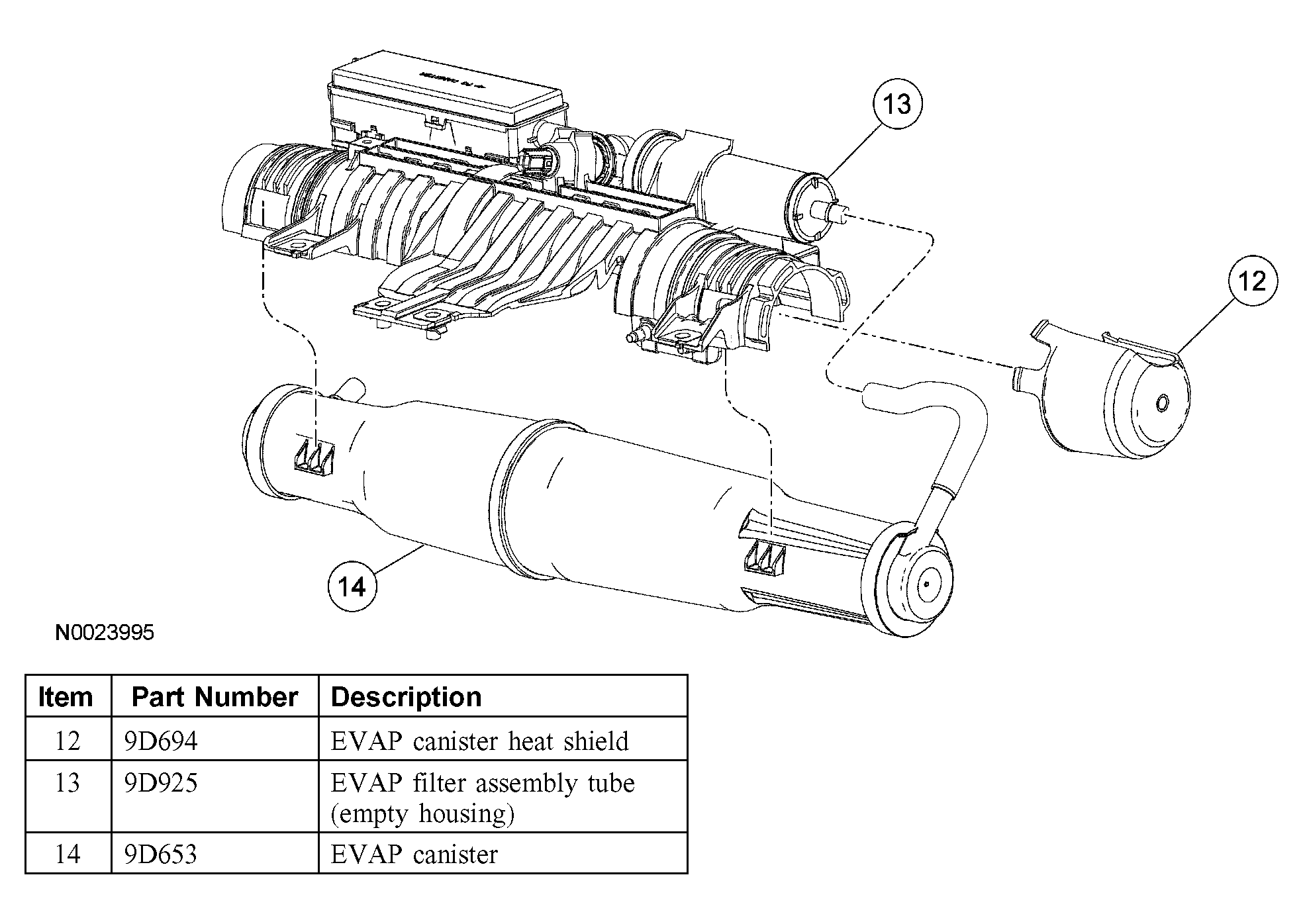

Fig 3: Exploded View Of Evaporative Emissions System (Items 12-14)

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
