Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering wheel. For additional information, refer to STEERING COLUMN .
  2. Remove the lower steering column shroud screw.

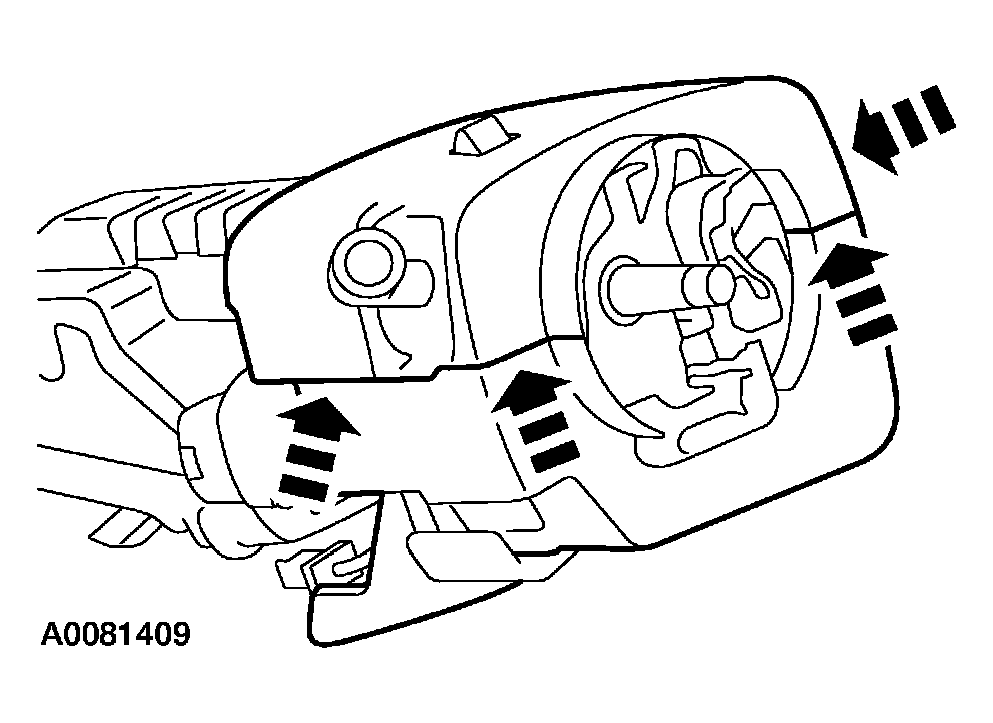

    Fig 1: Removing Lower Steering Column Shroud Screw
    G03961425Courtesy of FORD MOTOR CO.
  3. Apply inward pressure to the upper and lower shroud cover seam to separate them and remove the lower shroud.
  4. Remove the 2 screws and the upper steering column shroud.
  5. Remove the screw, release the tab and position the multifunction switch aside.

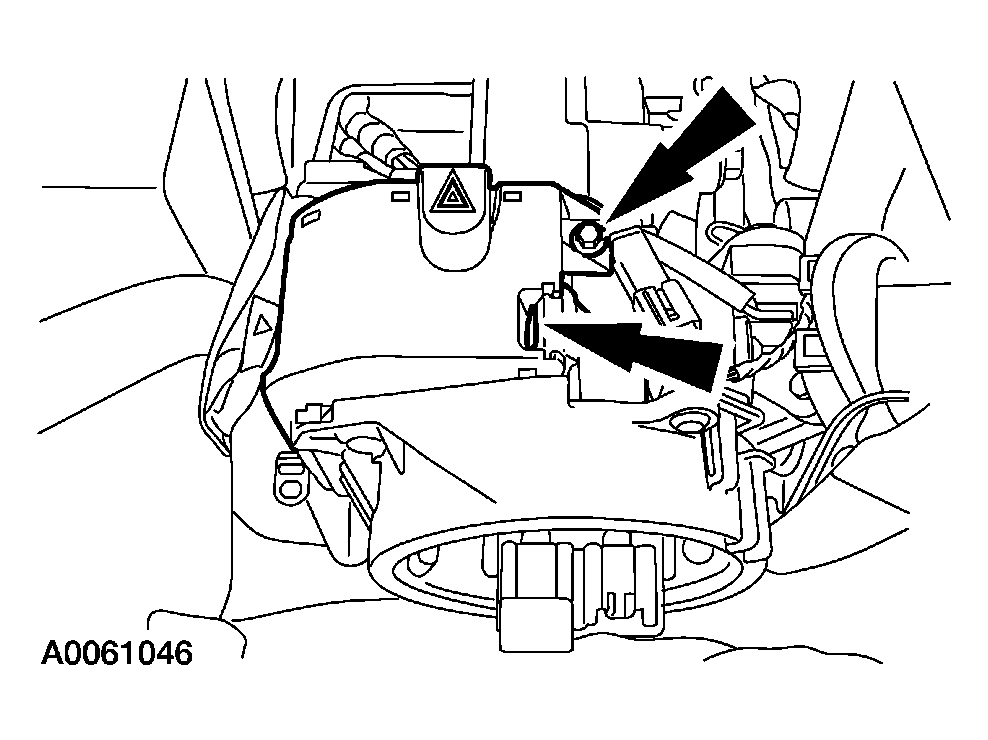

    Fig 2: Removing Screw And Position Multifunction Switch Aside
    G03929025Courtesy of FORD MOTOR CO.
  6. Disconnect the multifunction switch electrical connector.
  7. Remove the multifunction switch.
  8. To install, reverse the removal procedure.
