Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

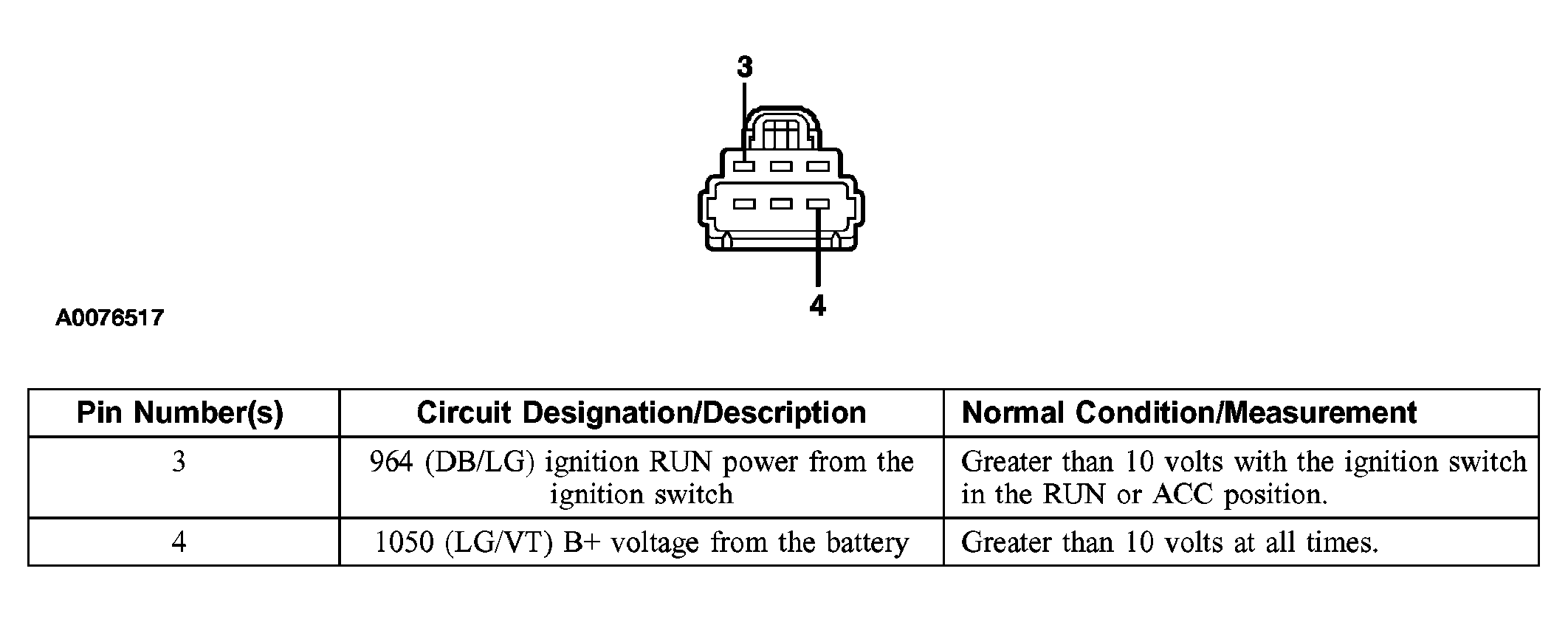

Central Junction Box (CJB) C270e

Fig 1: Identifying Central Junction Box (CJB) C270E Connector Pinouts

Courtesy of FORD MOTOR CO.

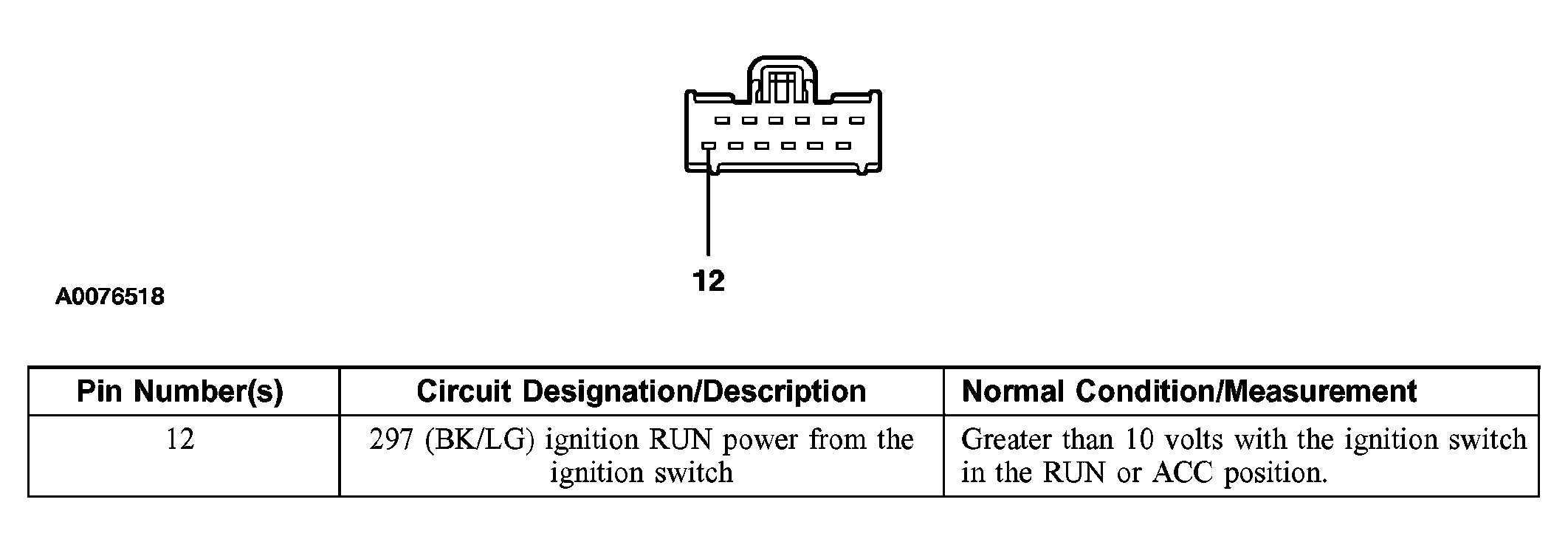

Central Junction Box (CJB) C270f

Fig 2: Identifying Central Junction Box (CJB) C270f Connector Pinouts

Courtesy of FORD MOTOR CO.

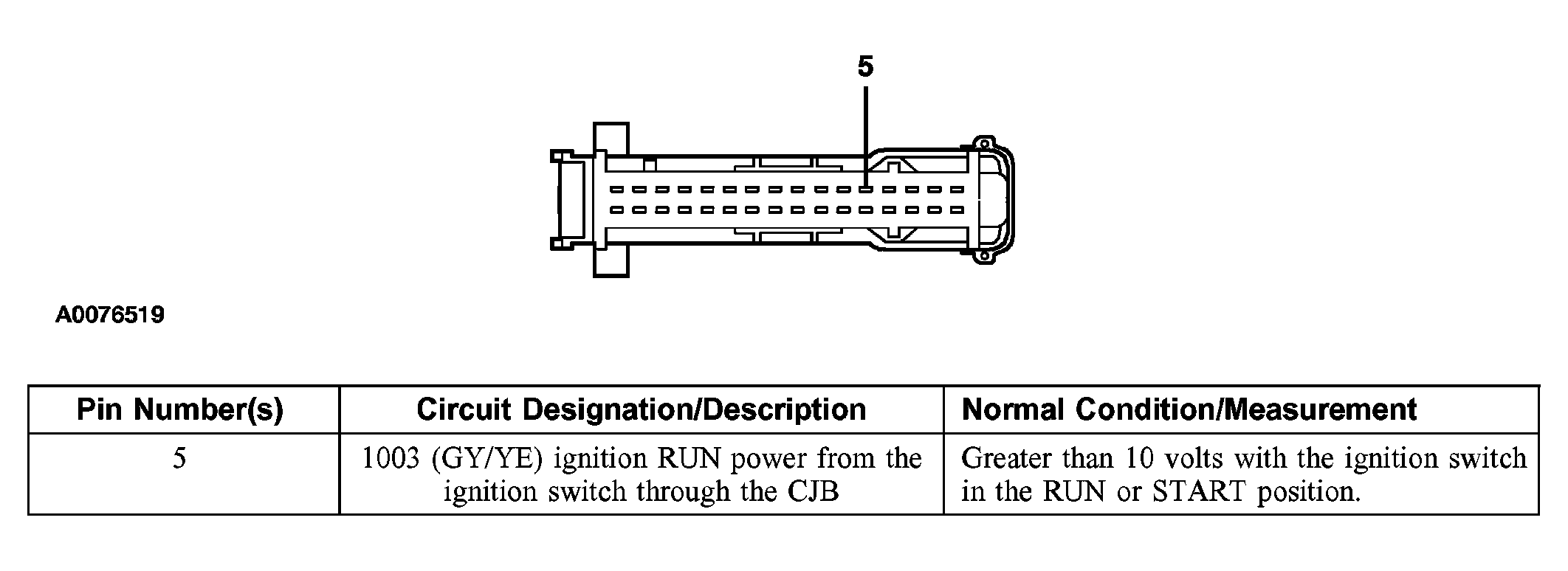

Central Junction Box (CJB) C270g

Fig 3: Identifying Central Junction Box (CJB) C270g Connector Pinouts

Courtesy of FORD MOTOR CO.

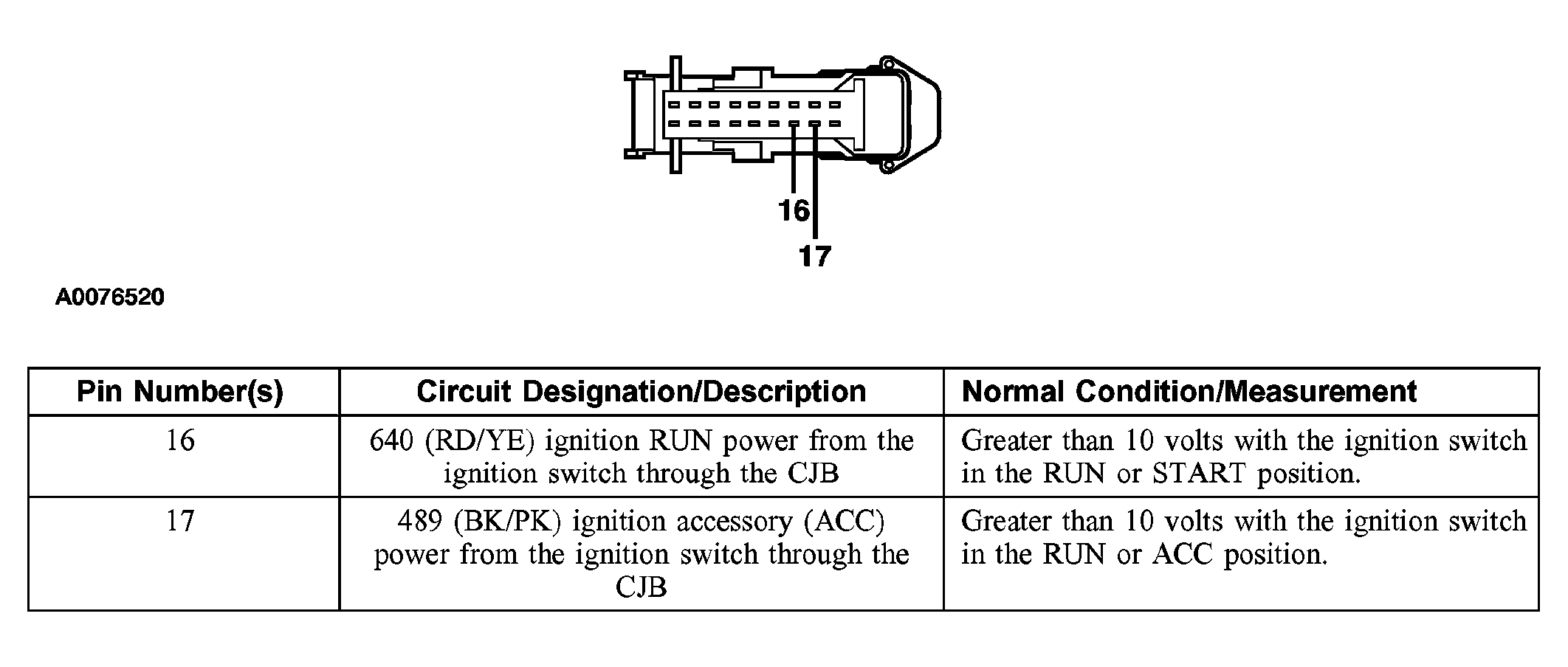

Central Junction Box (CJB) C270h

Fig 4: Identifying Central Junction Box (CJB) C270h Connector Pinouts

Courtesy of FORD MOTOR CO.

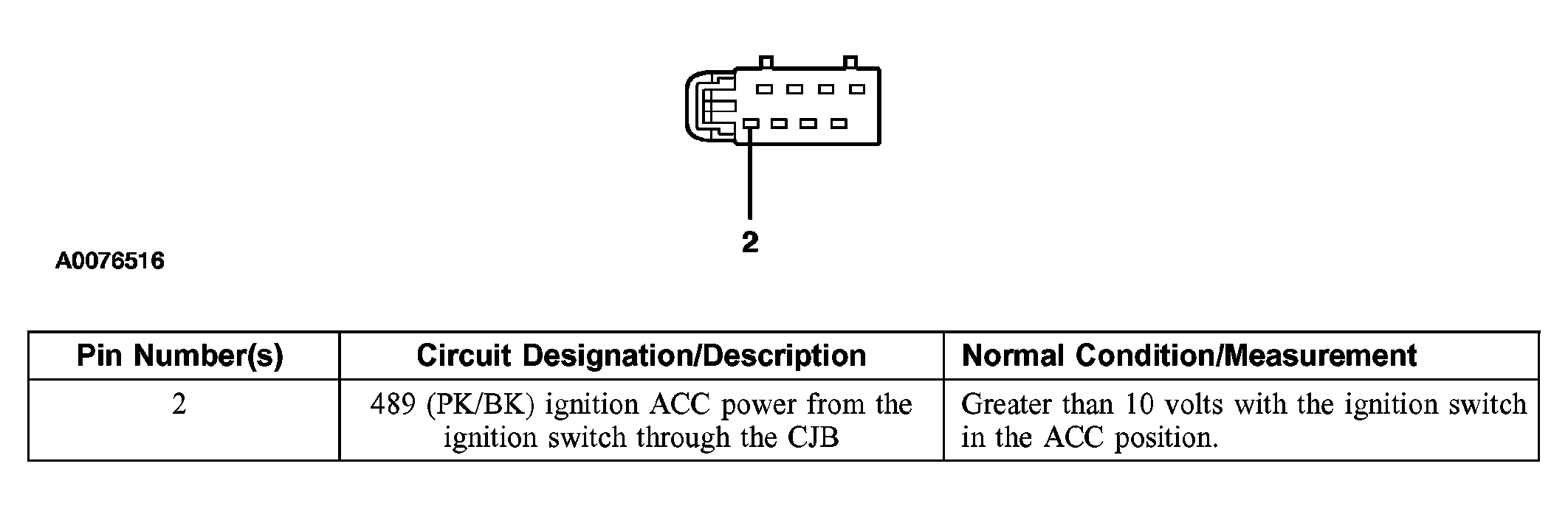

Instrument Cluster C220a

Fig 5: Identifying Instrument Cluster C220a Connector Pinouts

Courtesy of FORD MOTOR CO.

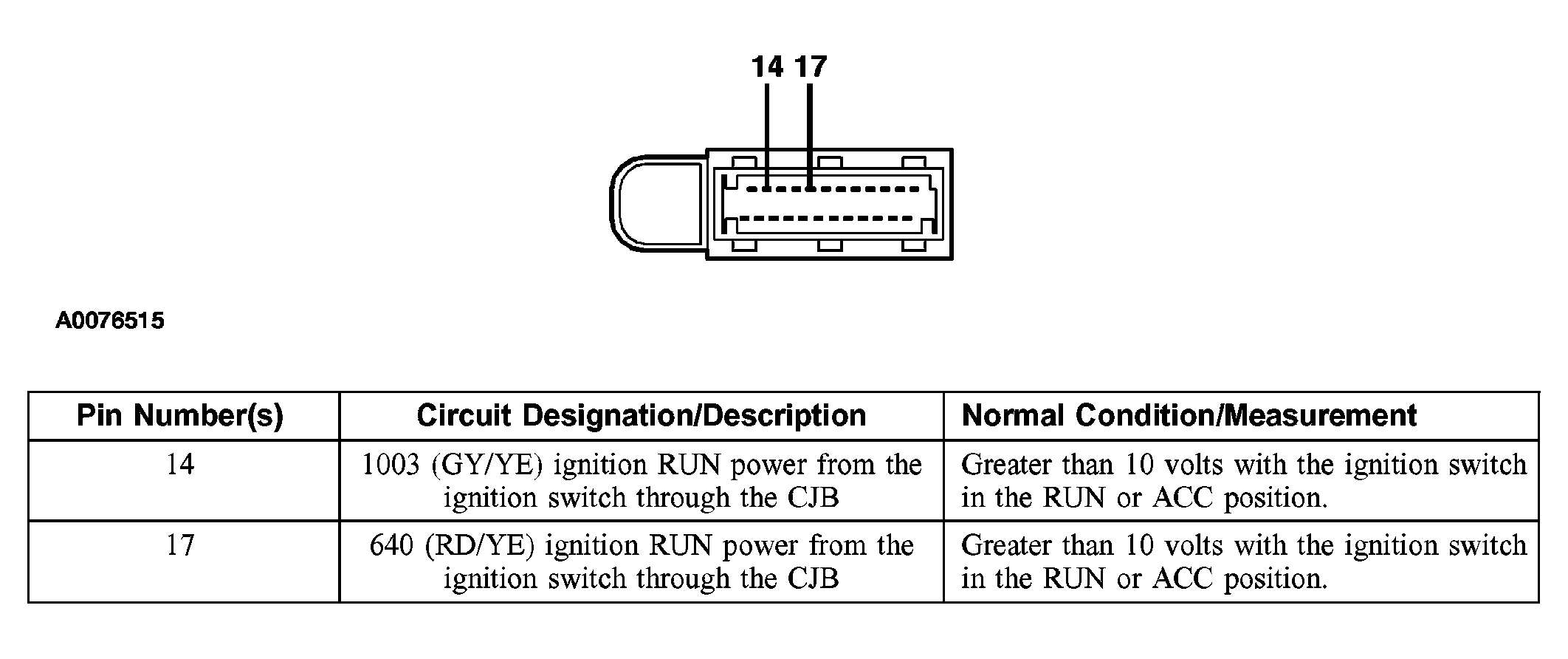

Instrument Cluster C220b

Fig 6: Identifying Instrument Cluster C220b Connector Pinouts

Courtesy of FORD MOTOR CO.

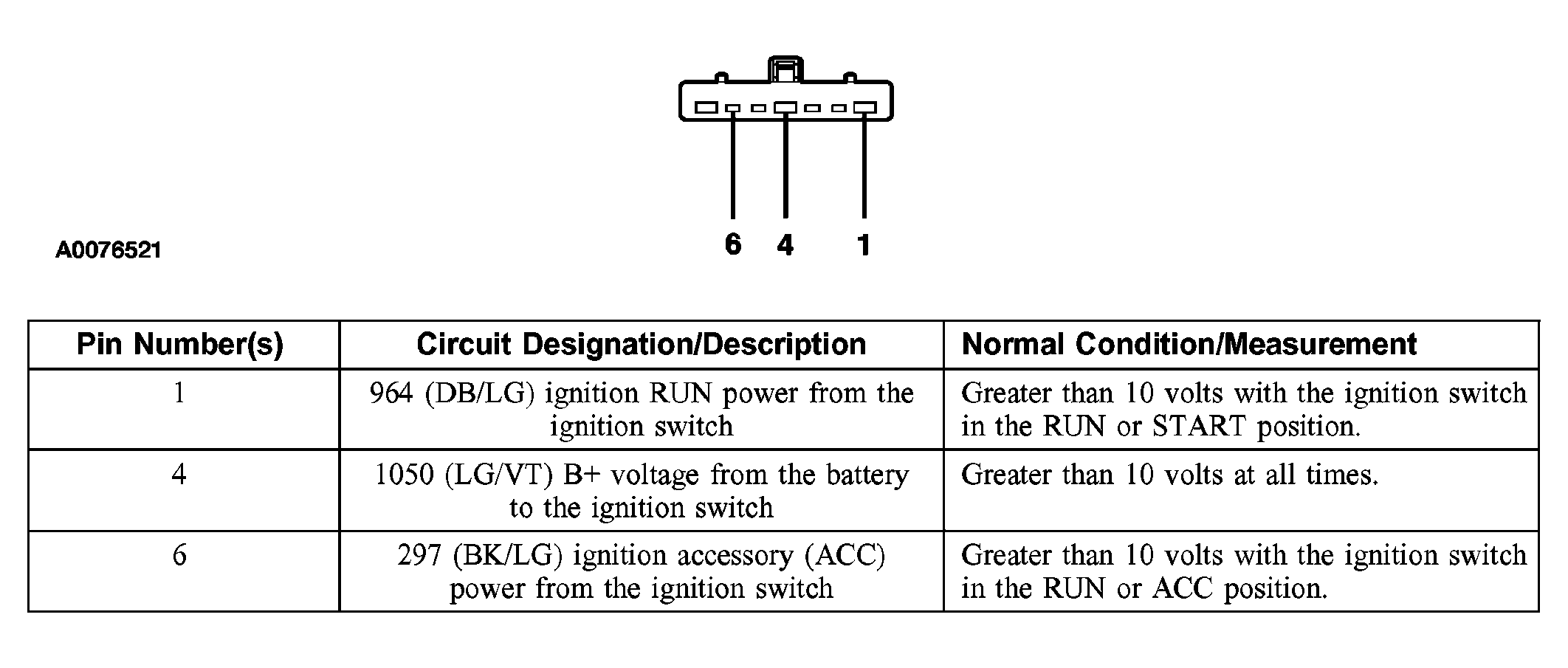

Ignition Switch C250

Fig 7: Identifying Ignition Switch C250 Connector Pinouts

Courtesy of FORD MOTOR CO.
