Restraints Control Module RCM: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system SRS vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: The RESTRAINTS CONTROL MODULE RCM orientation is critical for correct air bag supplemental restraint system SRS operation. If a vehicle equipped with an SRS system has been involved in a collision in which the center tunnel area has been damaged, inspect the mounting and bracket for deformation. If damaged, the RCM must be replaced whether or not the air bags have deployed. In addition, make sure the area of the RCM mounting is restored to its original condition.
WARNING: Vehicle sensor orientation is critical for proper system operation. If a vehicle equipped with an air bag supplemental restraint system SRS is involved in a collision, inspect the sensor mounting bracket and wiring pigtail for deformation. Replace and properly position the sensor or any other damaged SRS components whether or not the air bag is deployed.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
WARNING: The tightening torque of the air bag RESTRAINTS CONTROL MODULE RCM retaining bolts is critical for correct system operation.
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage can result.
NOTE: When installing a new RCM, always make sure the correct RCM is being installed. If an incorrect RCM is installed, erroneous DTCs will result.
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system SRS fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
  1. Depower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM SRS DEPOWERING AND REPOWERING .
  2. If equipped, remove the floor console. For additional information, REFER to INSTRUMENT PANEL AND CONSOLE .
  3. If equipped, remove the 20 percent front seat cushion. Pull up to release the retainers on the 20 percent seat cushion and remove. For additional information, REFER to SEATING .
  4. Disconnect the RESTRAINTS CONTROL MODULE RCM large electrical connector.
    1. Pinch the thumb tab and pivot the connector position assurance lever all the way back until it stops.
    2. Pull out and disconnect the RCM electrical connector.

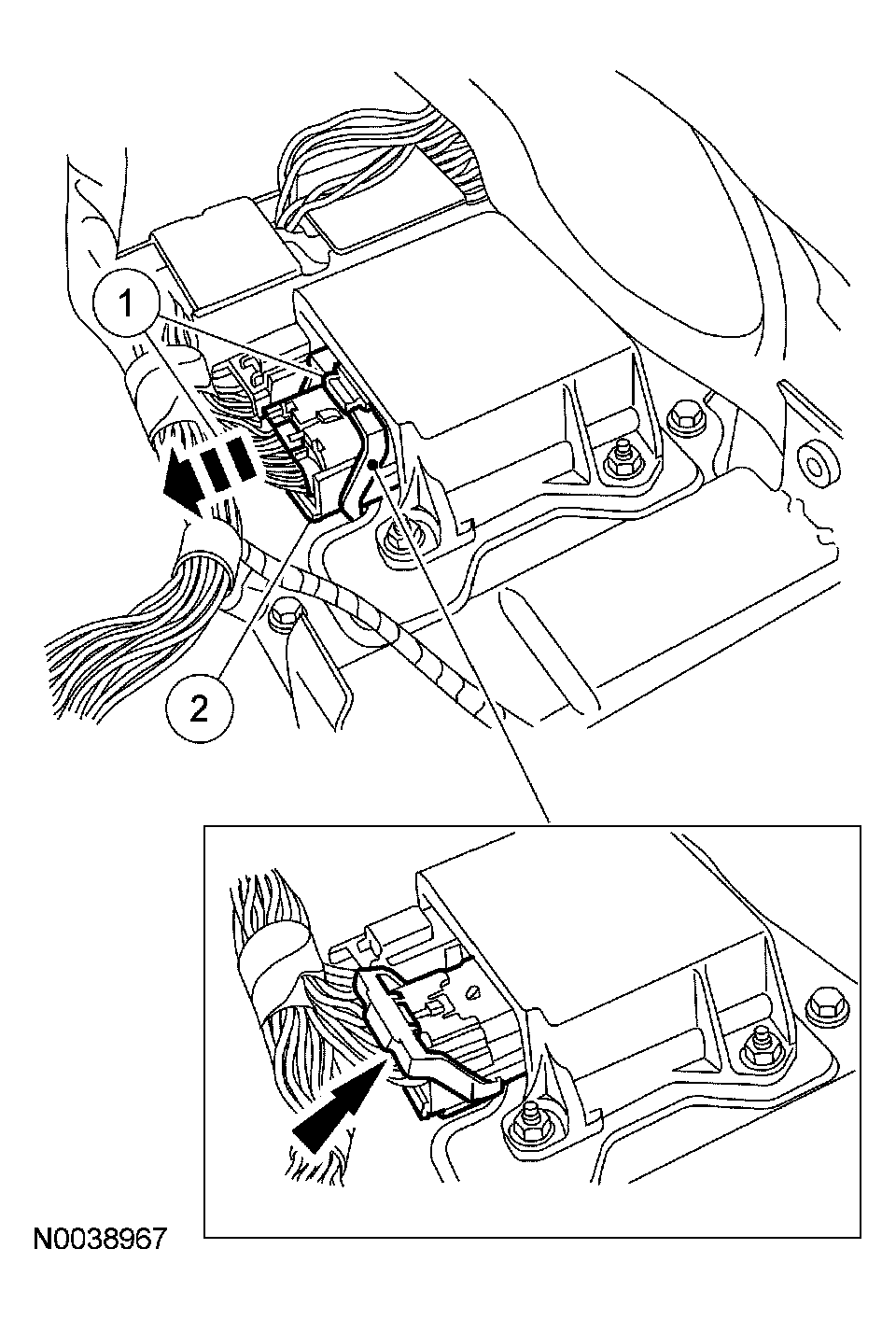

    Fig 1: Disconnecting Restraints Control Module RCM Large Electrical Connector
    G03966721Courtesy of FORD MOTOR CO.
  5. Disconnect the RCM small electrical connector.
  6. Remove the RCM bolts.
  7. Remove the RCM.
