Passenger Air Bag Module: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the passenger air bag module electrical connectors.
    2. NOTE: Make sure the J-clips are in place before positioning the passenger air bag module to the instrument panel.

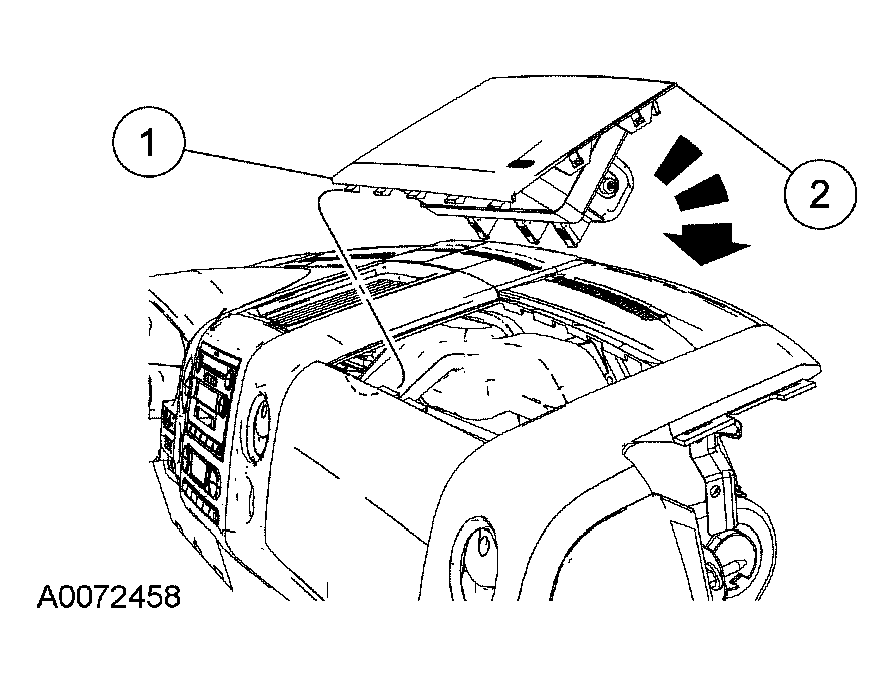

    Fig 1: Positioning Passenger Air Bag Module Into Instrument Panel
    G03966731Courtesy of FORD MOTOR CO.
  2. Position the passenger air bag module into the instrument panel.
    1. Angle the rear of the passenger air bag module deployment door so the tabs engage to the instrument panel.
    2. Position the passenger air bag module into place and push down on the deployment door, engaging the remaining tabs.
  3. Install the RH defrost grille.
  4. Install the 2 pushpins retaining the passenger air bag module deployment door to the instrument panel (if equipped).
  5. Install the passenger air bag module bolts.
    • To install, tighten to 9 Nm (80 lb-in).
  6. Close the glove compartment.
  7. Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM SRS DEPOWERING AND REPOWERING .
