Occupant Classification Sensor: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) CHART

G03878958
Worldwide Diagnostic System (WDS) Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

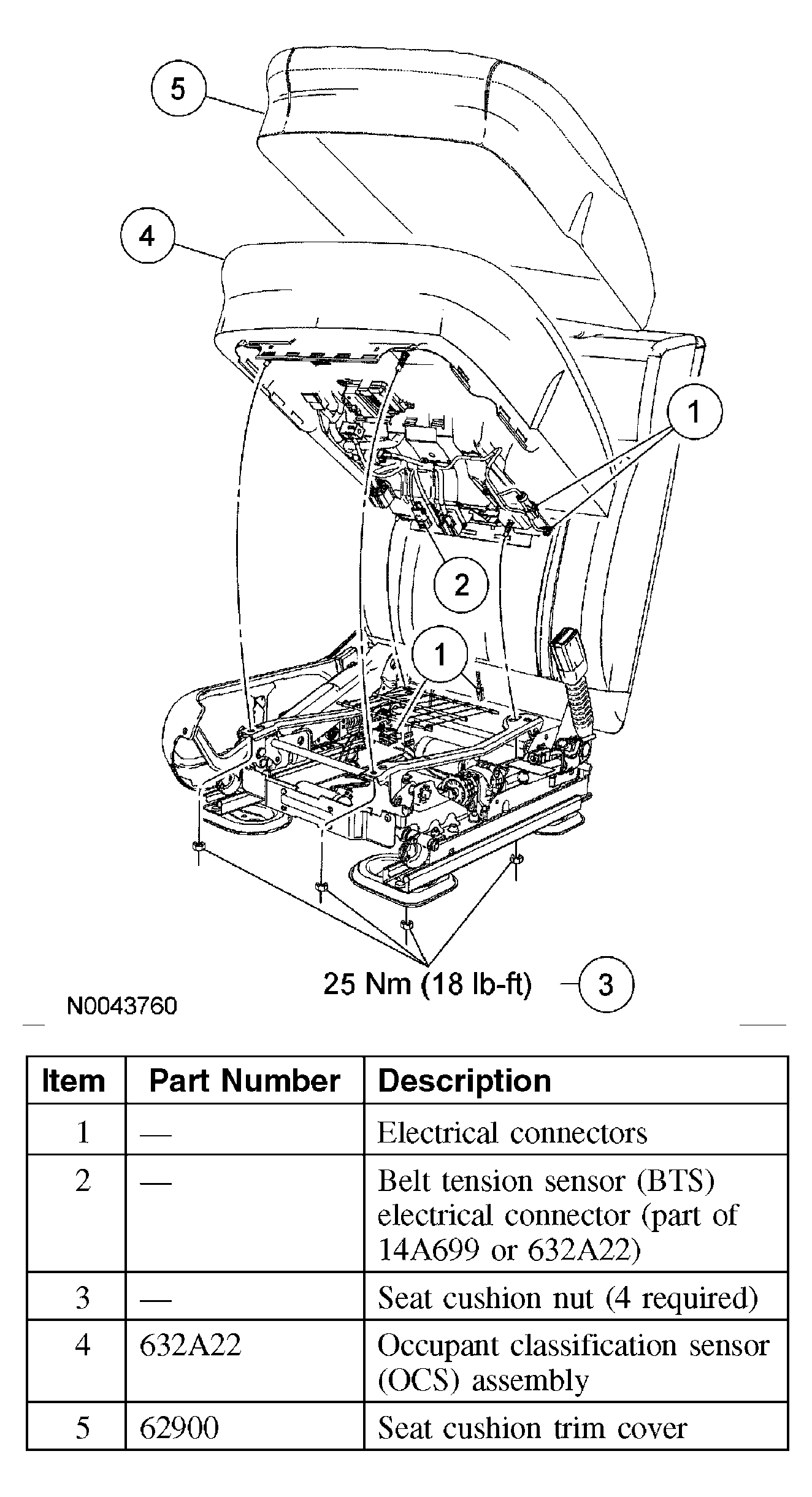

Fig 1: Identifying Occupant Classification Sensor
G03966737Courtesy of FORD MOTOR CO.
