Driver Air Bag Module: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: The clockspring electrical connectors are unique and cannot be reversed when connected to the driver air bag module. Match the electrical connector key to the keyway in the driver air bag module. Do not force the electrical connectors into the driver air bag module.
  1. Install the driver air bag module.
    1. Connect the horn electrical connector.
    2. Connect the black driver air bag module electrical connector.
    3. Connect the gray driver air bag module electrical connector.
      4. CAUTION: Make sure the driver air bag module wiring lays over the steering wheel bolt and does not get trapped while positioning the driver air bag module to the steering wheel.

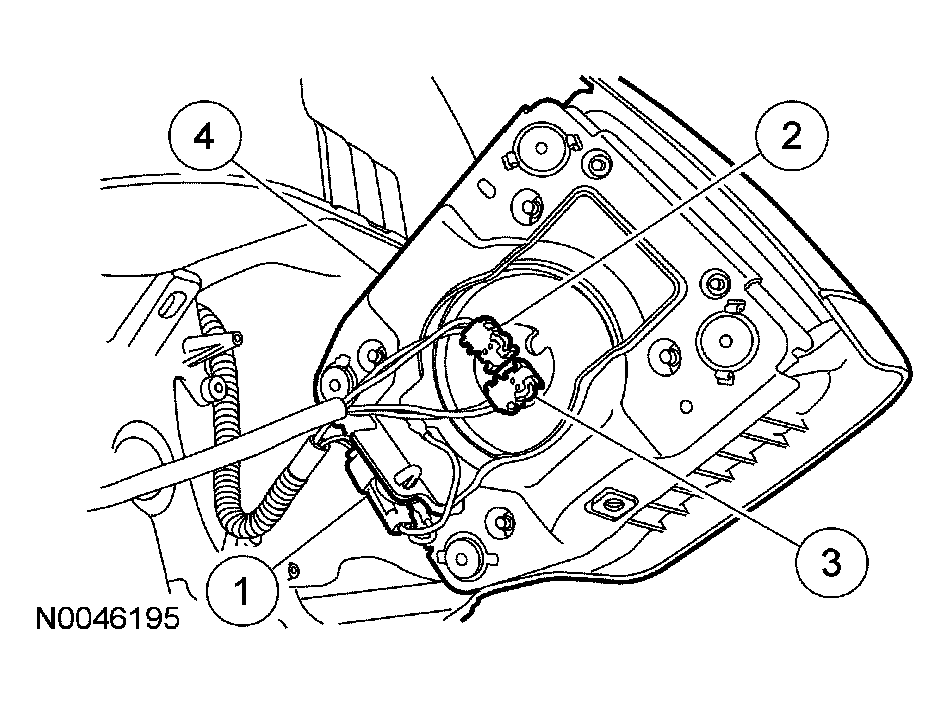

      Fig 1: Positioning Driver Air Bag Module To Steering Wheel
      G03966701Courtesy of FORD MOTOR CO.
    4. Position the driver air bag module to the steering wheel.
  2. Install the 2 driver air bag module bolts.
    • Tighten to 10 Nm (89 lb-in).
  3. Install the 2 steering wheel back cover plugs.
  4. Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM SRS DEPOWERING AND REPOWERING .
