Removal And Installation: Clockspring: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Incorrect centralization may result in premature component failure. If in doubt when centralizing the clockspring. Repeat the centralizing procedure. Failure to follow this instruction may result in personal injury.
    CAUTION: Make sure the road wheels are in the straight-ahead position.
  1. If the vehicle's clockspring has rotated out of center, follow these steps to center the clockspring.
    1. Hold the clockspring outer housing stationary.
      2. CAUTION: Overturning will destroy the clockspring. The internal ribbon wire acts as the stop and can be broken from its internal connection.
    2. While turning the rotor counterclockwise, carefully feel for the ribbon wire to run out of length and for a slight resistance. Stop turning at this point.
    3. Turn the clockspring clockwise approximately 3 turns. This is the center point of the clockspring.
      • Do not allow the rotor to turn from this position. To prevent accidental rotation until the clockspring is installed, 2 pieces of tape may be applied to the clockspring.

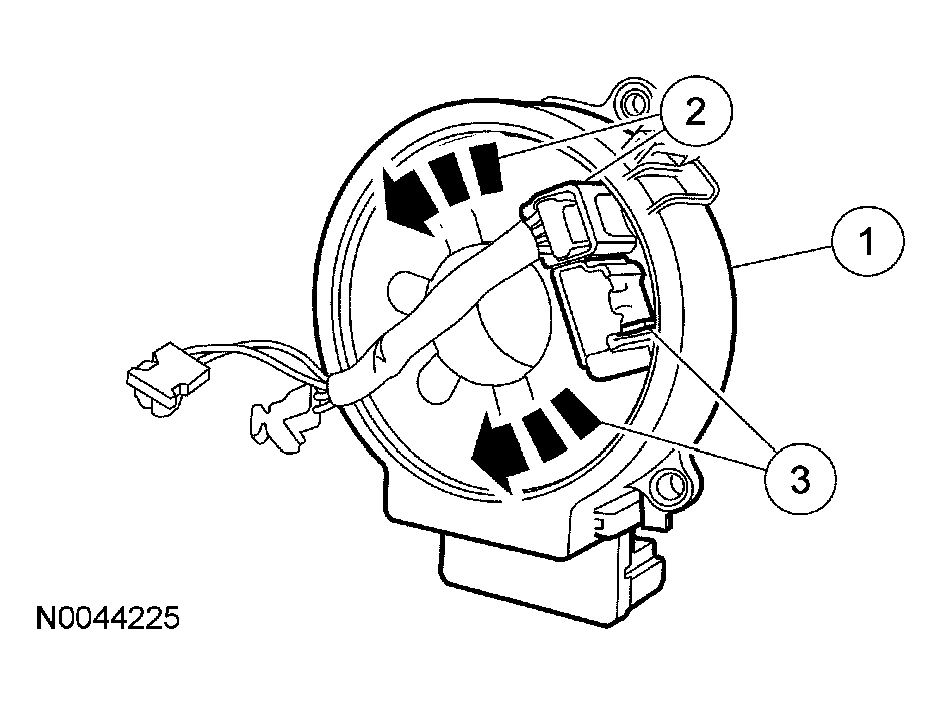

        Fig 1: Centering Clockspring
        G03966734Courtesy of FORD MOTOR CO.
    2. NOTE: Slight turning of the clockspring rotor is allowable for alignment purposes to the steering column.
  2. With the flats of the clockspring aligned to the flats of the steering column, slide the clockspring onto the steering column.
    • For vehicles receiving a new clockspring, remove the retaining pin.
    • For vehicles reusing the clockspring that was removed, remove the tape.

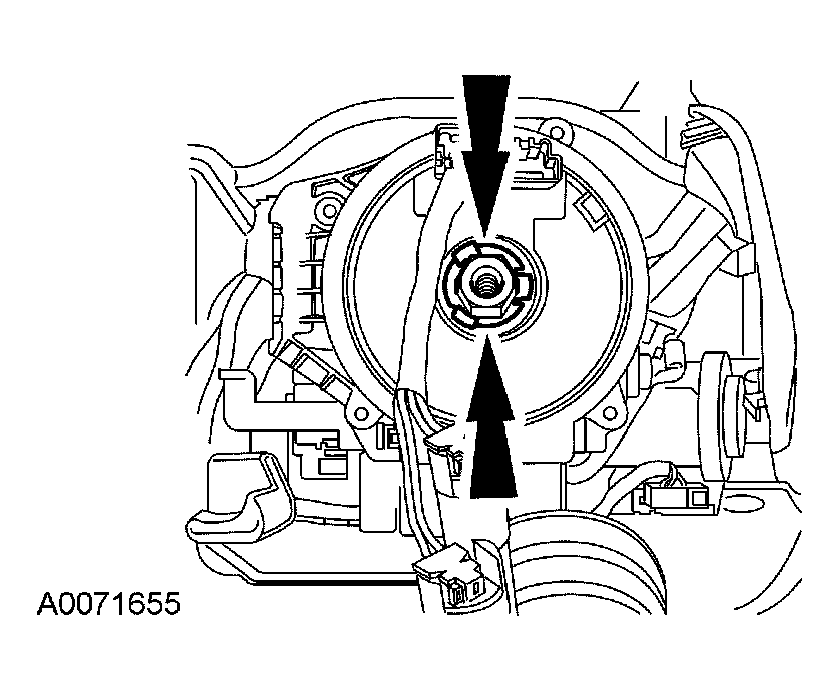

      Fig 2: Sliding Clockspring Onto Steering Column
      G03966735Courtesy of FORD MOTOR CO.
  3. Connect the clockspring electrical connectors.
    • Make sure to align and completely seat the electrical connectors.
  4. Install the multi-function switch and screw.
  5. Install the upper steering column shroud and shroud screw.
  6. Install the lower steering column shroud and screw.
  7. Install the steering wheel. For additional information, REFER to STEERING COLUMN .
  8. Install the driver air bag module. For additional information, refer to DRIVER AIR BAG MODULE .
  9. Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM SRS DEPOWERING AND REPOWERING .
