Multifunction Switch C202c

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

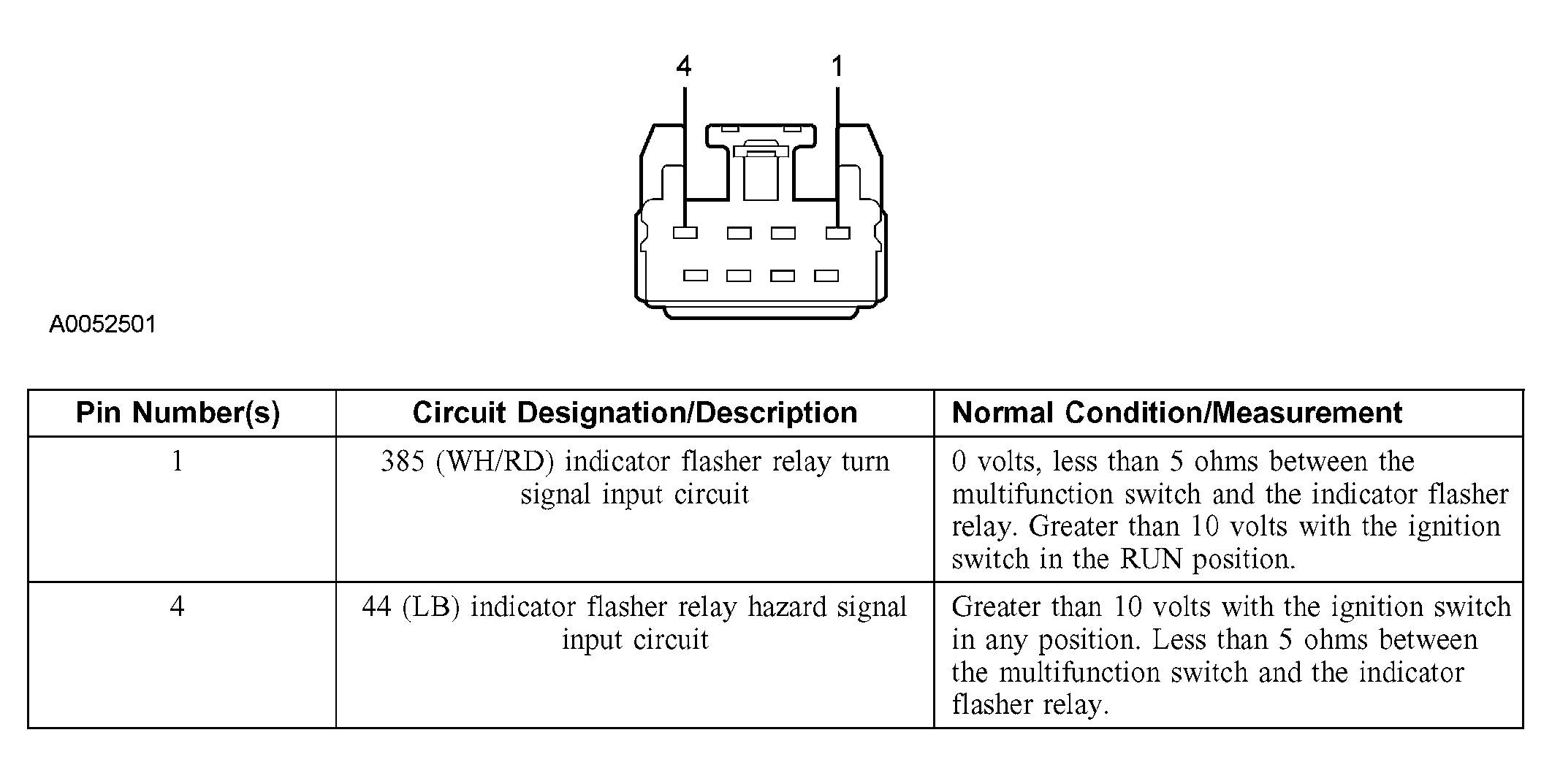

Fig 1: Identifying Multifunction Switch C202C Connector Pins
G03965686Courtesy of FORD MOTOR CO.
