Central Junction Box (CJB) C270f

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

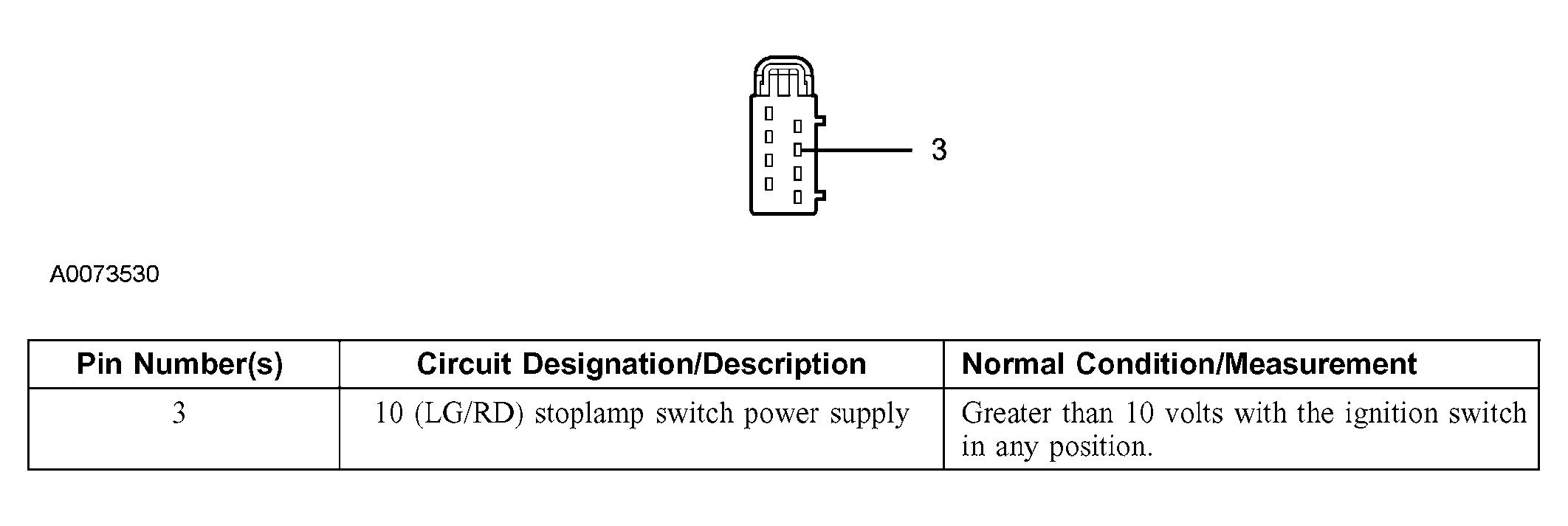

Fig 1: Identifying Central Junction Box C270f Connector Pins
G03965673Courtesy of FORD MOTOR CO.
