LH Front Parking/Turn lamp C1023, RH Front Parking/Turn lamp C1043

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

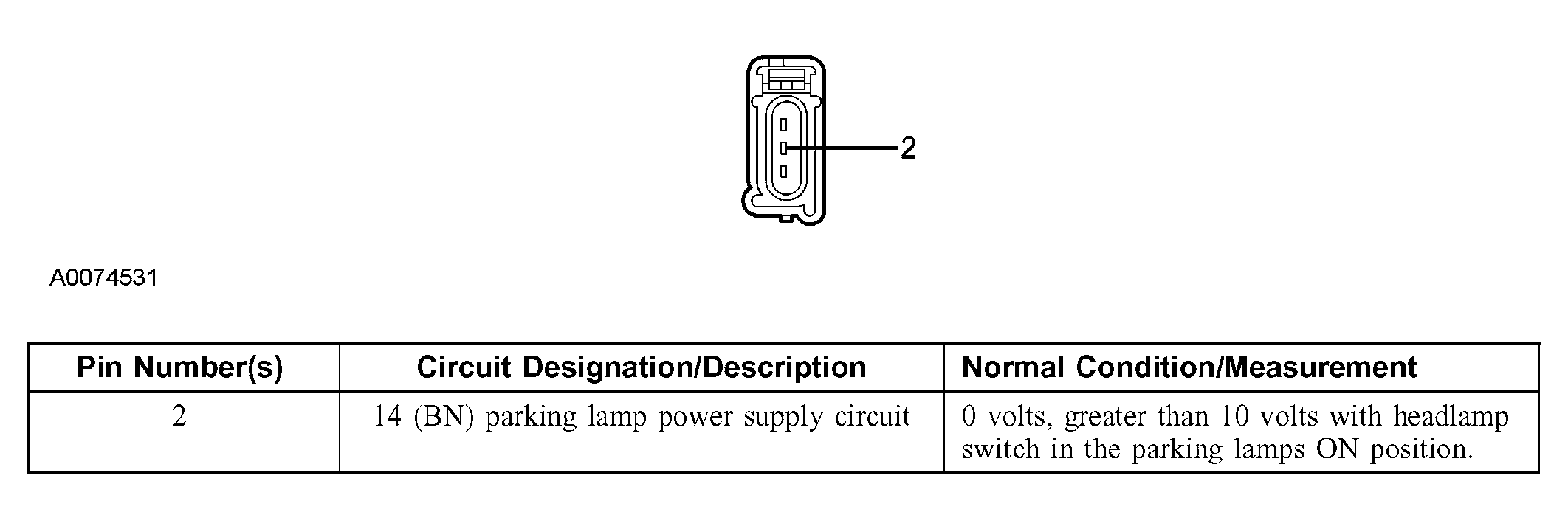

Fig 1: Identifying LH Front Parking/Turn Lamp C1023 And RH Front Parking/Turn Lamp C1043 Connector Pins
G03965707Courtesy of FORD MOTOR CO.
