Fog Lamp Relay C2241

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

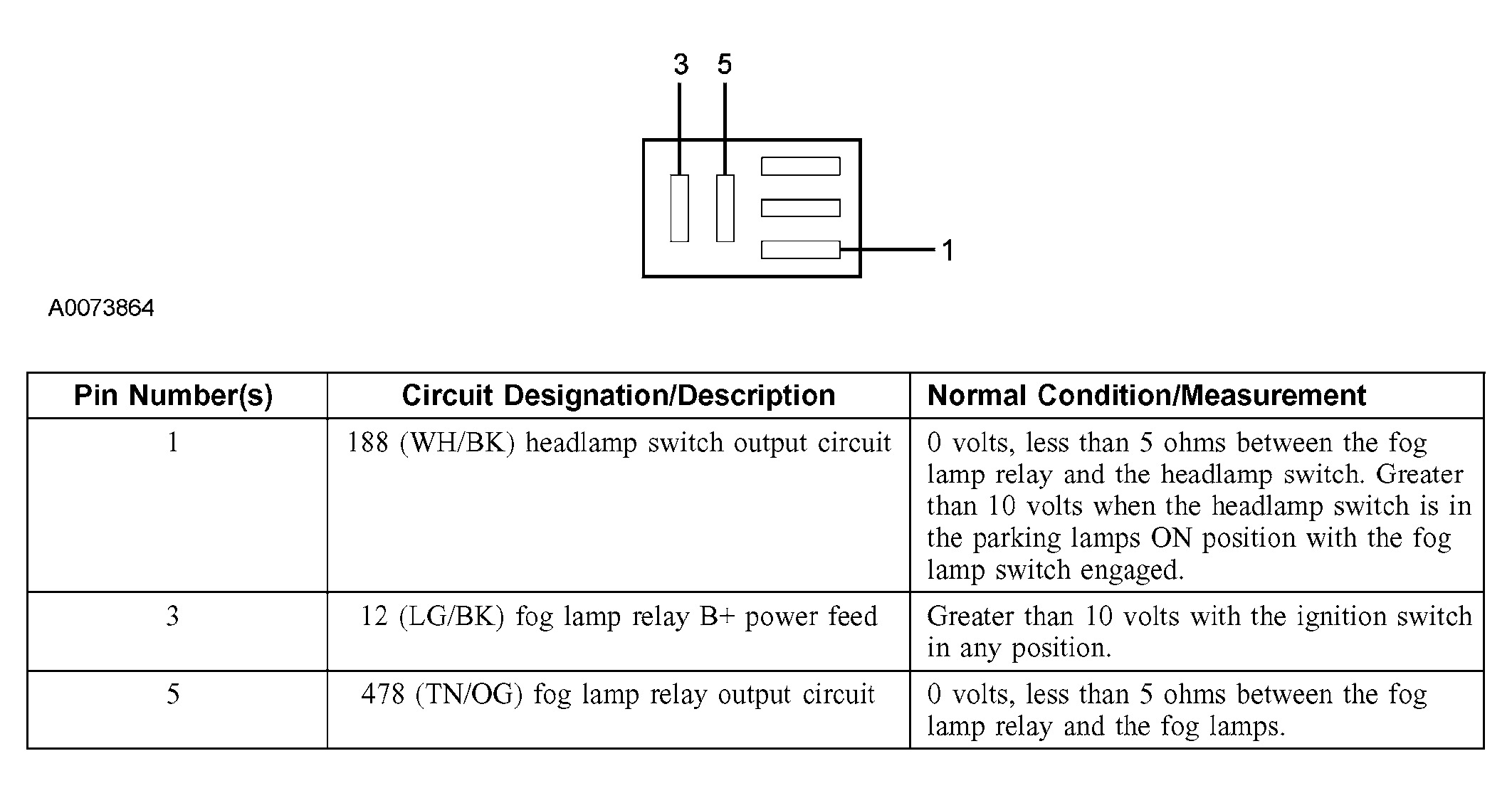

Fig 1: Identifying Fog Lamp Relay C2241 Connector Pins
G03965724Courtesy of FORD MOTOR CO.
