Instrument Panel - Exploded View

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

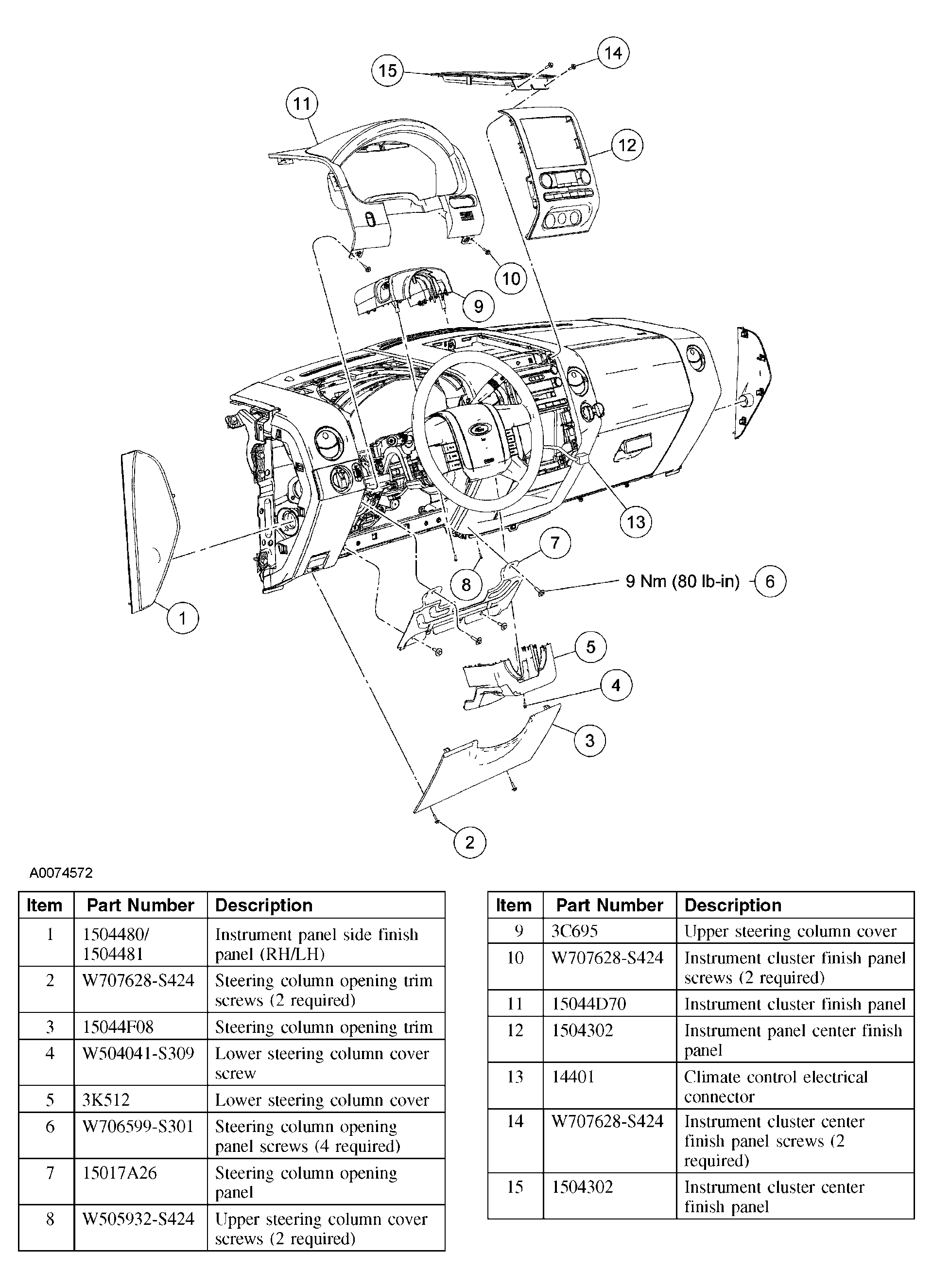

Fig 1: Exploded View Of Instrument Panel (1 Of 4)

Courtesy of FORD MOTOR CO.

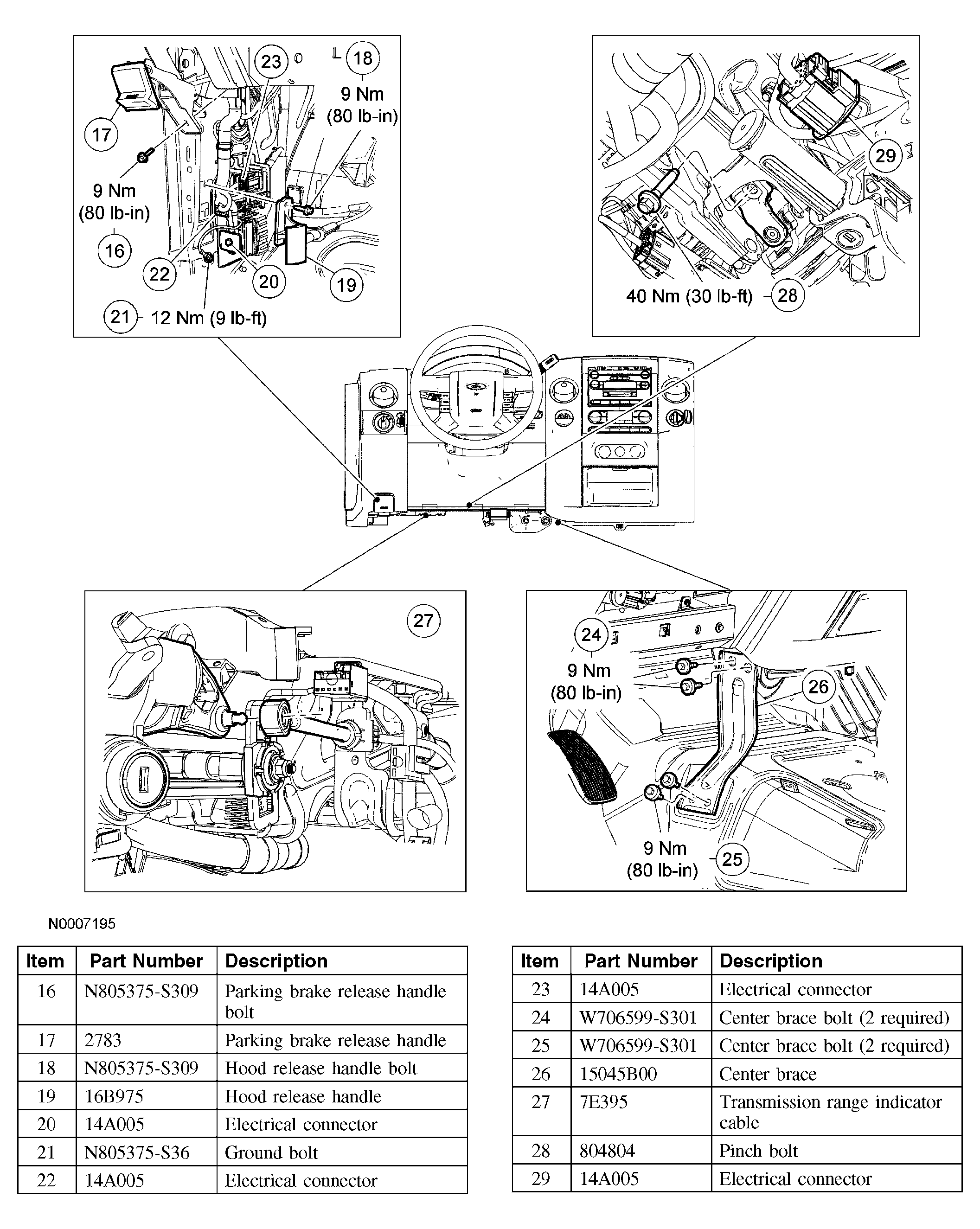

Fig 2: Exploded View Of Instrument Panel (2 Of 4)

Courtesy of FORD MOTOR CO.

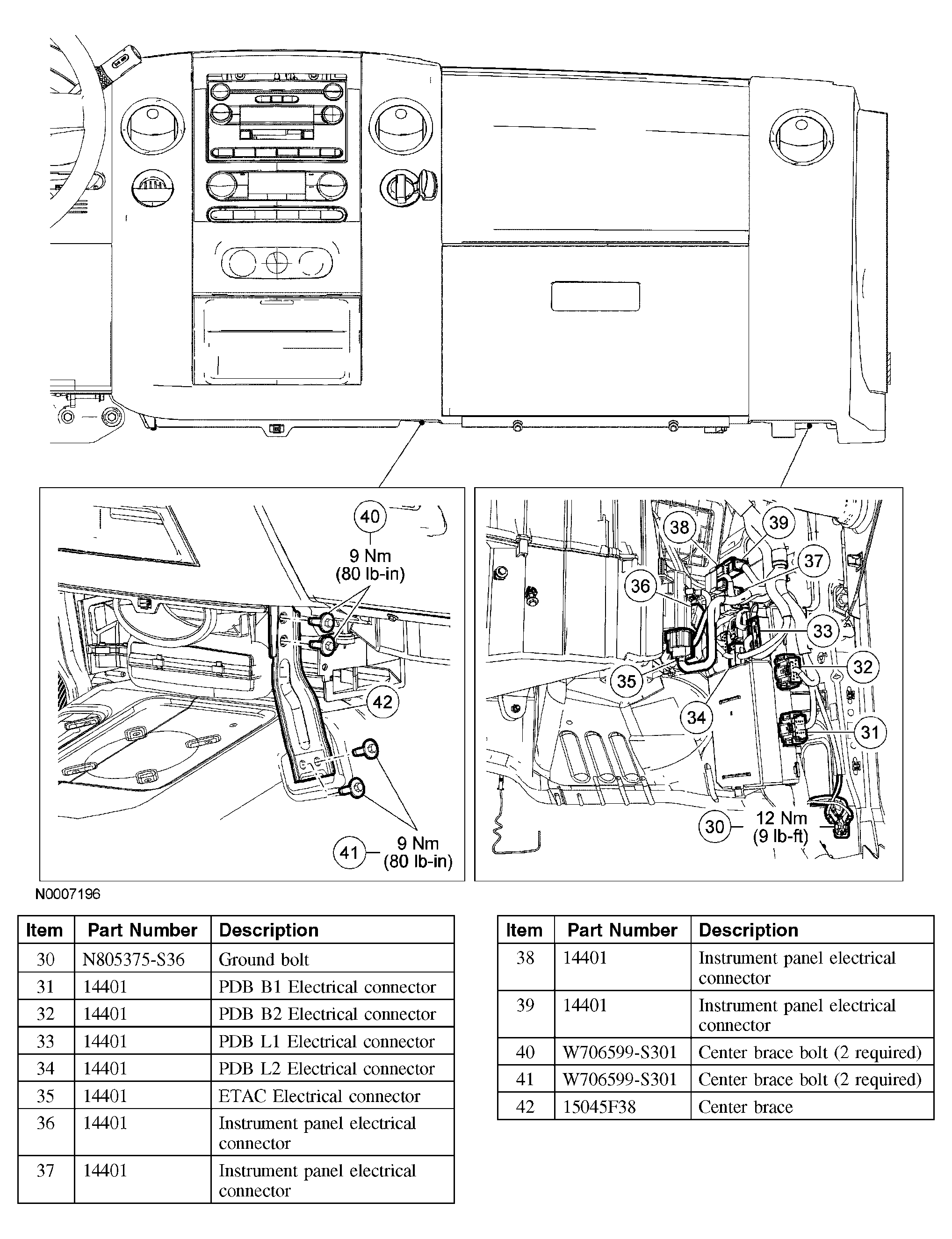

Fig 3: Exploded View Of Instrument Panel (3 Of 4)

Courtesy of FORD MOTOR CO.

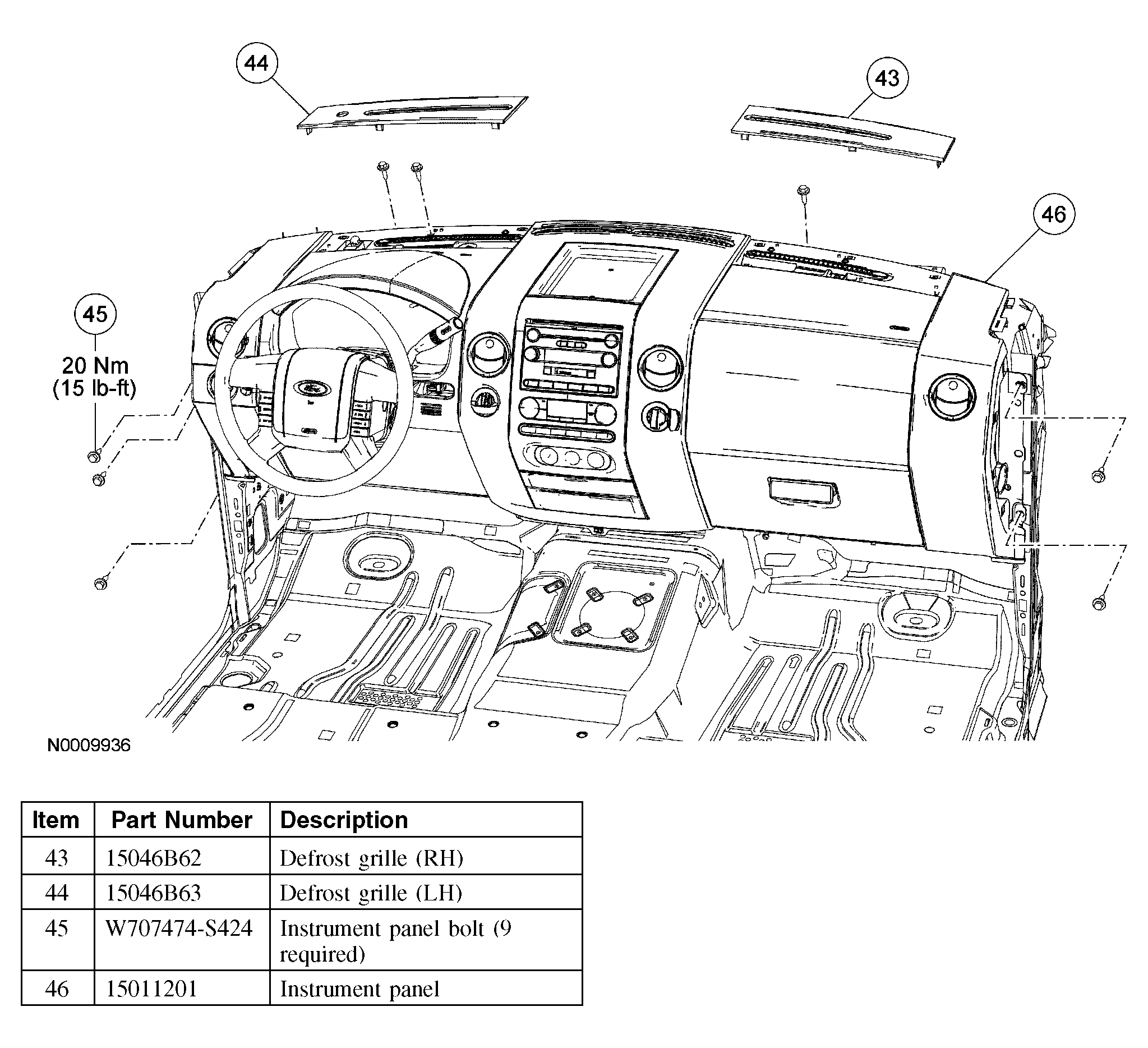

Fig 4: Exploded View Of Instrument Panel (4 Of 4)

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate component procedures.
