WARNING: This page is about a different car, the 2005 Ford Pickup, 2004 Ford Pickup, and 2003 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

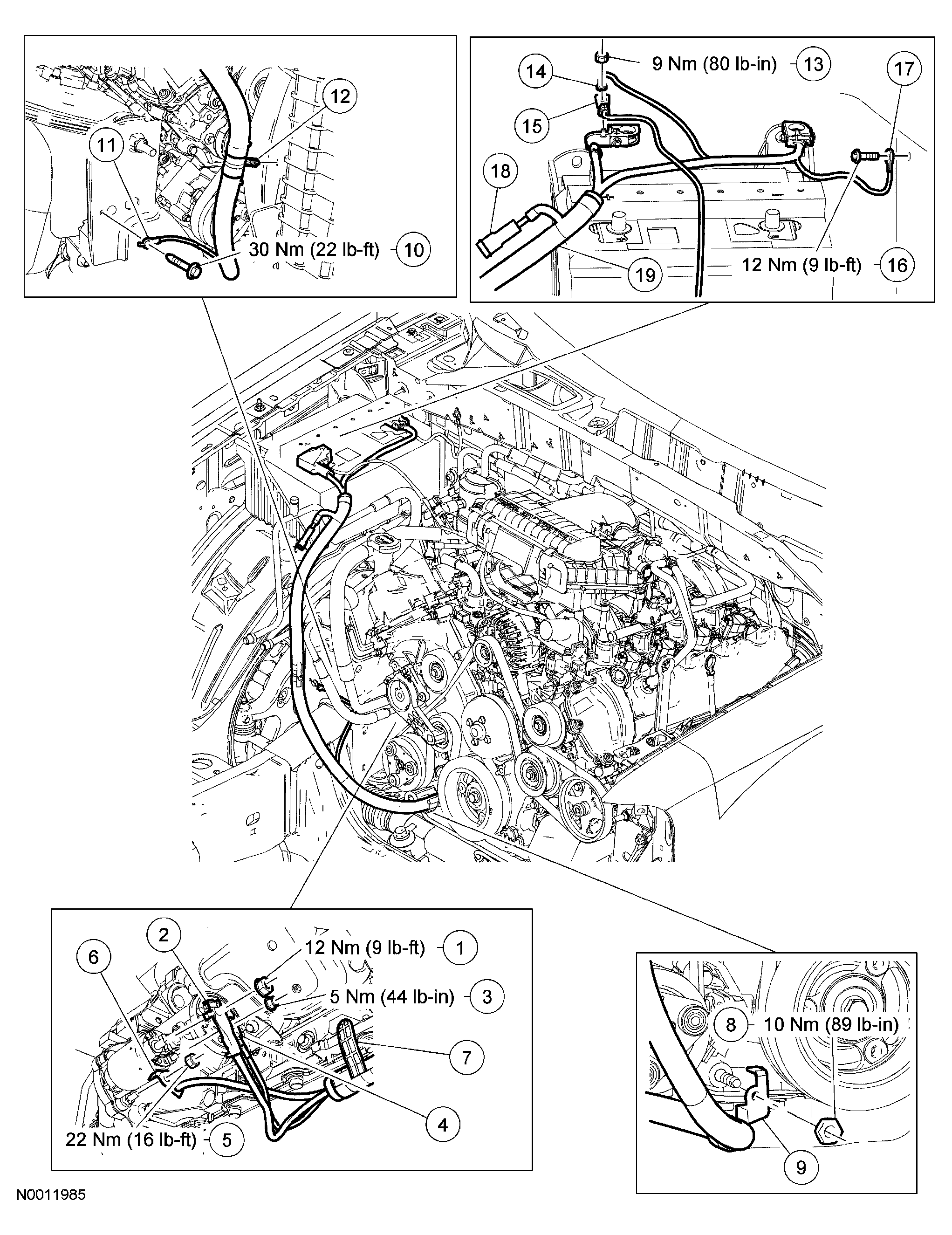

Fig 1: Battery Cables View 4.6L And 5.4L
Courtesy of FORD MOTOR CO.

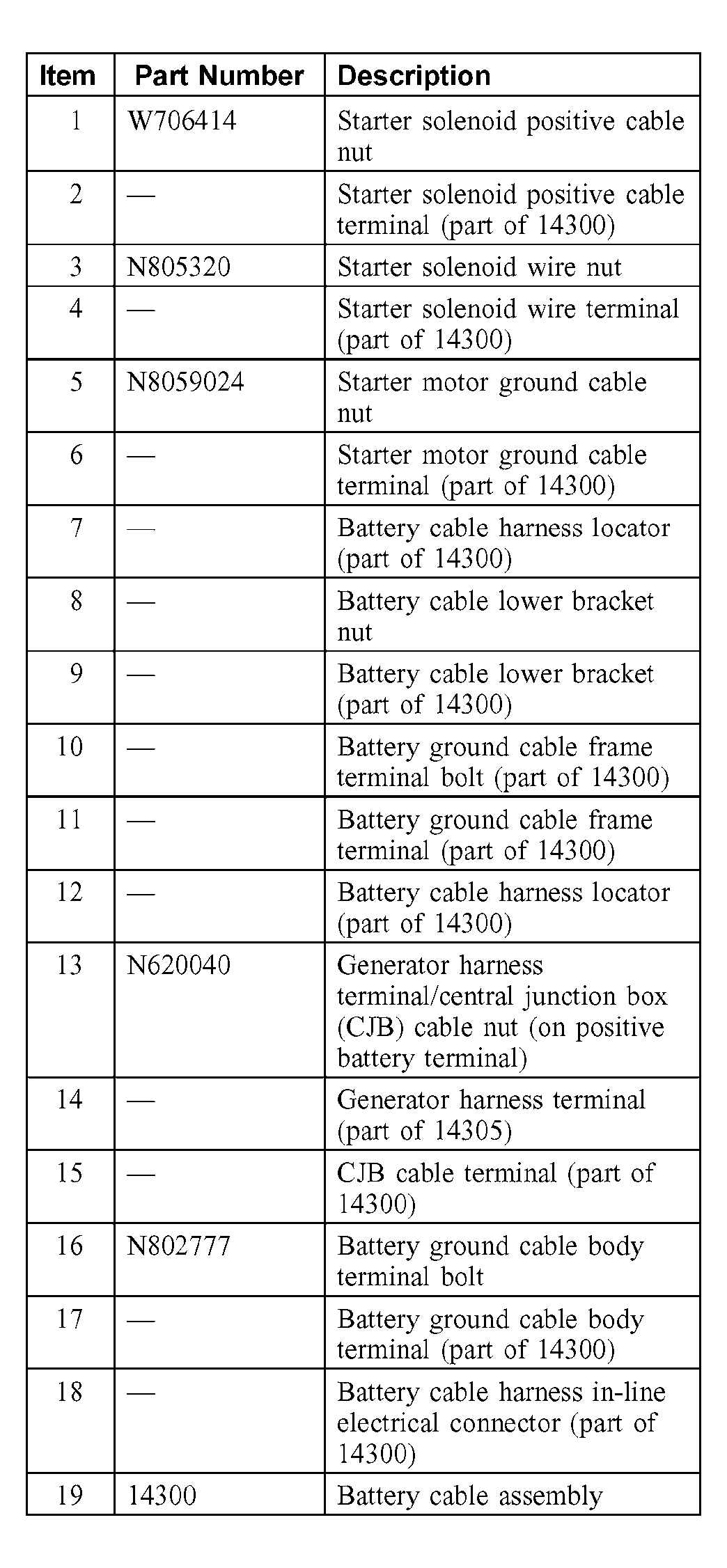

Fig 2: Item Description Of Battery Cables - 4.6L And 5.4L
