Interior Trim - Exploded View

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

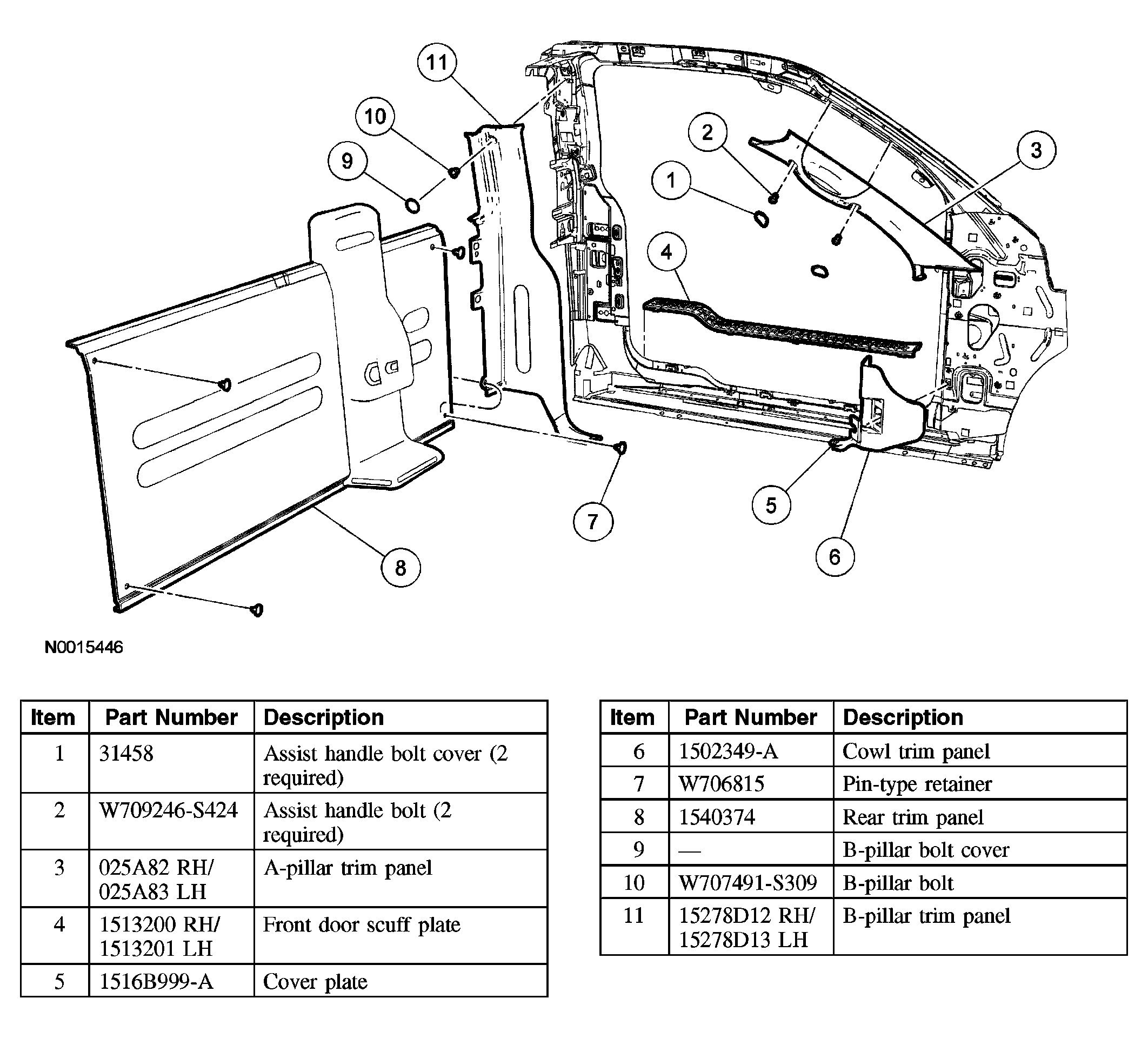

Fig 1: Exploded View Of Interior Trim (Regular Cab)

Courtesy of FORD MOTOR CO.

Fig 2: Exploded View Of Interior Trim (Super Cab)

Courtesy of FORD MOTOR CO.

Fig 3: Exploded View Of Interior Trim (Super Crew)

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate component procedures.
