Parking Brake Shoes: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Lubricate the parking brake shoes where the shoe contacts the wear pad on the backing plate.
  1. Position the parking brake shoes and attach the retracting spring.
  2. Install the 2 brake shoe hold-down pins and springs.
  3. Install the brake shoe adjusting screw spring.
    4. NOTE: Completely retract the parking brake adjusting screw before installation.
  4. Install the brake shoe adjusting screw.
  5. Use the special tool to measure the inside diameter of the parking brake drum.
  6. Adjust the parking brake shoe clearance to 0.6 mm (0.02 in) less than the inside diameter of the parking brake drum.
  7. Make sure that the parking brake shoes are correctly centered by measuring across the center point of the shoes.

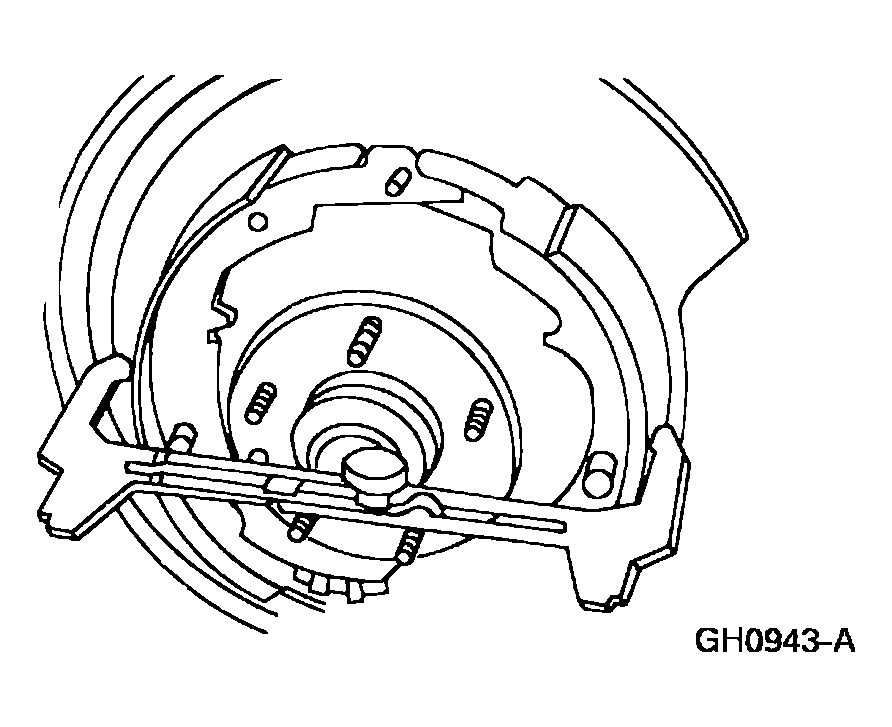

    Fig 1: Measuring Across Center Point Of Shoes
    G03913328Courtesy of FORD MOTOR CO.
  8. Rotate the parking brake shoe adjuster wheel to achieve the correct parking brake shoe-to-brake disc clearance.
  9. Install the rear brake disc. For additional information, refer to REAR DISC BRAKE .
  10. Reload the tension on the parking brake cable. For additional information, refer to PARKING BRAKE CABLE TENSION RELEASE .
