Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parking brake control. For additional information, refer to PARKING BRAKE CONTROL .

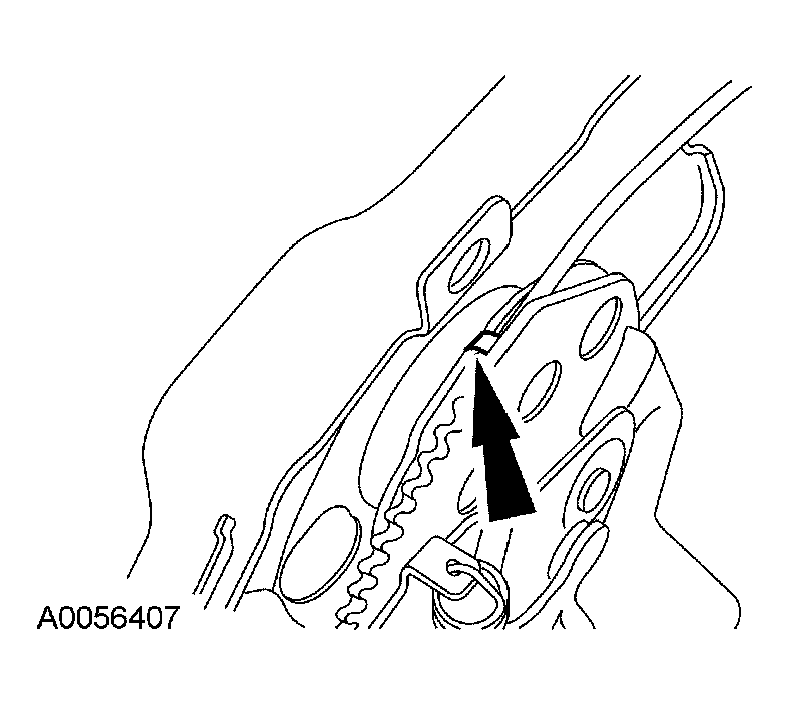

    2. NOTE: The parking brake control take-up spool tab may need to be bent aside to allow the cable to be removed.
    Fig 1: Disconnecting Front Parking Brake Cables From Parking Brake Control
    G03961328Courtesy of FORD MOTOR CO.
  2. Disconnect the front parking brake cables from the parking brake control.
  3. Release the front parking brake cable conduit from the parking brake control.
  4. To install, reverse the removal procedure.
    • Inspect the parking brake system for correct operation.
