Removal And Installation: Halfshaft: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

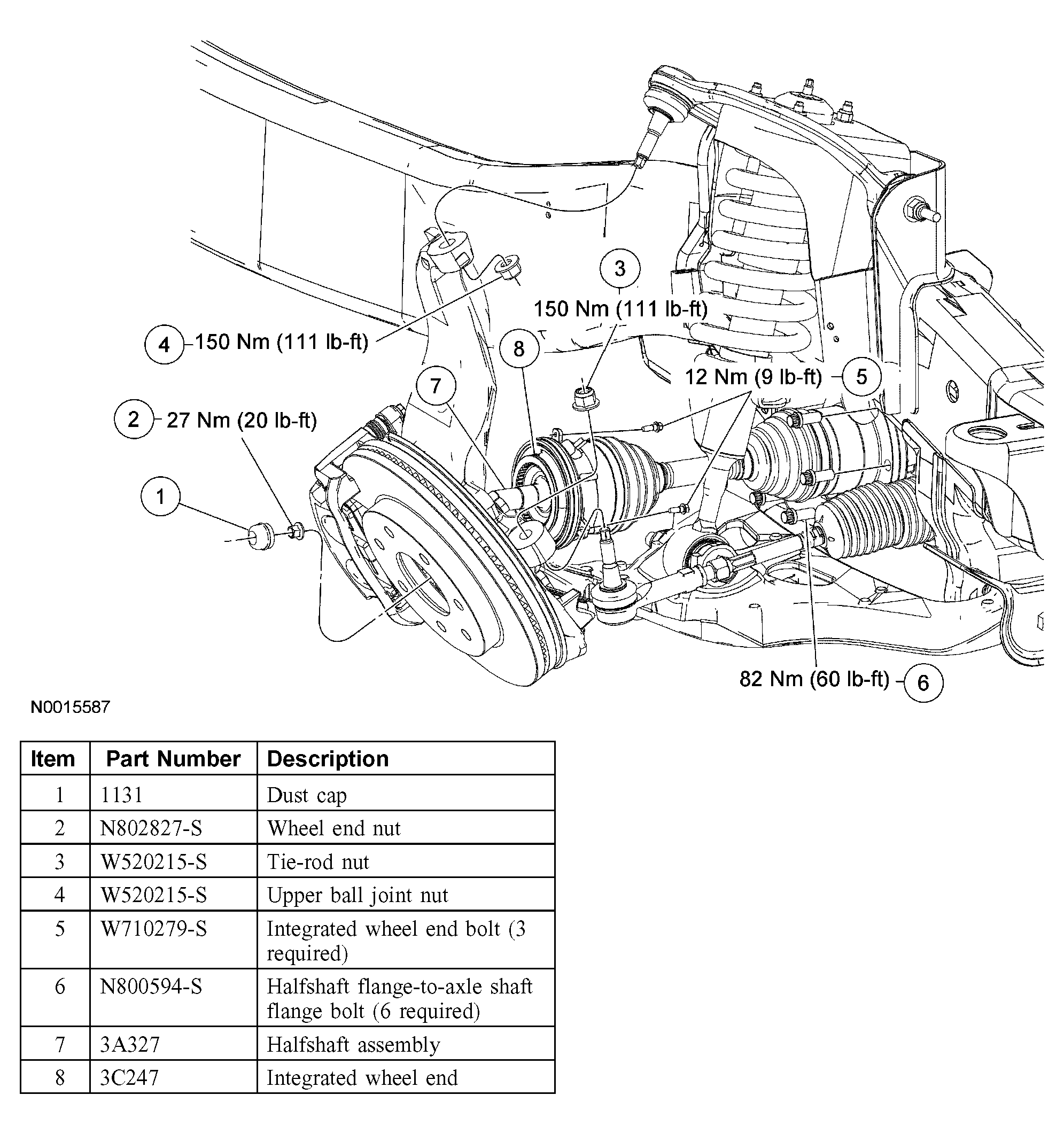

Fig 1: Exploded View Of Halfshaft
G03961227Courtesy of FORD MOTOR CO.
