Serpentine Belt Routing (3.0L V6 VIN "2" & "U")

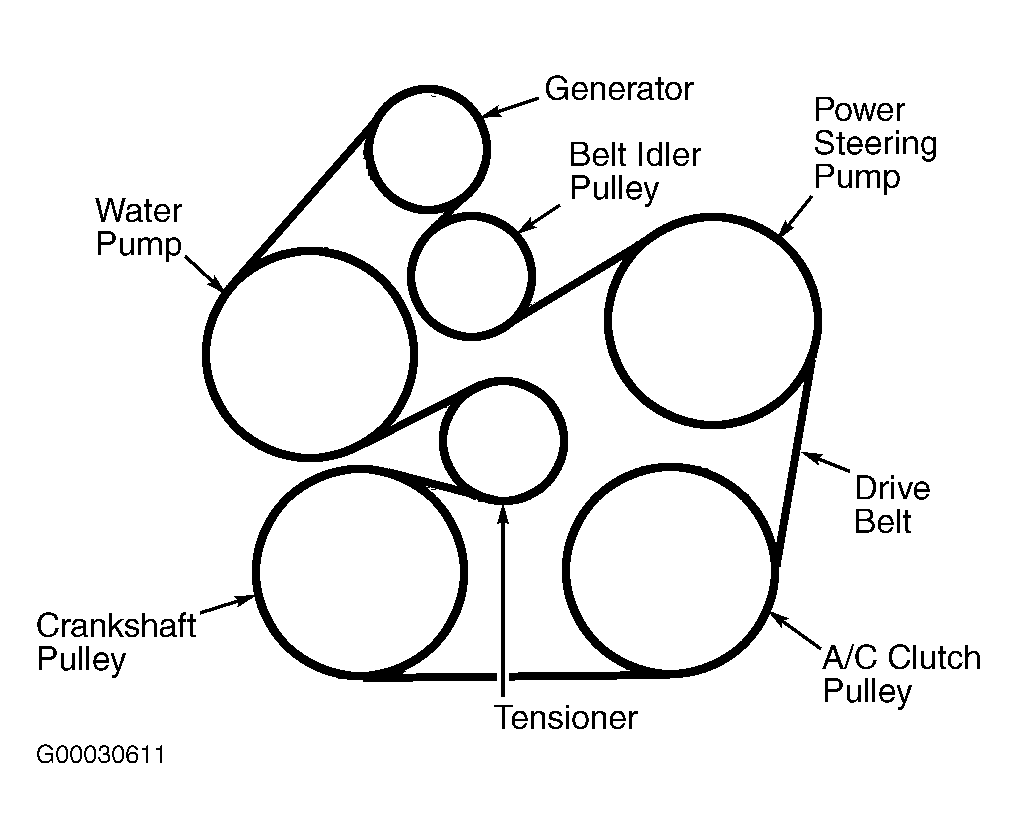

Fig 1: Serpentine Belt Routing (3.0L V6 VIN "2" & "U")

G00030611

Courtesy of FORD MOTOR CO.
