Ford
>>
2000
>>
Contour SE, 2.5 L, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Fuses & Circuit Breakers - Built After May 3, 1999
>>
Identification
>>
Fog Lamp Relay
Fog Lamp Relay
NOTE:
Fog lamp relay (C785) is located behind left side of dash panel. See
Fig 1
.

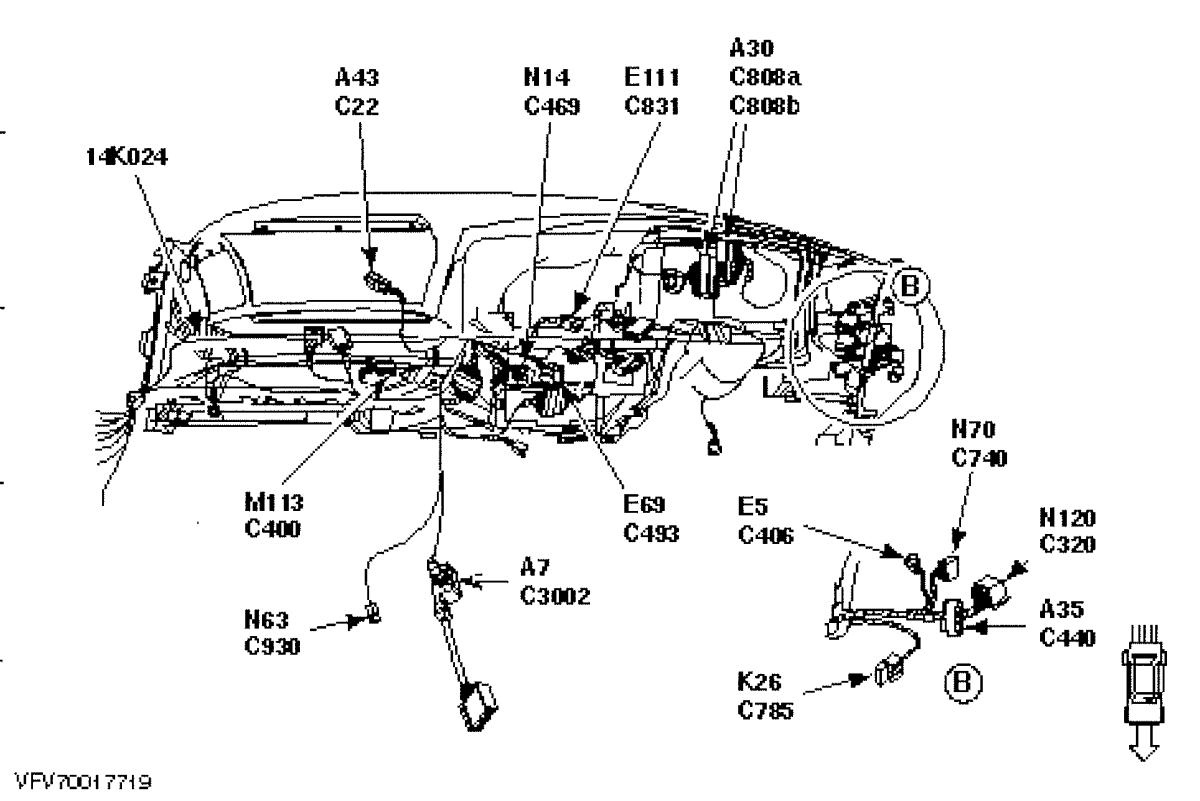

Fig 1: Behind Left Side Of Dash
Courtesy of ISUZU MOTOR CO.
