Battery Junction Box
NOTE:

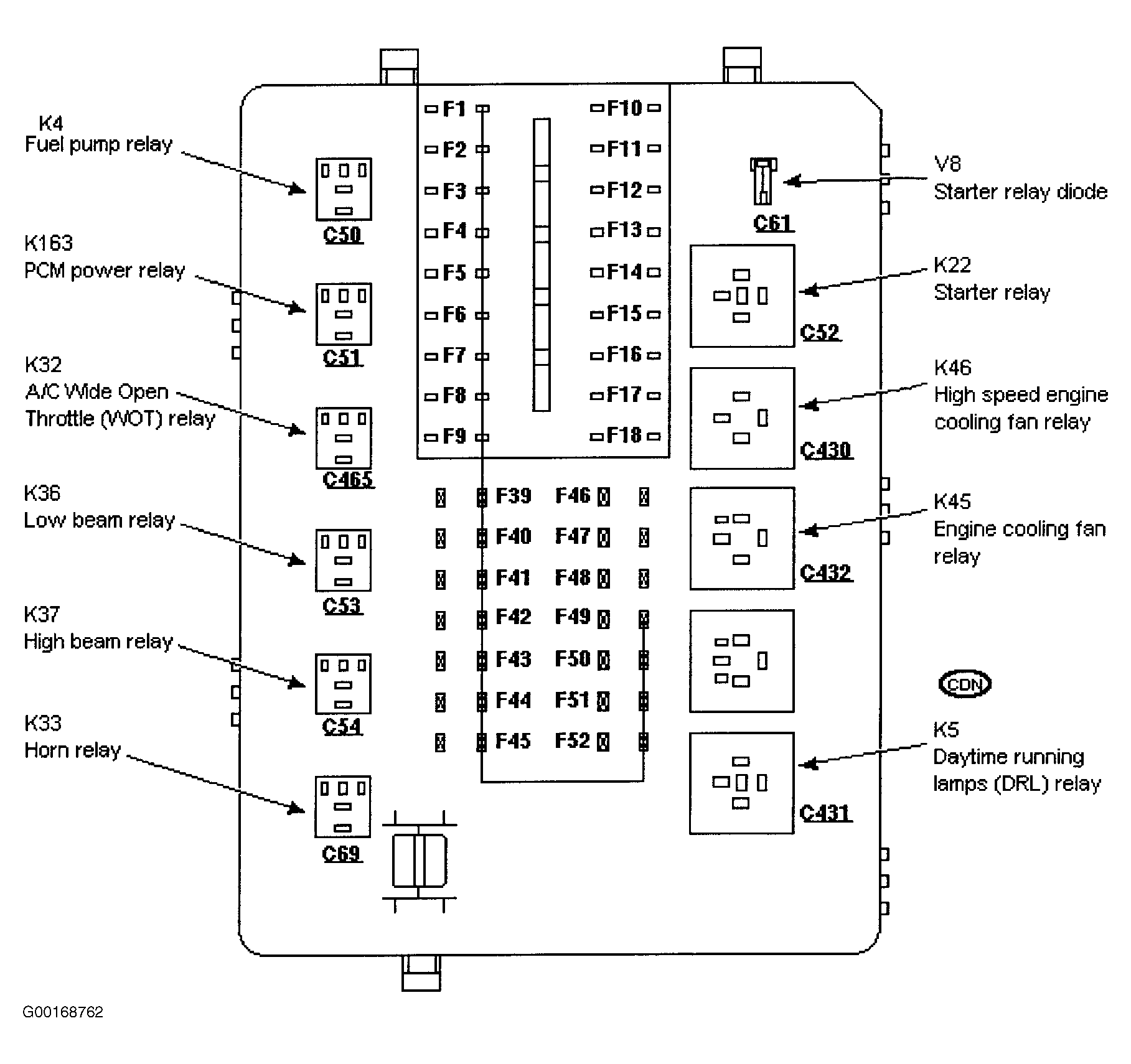

Battery junction box is located on the drivers side of engine compartment, near battery. See Figure and Figure
. Battery junction box may also be referred to power distribution box.
BATTERY JUNCTION BOX FUSE & CIRCUIT IDENTIFICATION
| Fuse Number | Amperage | Circuit |
|---|---|---|
| F1 | ..... | Not Used |
| F2 | 7.5 | Generator |
| F3 | 20 | Fog Lamp Relay |
| F4 | ..... | Not Used |
| F5 | ..... | Not Used |
| F6 | 3 | Powertrain Control Module, (Bi-Fuel Control Module, 2000 Only) |
| F7 | 20 | Horn Relay/Multifunction Switch |
| F8 | ..... | Not Used |
| F9 | 15 | Fuel Pump Relay |
| F10 | ..... | Not Used |
| F11 | 20 | PCM Power Relay/Ignition Transformer |
| F12 | ..... | Not Used |
| F13 | 20 | Heated Oxygen Sensors |
| F14 | 7.5 | ABS Control Module |
| F15 | 7.5 | Headlamp (Right) |
| F16 | 7.5 | Headlamp (Left) |
| F17 | 7.5 | Headlamp (Right), Instrument Cluster |
| F18 | 7.5 | Headlamp (Left) |
| F39 | ..... | Not Used |
| F40 (1999) | 20 | Ignition Switch/Light Switch, Central Junction Box Fuse F26 |
| F40 (2000) | 20 | Light Switch |
| F41 (1999) | 20 | PCM Power Relay |
| F41 (2000) | 20 | Ignition Switch, Fuse F26 |
| F42 | 40 | Central Junction Box Fuse F37 |
| F43 | ..... | Not Used |
| F44 | ..... | Not Used |
| F45 | 60 | Ignition Relay |
| F46, F47, F48 | ..... | Not Used |
| F49 | 60 | Engine Cooling Fan Relays |
| F50 | ..... | Not Used |
| F51 | 60 | ABS Control Module |
| F52 | 60 | Rear Window Defogger Relay, Courtesy Lamp Relay, Central Timer Module, Central Junction Box Fuses |
