Engine Mount: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the water pump pulley shield.
1. Detach the coolant expansion tank hose from the clip.
2. Remove the bolts.
3. Remove the shield.

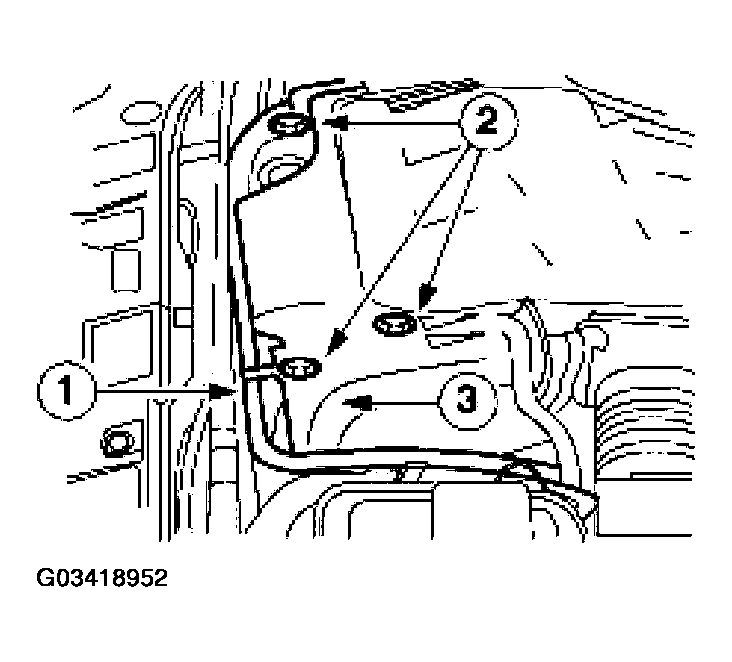

Fig 1: Removing Water Pump Pulley Shield (1 Of 2)
Courtesy of FORD MOTOR CO.

Fig 2: Removing Water Pump Pulley Shield (2 Of 2)
Courtesy of FORD MOTOR CO.

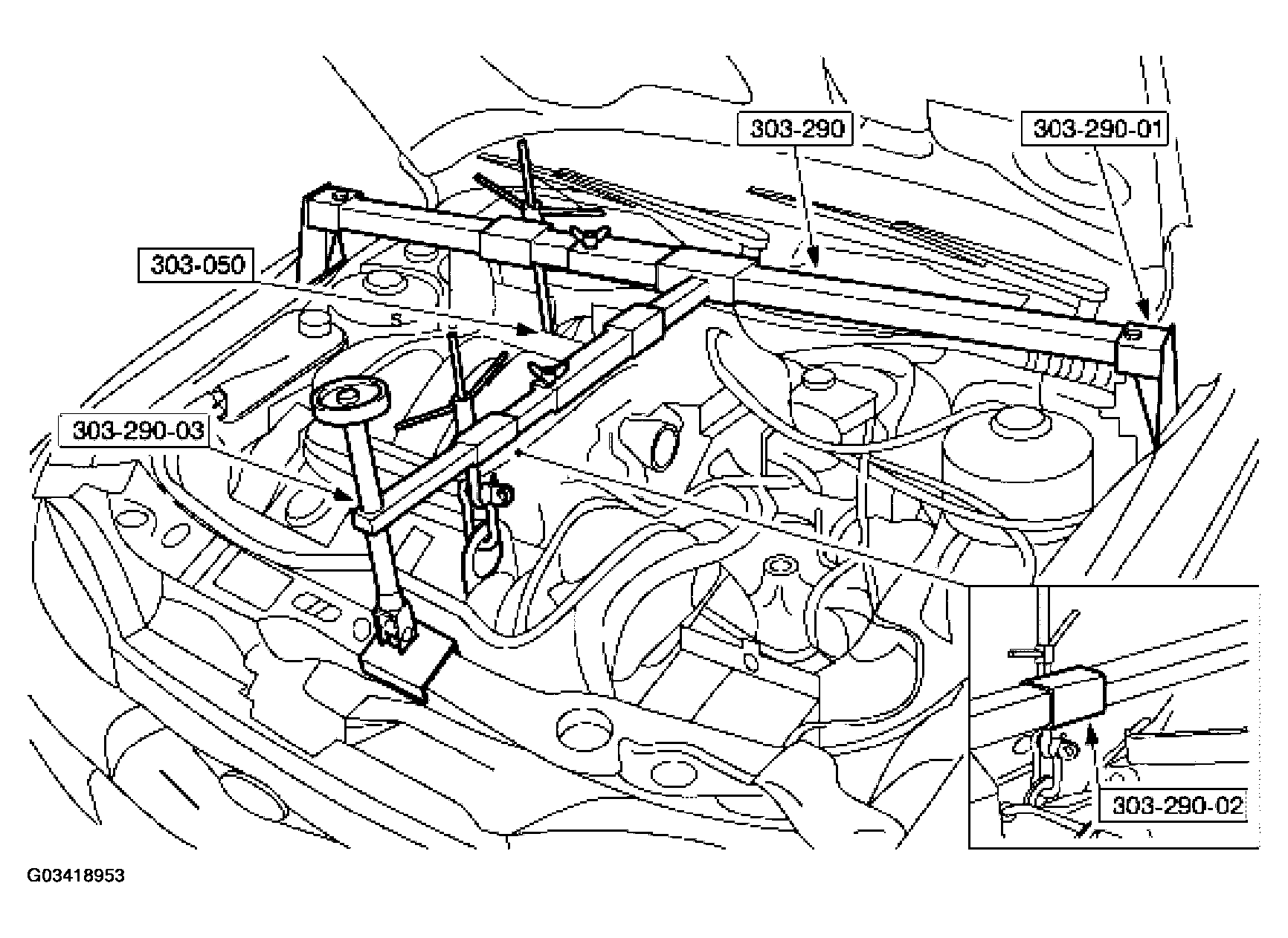

Install the special tools.
Remove the ignition wires and retainer from the upper front engine support bracket and position it to one side.

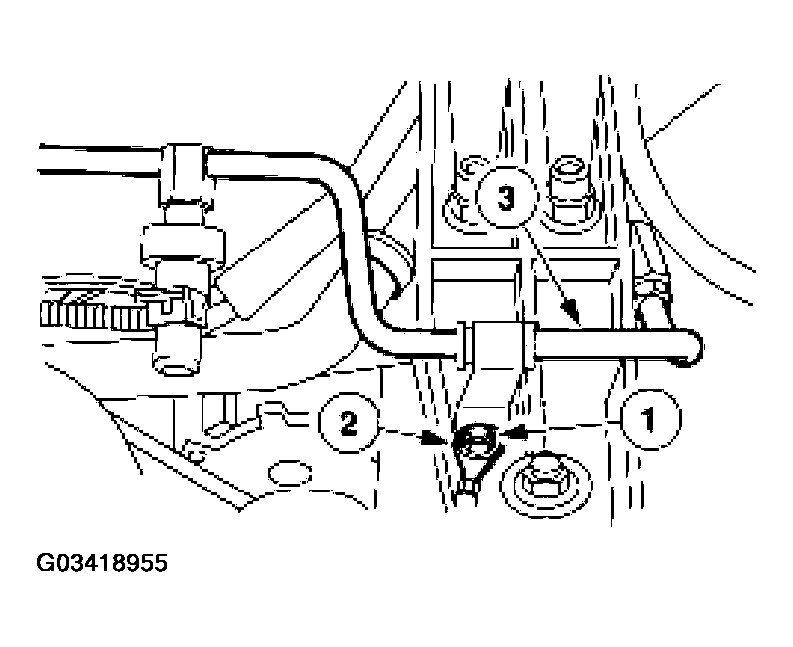

Fig 3: Removing Ignition Wires
Courtesy of FORD MOTOR CO.

CAUTION: Do not allow power steering fluid to come into contact with the drive belt. Damage to the belt can occur.

NOTE: Install new self-locking nuts.

NOTE: Mark on the engine support bracket the position of the nuts.

Remove the upper front engine support bracket.
1. Remove and discard the nuts.
2. Remove the upper front engine support bracket.

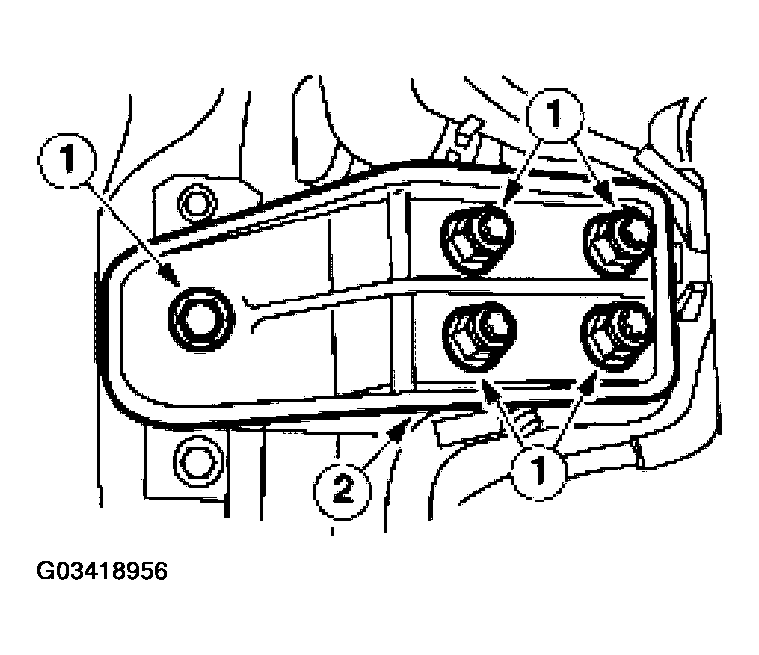

  Fig 5: Removing Upper Front Engine Support Bracket
  Courtesy of FORD MOTOR CO.
Remove the bolts and position the radiator coolant expansion tank to one side.

Fig 6: Removing Bolts And Positioning Radiator Coolant Expansion Tank
Courtesy of FORD MOTOR CO.
Remove the three bolts and remove the upper front engine support insulator.

Fig 7: Removing Upper Front Engine Support Insulator

Courtesy of FORD MOTOR CO.
