Engine Mount: Installation

WARNING: This page is about a different variant/trim than selected.
    CAUTION: If the upper front engine support insulator, front subframe, or the front engine support bracket has been removed, the engine and transaxle position must be realigned to the front subframe. Failure to realign the engine and transaxle can result in excessive driveline vibration.
  1. Make sure correct alignment.
  2. Raise and support the vehicle.
  3. Remove the bolts, the through bolt and remove the left-hand front engine support insulator.

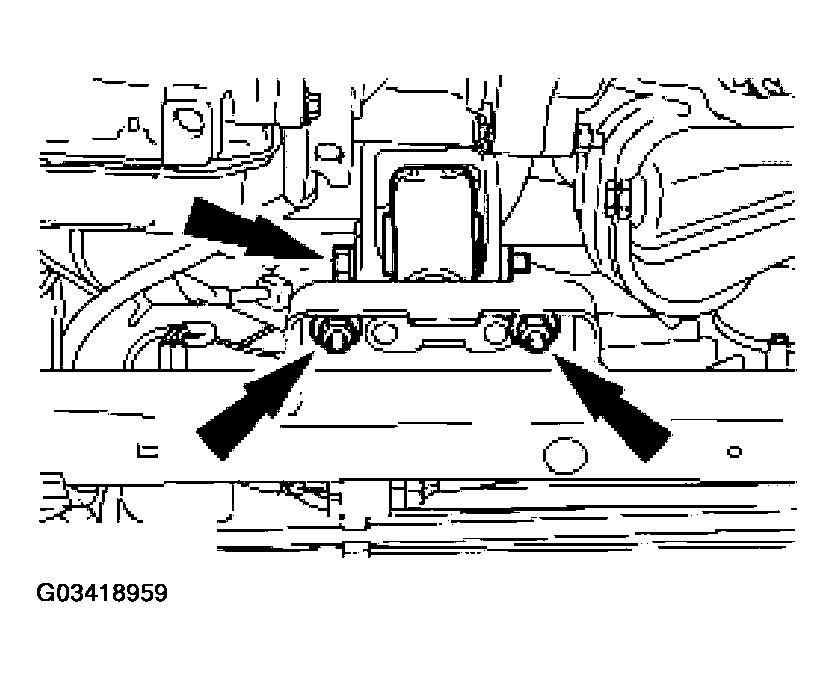

    Fig 1: Removing Left-Hand Front Engine Support Insulator
    G03418959Courtesy of FORD MOTOR CO.
  4. Replace the left-hand engine support insulator with special tool.
    1. Install the special tool.
    2. Install the bolts.
    3. Install the through bolt and finger tighten.

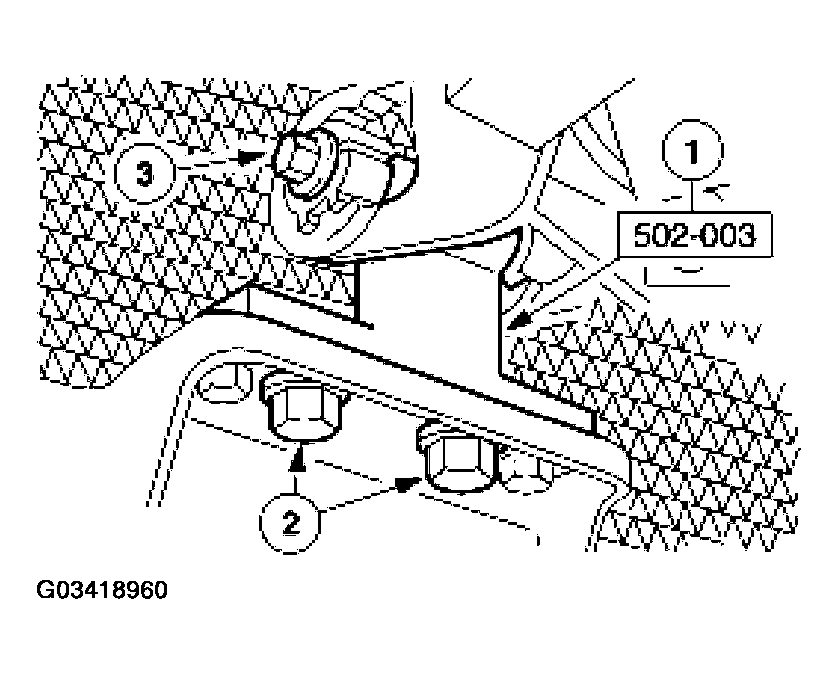

      Fig 2: Installing Special Tool
      G03418960Courtesy of FORD MOTOR CO.
  5. Remove the right-hand engine support insulator through bolt.
    • Loosen the mounting bolts, but do not remove.

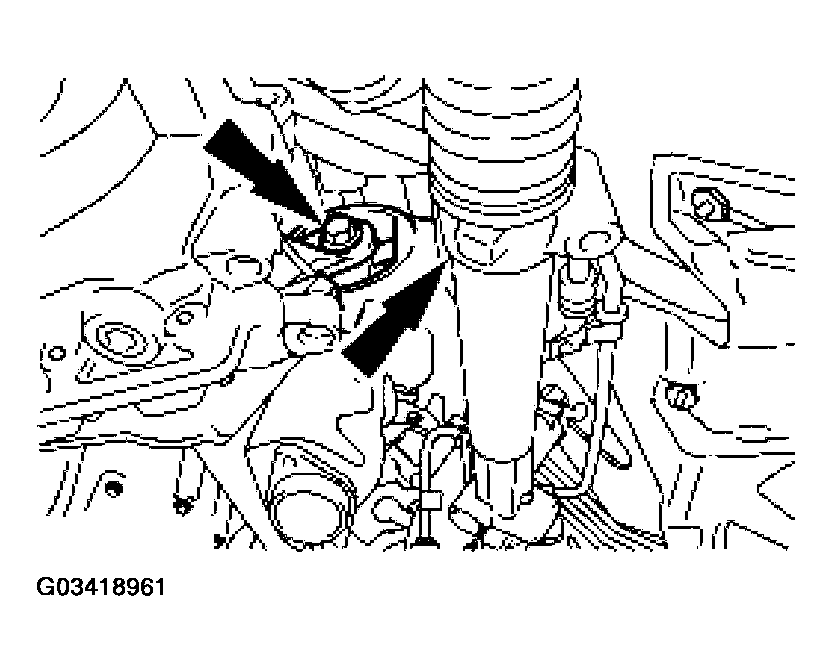

      Fig 3: Removing Right-Hand Engine Support Insulator
      G03418961Courtesy of FORD MOTOR CO.
  6. Lower the vehicle.
  7. Install the front engine support insulator.
    Fig 4: Installing Front Engine Support Insulator
    G03418962Courtesy of FORD MOTOR CO.
  8. Install the radiator coolant expansion tank.
    Fig 5: Installing Radiator Coolant Expansion Tank
    G03418963Courtesy of FORD MOTOR CO.
  9. NOTE: New self-locking nuts must be installed.
    NOTE: Make sure that the new nuts are aligned with the marks on the engine support bracket.

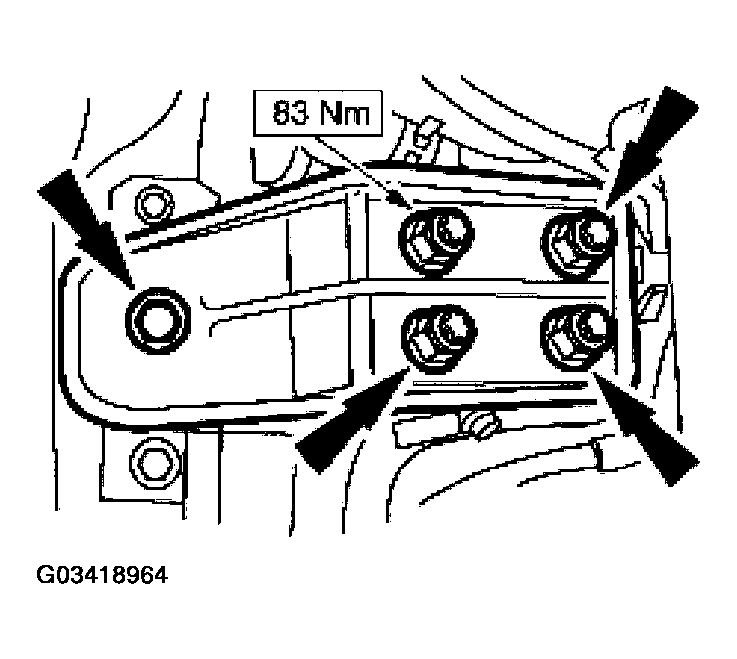

    Fig 6: Installing Upper Front Engine Support Bracket
    G03418964Courtesy of FORD MOTOR CO.
  10. Install the upper front engine support bracket.
  11. Remove the three bar engine support and universal lifting eye.
  12. Raise and support the vehicle.
  13. NOTE: Verify that the right-hand engine support insulator is centered in the transaxle bracket and in perfect front-to-rear alignment before tightening the through bolt or the mounting bolts.
  14. Install the right-hand engine support insulator bolts.
    • Install the insulator through bolt.
    • Install the insulator mounting bolts.

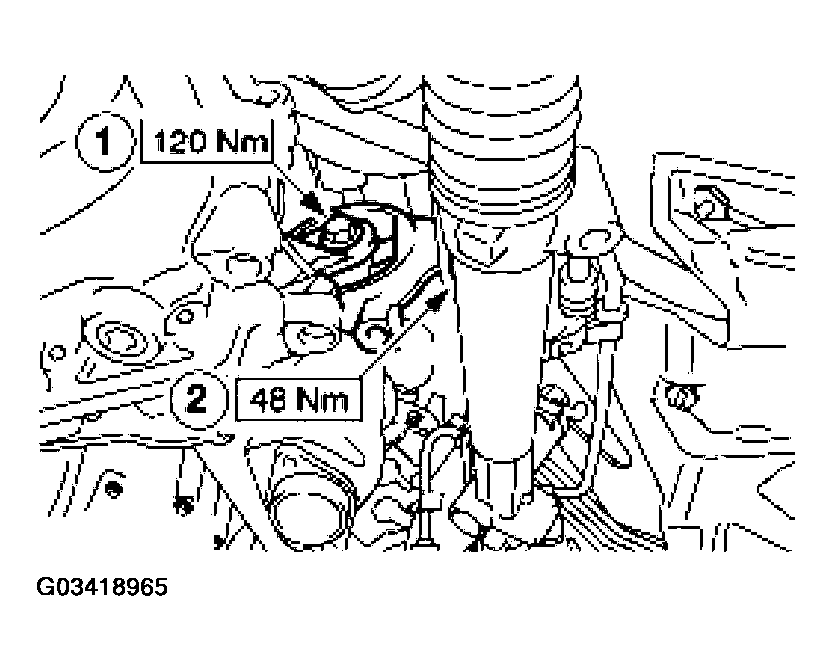

      Fig 7: Installing Right-Hand Engine Support Insulator
      G03418965Courtesy of FORD MOTOR CO.
  15. NOTE: Verify that the left-hand engine support insulator is centered in the transaxle bracket and in perfect front-to-rear alignment before tightening the through bolt.
  16. Replace the powertrain alignment gauge with the left-hand engine support insulator.
    1. Install the through bolt.
    2. Install the bolts.

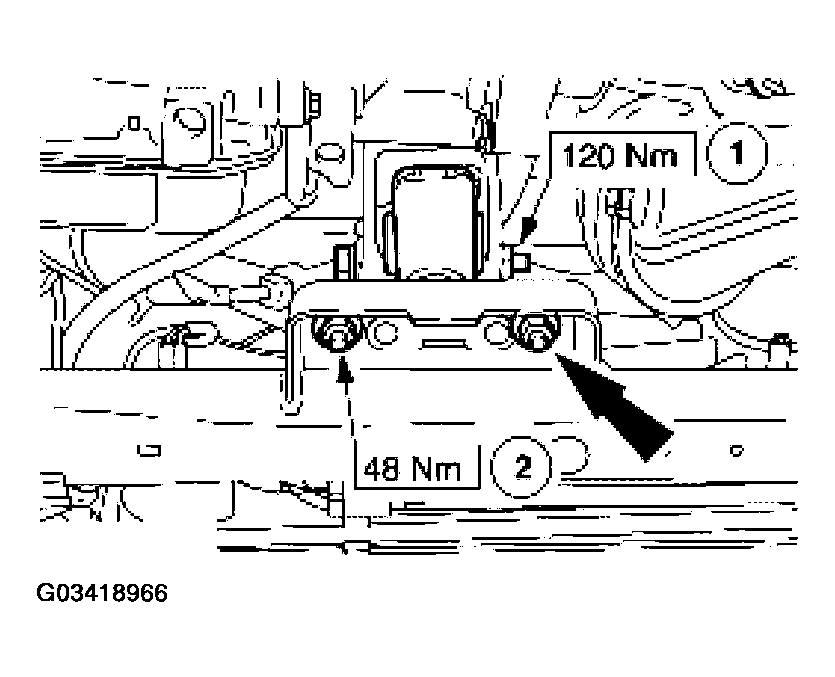

      Fig 8: Installing Left-Hand Engine Support Insulator
      G03418966Courtesy of FORD MOTOR CO.
  17. Lower the vehicle.
  18. Install the power steering pressure line bracket.
    1. Position the power steering pressure line and bracket.
    2. Install the ground strap.
    3. Install the bolt.
      Fig 9: Installing Power Steering Pressure Line Bracket
      G03418967Courtesy of FORD MOTOR CO.
  19. Install the ignition wires and retainer onto the upper front engine support bracket studs.
    Fig 10: Installing Ignition Wires And Retainer Onto Upper Front Engine
    G03418968Courtesy of FORD MOTOR CO.
  20. Install the water pump pulley shield.
    1. Install the shield.
    2. Install the bolts.
    3. Attach the coolant expansion tank hose to the bracket.

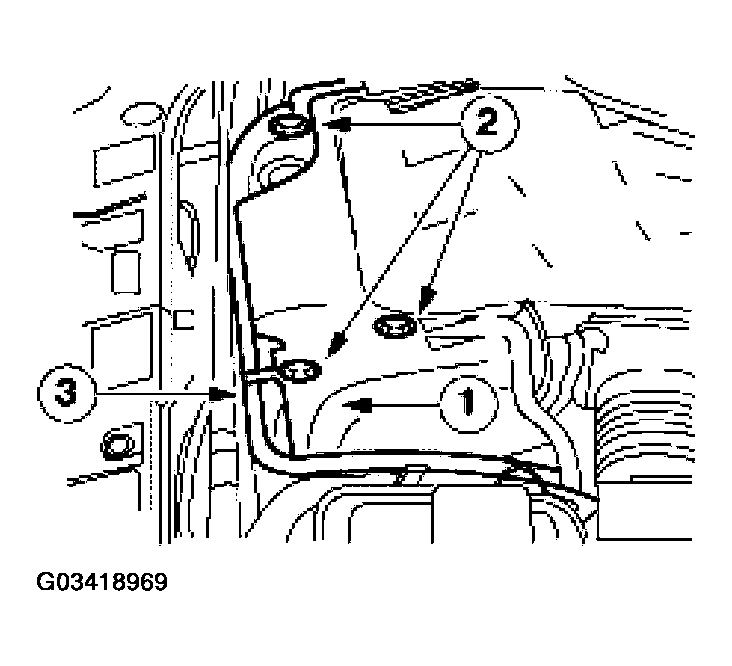

      Fig 11: Installing Water Pump Pulley Shield
      G03418969Courtesy of FORD MOTOR CO.
  21. Fill the power steering system. .
