Removal and Installation
WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

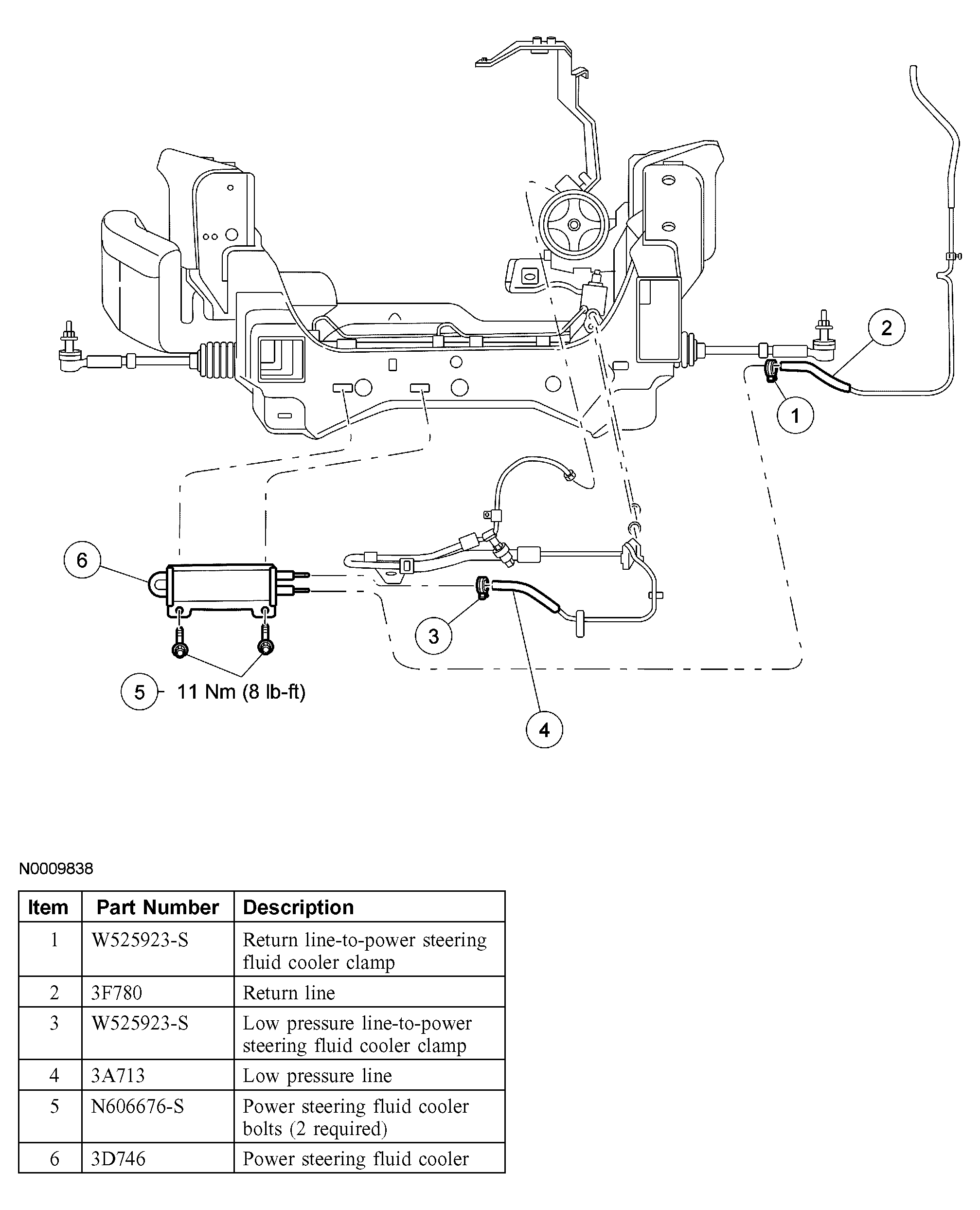

- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Release the clamp and disconnect the return line from the power steering fluid cooler.
- Release the clamp and disconnect the low pressure line from the power steering fluid cooler.
- Remove the 2 bolts and the power steering fluid cooler.
- To install, tighten to 11 Nm (8 lb-ft).
- To install, reverse the removal procedure.
- Fill the power steering system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
