Front End Accessory Drive (FEAD) - Exploded View, 4.6L (2V) and 5.4L (3V)

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: 4.6L (2V) engine shown, 5.4L (3V) engine similar.

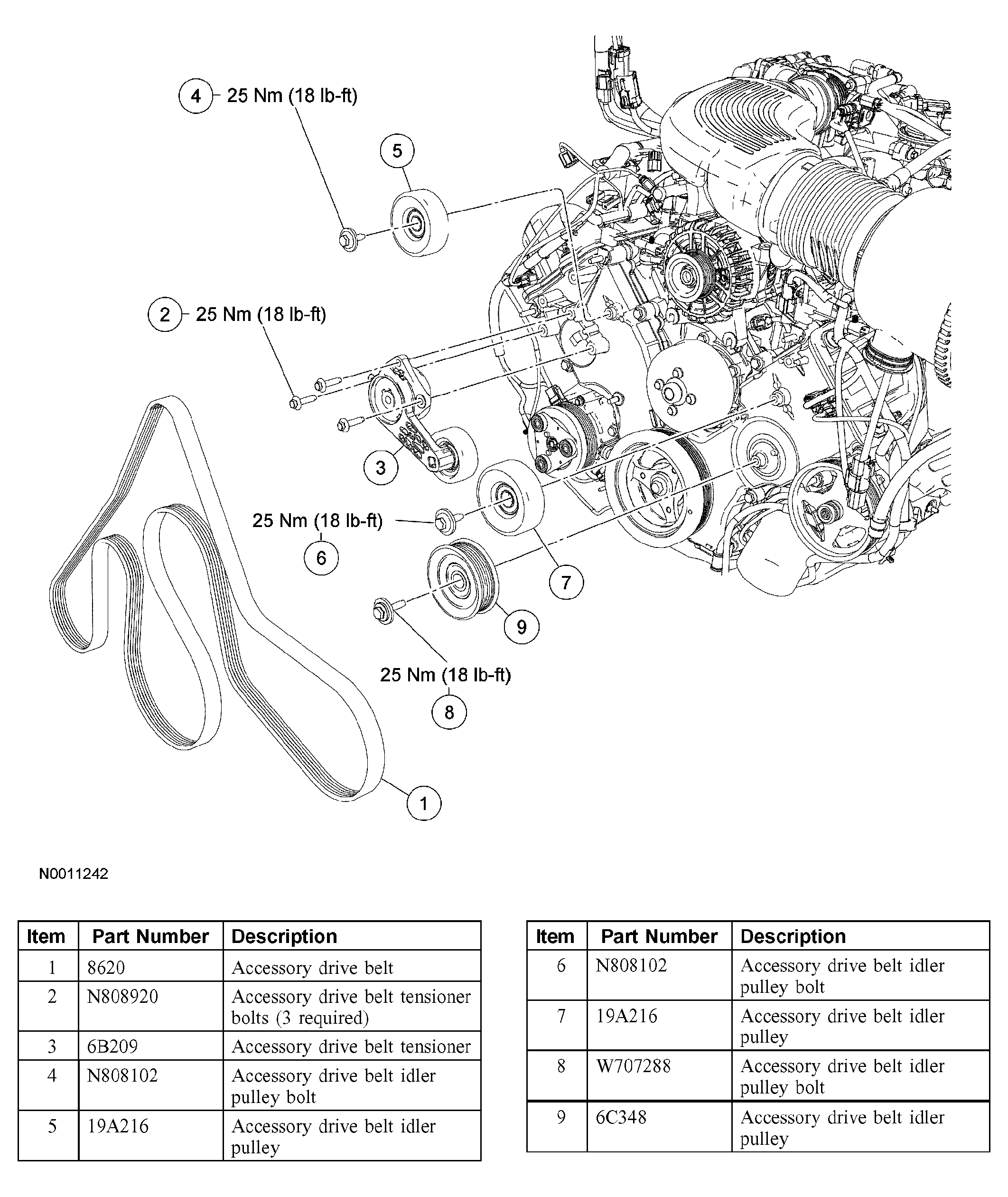

Fig 1: Exploded View Of Front End Accessory Drive - 4.6L (2V) And 5.4L (3V)

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
