Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

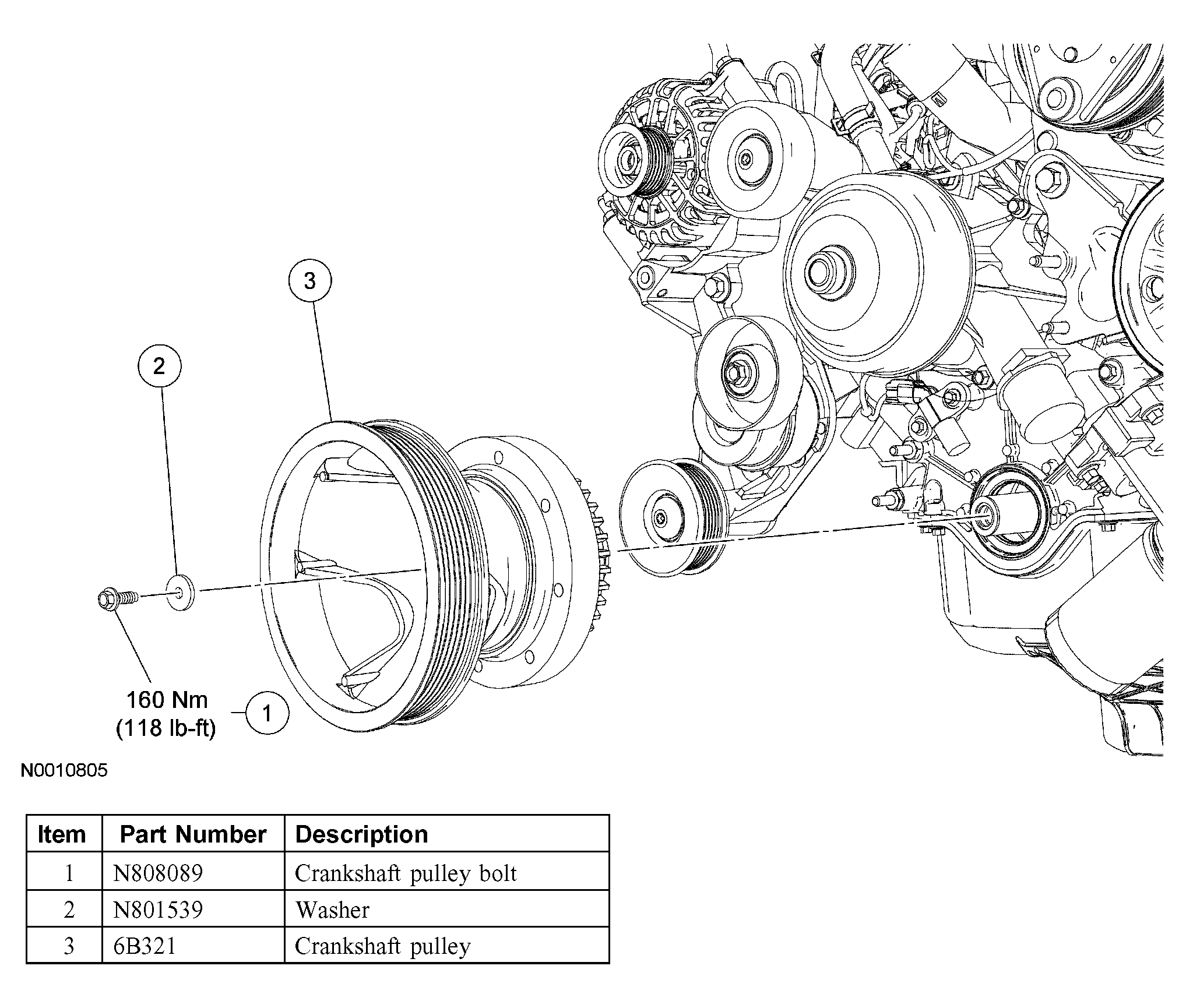

Fig 1: Identifying Crankshaft Pulley
G03962002Courtesy of FORD MOTOR CO.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
  3. Remove the fan blade assembly. For additional information, refer to ENGINE COOLING .
  4. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  5. Using the special tool to prevent the crankshaft rotation, remove the crankshaft pulley bolt and washer.
    Fig 2: Removing Crankshaft Pulley Bolt And Washer
    G03962003Courtesy of FORD MOTOR CO.
  6. Using the special tools, remove the crankshaft pulley.
    Fig 3: Removing Crankshaft Pulley
    G03962004Courtesy of FORD MOTOR CO.
