Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

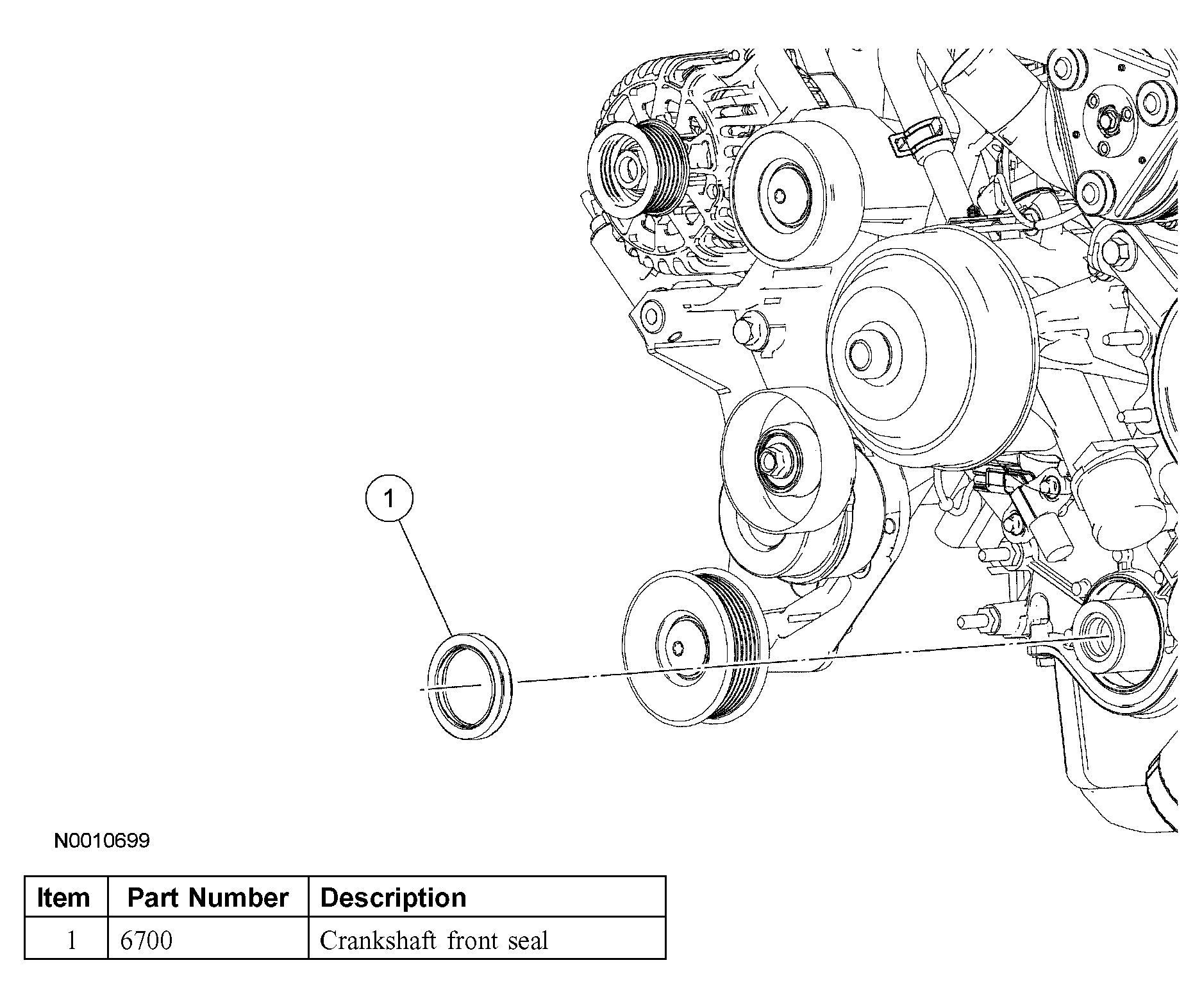

    Fig 1: Identifying Crankshaft Front Seal
    G03962010Courtesy of FORD MOTOR CO.
  1. Remove the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
  2. Using the special tool, remove the crankshaft front seal. Discard the crankshaft front seal.
    Fig 2: Removing Crankshaft Front Seal
    G03962011Courtesy of FORD MOTOR CO.
