Mode Select Switch (MSS)

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mode select switch (MSS) from the instrument panel.
    • Pry the switch out of the instrument panel.
    • Disconnect the harness connector.
    • Remove the MSS switch.

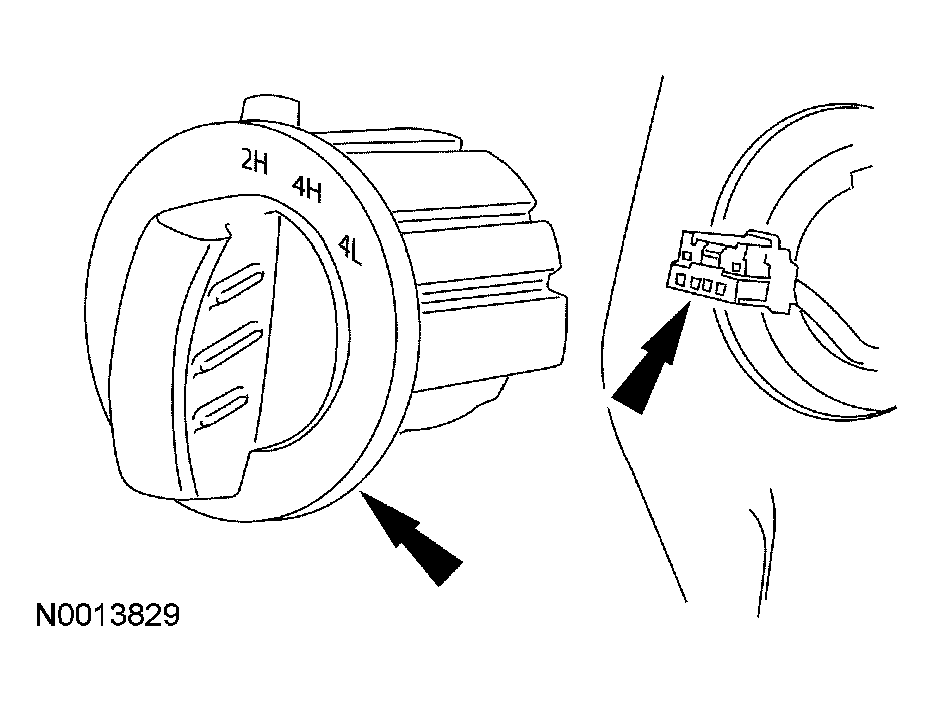

    Fig 1: Removing Mode Select Switch (MSS) From Instrument Panel
    G03964822Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
