Mode Select Switch (MSS) C284

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

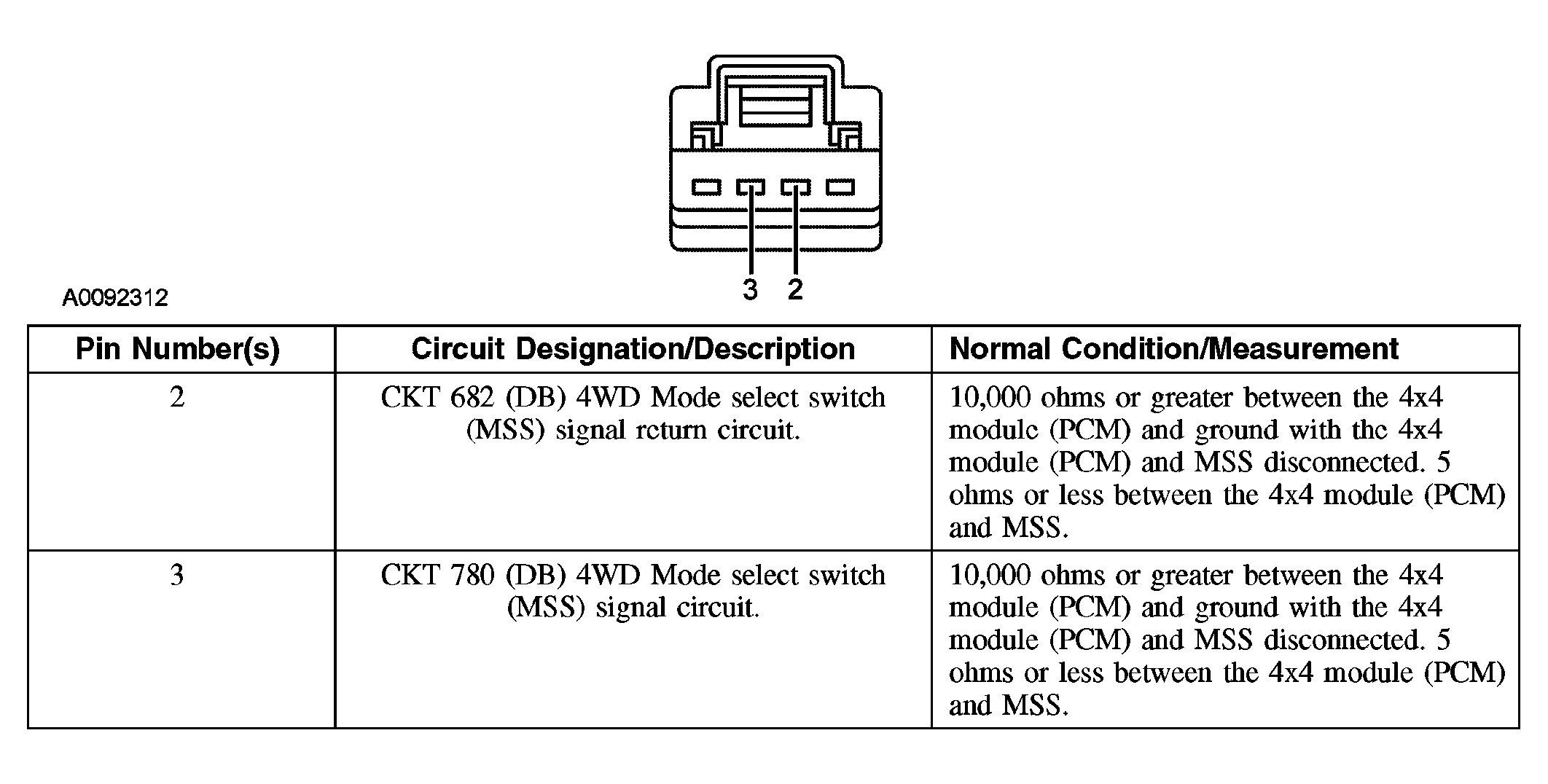

Fig 1: Identifying Connector Terminals Mode Select Switch (MSS) C284
G03964789Courtesy of FORD MOTOR CO.
